Moisture, dust, and vibration silently degrade unprotected circuit boards, turning a working device into a paperweight. A properly applied protective layer stops corrosion, prevents short circuits, and extends the life of your electronics dramatically.
I’m Mohammad Maruf — the founder and writer behind WellFizz. I’ve spent countless hours analyzing the chemical formulations, dielectric ratings, and application methods of the best conformal coating options to find the ones that deliver real, measurable protection.
This guide breaks down the top-tier sprays and liquids that form a resilient, insulating shield over your PCBs, whether you need military-grade waterproofing or a fast-drying hobbyist solution.
How To Choose The Best Conformal Coating
The right conformal coating depends on the operating environment, the required dielectric protection, and whether you need easy rework for repairs. Consider these three factors before buying.
Chemical Base: Silicone vs. Polyurethane vs. Acrylic
Silicone coatings handle extreme temperatures up to 200°C and stay flexible, making them ideal for environments with thermal cycling. Polyurethane offers superior chemical and abrasion resistance, but requires heat curing for best results. Acrylic coatings are the easiest to rework and reapply, but offer less solvent resistance than the other two.
Dielectric Strength and Insulation
Dielectric strength measures how much voltage the coating can withstand before breaking down. For high-voltage circuits, look for ratings above 3,000 volts per mil. This spec is critical for preventing arcing between closely spaced traces on a PCB.
Application Method and Cure Time
Aerosol sprays offer fast, even coverage for small to medium boards. Brush-on liquids are better for precise application but take longer to cure. Full curing ranges from 15 minutes to 24 hours depending on the formulation, so plan your drying time accordingly.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| MG Chemicals 4223F-312G | Polyurethane | Chemical resistance | UL 94 V-0, no xylene | Amazon |
| ElectroniCoat | Rubber Spray | High-voltage protection | 9,500V dielectric strength | Amazon |
| MG Chemicals 422B-340G | Silicone | High-temperature boards | 200°C max service temp | Amazon |
| 1DFAUL 200ml | Silicone Liquid | Hobbyist electronics | Self-leveling, 24hr cure | Amazon |
| DUCKY PRODUCTS Electro-Seal | Rubber Spray | Submersion protection | 4 mil coats, 300V rating | Amazon |
In‑Depth Reviews
1. MG Chemicals 4223F-312G Premium Polyurethane Conformal Coating
The MG Chemicals 4223F is a heat-curing, one-part polyurethane conformal coating that delivers outstanding scratch and chemical resistance. This aerosol formulation meets UL 94 V-0 flammability standards and is free of xylene and other hazardous air pollutants, making it a safer choice for workshop use. Users report that it forms a thin, durable barrier after curing at 100°C for just minutes, and one test showed zero corrosion after 24 hours submerged in aggressive piranha solution.
This coating excels in chemically challenging environments where acrylics would fail. It protects against moisture, dirt, thermal shock, and high-voltage arcing, allowing tighter trace spacing on boards. Application is straightforward — moderate coats dry to the touch in a few hours at room temperature, but the heat cure accelerates the process significantly for production work.
The main drawback is the aerosol cap, which some users found prone to clogging after several uses. Cleaning the nozzle thoroughly after each application can prevent this issue. For professional-grade protection in harsh industrial or outdoor settings, this polyurethane coating is a top-tier choice that justifies its mid-range price.
Why it’s great
- UL 94 V-0 rated for fire safety
- Exceptional chemical and scratch resistance
- Fast cure at 100°C for rapid assembly
Good to know
- Cap may clog if not cleaned after each use
- Requires heat curing for optimal performance
2. MG Chemicals 422B-340G Silicone Conformal Coating
The MG Chemicals 422B silicone conformal coating is engineered for extreme environments, with a maximum constant service temperature of 200°C. It holds UL 94 V-0 certification and fluoresces under UV-A light, making inspection simple. Users have successfully restored 24-year-old PCBs by coating them after removing old acrylic layers, applying four moderate coats from different angles and drying overnight to near-new condition.
This aerosol delivers excellent corrosion resistance, verified in salt spray testing with no oxidation or coating damage. It is validated for selective robotic coating equipment from PVA and Nordson ASYMTEK, confirming its consistency for professional use. The coating remains flexible after curing, accommodating thermal expansion without cracking.
Rework is possible using MG Chemicals’ liquid or gel stripper formulations, though it requires more effort than acrylic coatings. The price point places it in the premium tier, but for high-temperature or high-reliability applications such as automotive engine control boards or aerospace sensors, the investment is fully justified.
Why it’s great
- Withstands constant 200°C operating temperatures
- Fluoresces under UV for easy QC inspection
- Validated for robotic spray coating equipment
Good to know
- Higher cost than acrylic alternatives
- Rework requires specialized solvent stripper

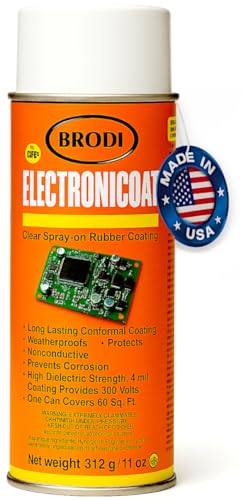

3. ElectroniCoat Conformal Coating Spray
ElectroniCoat offers military-grade waterproofing with an impressive dielectric strength of 9,500 volts, making it ideal for high-voltage circuit protection. This clear rubber sealant dries to a transparent finish that allows visual inspection of components, though some users note it turns slightly opaque. The spray bonds securely to metals, plastics, and insulation materials, forming a permanent barrier that resists cracking and peeling.
Automotive enthusiasts have successfully used this coating to protect ECM boards in older vehicles, where moisture constantly threatens sensitive electronics. One user sprayed multiple layers on a fuel-injected Bronco’s circuit board, ensuring reliable operation in wet weather. The 15-minute drying time is a significant advantage for quick-turnaround repairs.
The main consideration is that the coating can appear milky rather than perfectly clear on some surfaces. It also demands careful masking of connectors and pins to avoid unwanted insulation. For anyone working with high-voltage gear, marine electronics, or industrial controls, the dielectric performance here is hard to match.
Why it’s great
- 9,500V dielectric strength for high-voltage safety
- Dries in 15 minutes for fast application
- Bonds to a wide range of materials including metal and plastic
Good to know
- Dries slightly opaque, not perfectly transparent
- Requires careful masking of connectors and pins
4. DUCKY PRODUCTS Electro-Seal
DUCKY Electro-Seal is a spray-on rubber coating that forms a flexible, permanent barrier against moisture and corrosion. When applied in four coats at 1 mil each, it withstands 300 volts and can be used on electrical panels, battery terminals, wire connections, and even nuts and bolts. One user successfully waterproofed an ATV LCD display board by applying four coats to an Arduino Mega and submerging it fully while the LEDs stayed on.
The spray dries quickly — users report it is ready in minutes — and a single 11 oz can covers approximately 60 square feet. However, multiple reviews note that the dried finish is milky white rather than transparent, which can complicate visual inspection of wires. The product works best when applied to clean, alcohol-wiped surfaces.
This is a strong mid-range option for DIY enthusiasts and professionals who need reliable submersion protection without a high price. The rubberized coating bonds tightly and stays flexible, making it suitable for boards in vibrating environments. Just be aware that it is not clear and that connector pins should be protected with dielectric grease during application.
Why it’s great
- Proven waterproof performance under full submersion
- Covers 60 sq ft per 11 oz can for large projects
- Dries in minutes for quick turnaround
Good to know
- Dries milky white, not clear
- Must avoid coating connector pins
5. 1DFAUL 200ml Silicone Conformal Coating
The 1DFAUL silicone conformal coating is a budget-friendly liquid that dries perfectly clear and self-levels for easy application. With a honey-like consistency, it spreads smoothly over circuit boards and forms a flexible, invisible protective layer after curing. Users have used it to waterproof garage door opener electronics and seal repaired USB cables, noting that it dries rubbery without becoming sticky.
The coating resists moisture, dust, and corrosion, and has good adhesion to most metals and non-metals. It requires 5 to 8 hours for initial stage curing, with full curing at 24 hours. The included two 100ml tubes and spatulas make application straightforward for hobbyists. The main criticism is the runny consistency, which demands careful layering to build sufficient thickness.
For entry-level users or hobbyists who want affordable protection without sacrificing clarity, this is an excellent choice. The clear finish allows easy inspection of solder joints and component labels. Just be prepared for a longer cure time and a strong smell during application.
Why it’s great
- Dries perfectly clear for easy component inspection
- Self-leveling formula for even coverage
- Good adhesion to most metal and non-metal surfaces
Good to know
- Runny consistency requires careful layered application
- Full cure takes 24 hours
FAQ
Can I solder through a conformal coating for rework?
How long does it take for conformal coating to fully cure?
Does conformal coating protect against full submersion?
Final Thoughts: The Verdict
For most users, the best conformal coating winner is the MG Chemicals 4223F because it combines UL 94 V-0 safety certification, outstanding chemical resistance, and a fast heat-cure cycle that works for both professionals and serious hobbyists. If you need extreme high-temperature performance up to 200°C, grab the MG Chemicals 422B silicone coating. And for an affordable entry-level solution that dries perfectly clear, nothing beats the 1DFAUL silicone liquid.
