Drilling into fiberglass is a high-stakes operation against a material that hides its weakness behind a smooth gel coat. Apply too much pressure or use the wrong edge geometry, and the result is a cracked surface, chipped gel coat, or a hole that looks like it was chewed out by a rodent. The specific challenge lies in fiberglass’s layered structure: a hard, brittle gel coat over a softer, abrasive fiber matrix. A standard twist drill bit catches the glass fibers, causing them to splinter and delaminate before you even reach full depth.
I’m Mohammad Maruf — the founder and writer behind WellFizz. I spend countless hours cross-referencing material hardness ratings, shank designs, and edge geometries to isolate the precise specs that matter for specific substrates like fiberglass, gel coat, and epoxy composites.
Based on my analysis of edge profiles, tip geometry, and heat management features, the list below represents the current top options for achieving clean, chip-free holes. This guide covers the essential features and top performers to help you find the best drill bit for fiberglass for your next repair, build, or marine project.
How To Choose The Best Drill Bit For Fiberglass
The secret to a clean hole in fiberglass is all about cutting the glass fibers cleanly rather than pulling or tearing them. This requires a bit with a sharp, abrasive edge and a geometry that prevents the tool from grabbing the material. Pay close attention to three core factors before you buy.
Tip Geometry: The Anti-Wander Factor
A split-point or brad-point tip is critical for fiberglass. A standard chisel-point tip will skate across the smooth gel coat, causing scratches and making accurate placement nearly impossible. A sharp, centered tip, or a pilot bit, locks the bit into position and prevents that first catastrophic slip that ruins the surface.
Cutting Edge Material: Carbide vs. Diamond
Fiberglass is highly abrasive and will quickly dull standard high-speed steel (HSS) bits. For any serious project, you need a bit tipped with carbide or coated with industrial diamond. Carbide-tipped bits offer a great balance of edge retention and toughness, while diamond-coated bits provide superior abrasion resistance for drilling many holes or through thick laminate.
Heat Management: How to Avoid Melting the Matrix
Friction from drilling generates heat that can melt the resin matrix holding the glass fibers together, leading to a gummy mess or a burned hole. Bits with internal cooling wax or flutes designed for effective dust removal help manage this. For deeper holes, using water as a lubricant or frequently withdrawing the bit to clear chips is essential to keep temperatures down.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| BGTEC 10pc Set | Premium Diamond | Multi-hole runs in fiberglass & tile | Vacuum brazed diamond, 6mm | Amazon |
| Diablo SPEEDemon | Premium Carbide | Fast drilling in thick fiberglass laminate | Carbide tip, U-Flute design | Amazon |
| BGTEC 5pc Set | Mid-Range Diamond | Precision work with pilot bit | Diamond tip, hex shank, 6mm | Amazon |
| DAYDOOR Hole Saw | Mid-Range Diamond | Larger diameter holes in gel coat | Diamond coating, 19mm, pilot bit | Amazon |
| DKIBBITH Core Bit | Budget Diamond | Dry drilling, small-diameter holes | Diamond core, 6mm, 5/8-11 thread | Amazon |
In‑Depth Reviews
1. BGTEC Dry Diamond Drill Bit Set (10-Piece)
This 10-piece set from BGTEC is the premium workhorse for anyone planning a multi-hole project on fiberglass or gel coat. The vacuum brazed diamond technology bonds industrial diamond grit directly to the steel body, creating a cutting surface that aggressively abrades through the hard gel coat and underlying glass fibers without dulling. The 6mm diameter is a standard size for marine and automotive hardware, making this set incredibly practical for the long haul.
Each bit includes a wax core for internal cooling, which is a tangible benefit when drilling fiberglass. The wax melts and dissipates the heat generated by friction, reducing the risk of melting the resin matrix. The side holes and grooves are designed to expel stone chips, preventing the bit from clogging and allowing it to maintain a clean cut through thicker sections of laminate.
While the round shank works with standard keyed and keyless chucks, you must use a pilot hole to prevent the bit from walking on the smooth gel coat. Users report getting five or more clean holes per bit on hard porcelain tile, which suggests excellent longevity on the less abrasive surface of fiberglass. The set includes ten individual bits, providing a generous supply for projects that demand consistent, splinter-free results.
Why it’s great
- 10-bit set provides excellent value for large or multiple projects
- Vacuum brazed diamond offers superior abrasion resistance on fiberglass
- Wax core and side grooves effectively manage heat and debris
Good to know
- Round shank can slip in some chucks without a pilot hole
- Dry drilling only for brief periods; water immersion extends bit life
2. Diablo SPEEDemon Red Granite Carbide Tipped Hammer Drill Bit
The Diablo SPEEDemon is a premium carbide-tipped bit built for aggressive cutting speed in hard materials, including thick fiberglass laminate and gel coat. Its U-flute design is optimized for dust removal, pulling debris away from the cutting edge faster than a standard spiral flute. This prevents the bit from clogging with glass dust, which keeps the carbide tip cooler and extends its operational lifespan significantly.
Diablo’s carbide tip is engineered to withstand high impact and heat, making it ideal for drilling through fiberglass that is bonded to wood or other core materials. The 1/4-inch diameter is a versatile size for pilot holes, latch installations, or electrical pass-throughs. The bit is stable and accurate, reducing the likelihood of the bit wandering on the surface, which is a common cause of gel coat damage.
This bit is designed for hammer or rotary drilling. When used on fiberglass, rotary mode is nearly always the better choice to avoid micro-fractures. The 5-pack gives you backup bits for the same price as a single specialty bit from a big-box store. The hex shank is compatible with both hammer drills and impact drivers, adding versatility to your tool use without adapter issues.
Why it’s great
- U-Flute design clears glass dust quickly, preventing overheating
- Carbide tip provides exceptional edge retention on abrasive fiberglass
- 5-pack offers great value for high-performance bits
Good to know
- Not ideal for very thin gel coat where hammer action could cause cracks
- Best used in rotary mode only for pure fiberglass applications
3. BGTEC Dry Diamond Drill Bit Set (5-Piece)
This 4+1 set from BGTEC gives you four vacuum-brazed diamond bits and one dedicated carbide pilot bit, all with a 1/4-inch hex shank for quick changes in an impact driver. The included cross-point carbide bit is the key feature here. You first use this hard, sharp bit to carefully score the gel coat and create a tiny, accurate divot. This prevents the softer diamond bit from skating on the surface and ruining the finish.
Each diamond bit has an internal wax core for cooling, which is vital for dry drilling on fiberglass. The recommended operational speed of 2000 to 5000 RPM accommodates a range of drill types, allowing you to calibrate your feed rate precisely. The hex shank eliminates the slippage worry common with round shanks, especially when used in a high torque impact driver or drill.
User feedback confirms that the pilot bit system works exceptionally well for precision tasks like mounting brackets or hardware in tiled showers and fiberglass boat components. The technique recommended involves starting at a 45-degree angle to cut a groove, then easing to 90 degrees. Frequent dipping in cold water helps maintain the integrity of both the bit and the material.
Why it’s great
- Included carbide pilot bit prevents walking on smooth gel coat
- Hex shank provides a secure, non-slip grip in all chucks
- Vacuum brazed diamond and wax core handle heat well
Good to know
- Pilot bit requires a separate and careful step before using diamond bits
- Water cooling is highly recommended to maintain bit longevity

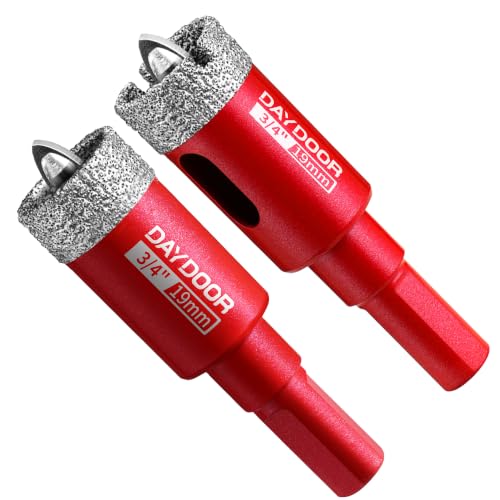

4. DAYDOOR 3/4″ Diamond Hole Saw Bits with Pilot Drill Bit
The DAYDOOR 3/4-inch diamond hole saw is the correct tool for the job when you need to cut a larger diameter hole in fiberglass or gel coat. A standard twist drill bit will grab and tear the material, but the hollow core design of this hole saw only cuts the perimeter, leaving a clean disc that can be popped out. The detachable pilot drill bit locks the saw in place, ensuring the cut starts exactly on your mark.
The body is constructed from high-carbon steel with a diamond coating applied via a vacuum brazing process. The U-shaped grooves in the side are designed to flush debris and dissipate heat, both of which are critical for preventing the gel coat from burning. The 3-flat, 3/8-inch shank provides a much more secure grip in the chuck than a round shank, reducing the chance of the saw slipping during the cut.
This set is ideal for installations like marine vents, hose through-hulls, or large cable pass-throughs in fiberglass panels. The two-bit set provides a backup for longer projects. User reviews consistently note the effectiveness of the pilot bit for preventing walk, and the recommendation to use a constant stream of water or a water-filled cup to keep the diamond edge cool during the cut is a common success tip.
Why it’s great
- Pilot bit ensures precise and wander-free start on gel coat
- U-shaped grooves effectively clear glass dust and reduce heat
- 3-flat shank provides a secure grip, reducing slippage risk
Good to know
- Limited to a single 3/4-inch diameter size
- Requires steady lubrication or water cooling for best results
5. DKIBBITH 1/4 Inch Dry Diamond Core Drill Bits Set
The DKIBBITH 1/4-inch diamond core bit is an entry-level budget option that still brings the essential features for fiberglass drilling. It uses a diamond-impregnated core with dense cooling wax inside, designed to absorb and dissipate heat during dry drilling. This is a critical feature at this price point, as it directly addresses the primary risk of resin melting during a long cut.
This kit includes two bits, giving you a spare if one wears out. The 5/8-11 thread is a notable feature, as it is designed for use with angle grinders. This makes it an excellent choice for grinding or shaping the edge of a hole in fiberglass, in addition to drilling new ones. The recommended user tip of starting at a 45-degree angle is a proven technique for creating initial grooves in the gel coat.
The customer feedback confirms that the bits perform commendably for the price, delivering clean cuts in porcelain tile and stone. When used on fiberglass, the same controlled technique applies. The main limitation is that the shank is designed for angle grinders, not standard drills, so you will need a compatible drill chuck adapter for conventional use. It is a solid, functional choice for a small project or a single repair.
Why it’s great
- Very affordable entry point for diamond core drilling technology
- Cooling wax core reduces heat-related damage
- 5/8-11 thread allows use with angle grinders for shaping
Good to know
- Shank designed for angle grinders, not standard drill chucks
- Wears faster than premium options; best for small, occasional jobs
FAQ
Can I use a standard HSS drill bit on fiberglass?
Why does my drill bit keep walking on the gel coat?
Should I use water when drilling fiberglass?
Final Thoughts: The Verdict
For most users, the best drill bit for fiberglass winner is the BGTEC 10-Piece Set because it combines professional-grade vacuum-brazed diamond construction with the sheer utility of a 10-bit pack, giving you the confidence to tackle large projects without wearing out a single bit. If you want the fastest possible cut in thick laminate, grab the Diablo SPEEDemon 5-Pack. And for precision work where a wandering start could ruin your finish, nothing beats the hex-shank BGTEC 5-Piece set with its dedicated pilot bit.
