Doors with glass panels or side lights are a glaring security weak spot. A standard single-cylinder deadbolt is vulnerable because an intruder can simply break the glass, reach inside, and turn the thumbturn. A double cylinder deadbolt eliminates that risk entirely by requiring a key on both the outside and inside — effectively neutralizing the broken-glass entry vector. It’s the single most effective residential hardware upgrade for any door where glass is present.
I’m Mohammad Maruf — the founder and writer behind WellFizz. I’ve spent countless hours analyzing hardware specifications, ANSI ratings, material compositions, and installation requirements across dozens of deadbolt models to isolate the few that deliver genuine forced-entry resistance without creating emergency egress hazards.
This guide focuses on the mechanical, material, and certification factors that separate a true security device from a cosmetic placeholder — helping you choose the right best double cylinder deadbolt for your specific door type, glass configuration, and local fire safety requirements.
How To Choose The Best Double Cylinder Deadbolt
Choosing a double cylinder deadbolt is not about brand preference — it’s about matching the lock’s mechanical design to your door’s specific vulnerabilities. The key interior cylinder introduces a life-safety tradeoff that must be managed with proper key storage and local code compliance. Beyond that, material quality, bolt construction, and certification grade determine whether the lock actually resists attack or merely delays it by seconds.
Bolt Construction and Attack Resistance
The deadbolt itself is the primary barrier. Look for laminated steel bolts with multiple plies — five-ply or eight-ply construction significantly increases resistance to sawing and prying. A concealed hardened steel pin running through the bolt core adds anti-saw protection because the pin will dull cutting blades on contact. Bolt length should be a minimum of one inch when fully extended for proper engagement with the strike plate.
Cylinder Material and Core Security
Solid brass cylinders resist corrosion, maintain smooth operation over years of daily use, and provide consistent threading for secure mounting. Zinc or aluminum cylinders are lighter and cheaper but wear faster and are more susceptible to drilling attacks. For anti-pick protection, look for cylinders with security pins (spool, serrated, or mushroom pins) — these complicate lock-picking attempts significantly. Schlage’s C keyway and Kwikset’s SmartKey are two common core types with distinct re-keying approaches.
ANSI/BHMA Grade Certification
ANSI/BHMA grades directly measure security, durability, and finish performance. Grade 1 is the highest residential and light commercial standard — these deadbolts withstand thousands of cycles and hundreds of pounds of force before failure. Grade 2 is sufficient for standard residential interior and exterior doors. Grade 3 is the minimum code baseline and should be avoided on any door with glass panels or direct exterior exposure. Every lock in this guide that holds a Grade 1 certification is noted explicitly.
Installation Compatibility: Backset and Door Thickness
The backset — the distance from the edge of the door to the center of the bore hole — is the single most common installation mismatch. Standard backsets are 2-3/8 inch or 2-3/4 inch for residential doors, but storefront and aluminum narrow-stile doors frequently use a 1-1/8 inch backset. Door thickness minimums range from 1-3/8 inch to 1-3/4 inch for most residential deadbolts. Always verify these two dimensions before purchasing to avoid returns.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Kwikset 985 SmartKey | Premium Residential | Glass-panel doors for rental properties | ANSI Grade 1, SmartKey re-key | Amazon |
| Schlage B62 N 626 | Premium Residential | Homes needing Grade 1 cert and anti-pick pins | ANSI Grade 1, 1-inch bolt, hardened steel pin | Amazon |
| AIsecure Mortise Lock | Commercial Storefront | Aluminum storefront doors with glass | 8-ply laminated bolt, solid brass cylinder | Amazon |
| Pacific Doorware Hookbolt | Commercial Storefront | Storefront hooklatch security | Heavy-duty steel lock body, zinc diecast cylinder | Amazon |
| Prime-Line Segal | Surface-Mount Security | Jimmy-proof upgrade for weak door frames | Solid bronze alloy, jimmy-proof design | Amazon |
| Schlage B62N505 | Mid-Range Residential | Standard wood door with existing prep holes | ANSI Grade 1, Snap ‘n’ Stay design | Amazon |
| Casmer Mortise Lock | Budget Storefront | Cost-effective replacement for aluminum doors | 5-ply laminated steel bolt, 1-1/8 inch backset | Amazon |
In‑Depth Reviews
1. Kwikset 985 Double Cylinder Deadbolt featuring SmartKey
The Kwikset 985 sits at the top of the lineup for a clear reason: it delivers ANSI/BHMA Grade 1 certification — the highest residential security rating — in a double cylinder format that works with any standard door prep. The SmartKey re-key technology means you can change the lock’s keying in under 30 seconds without removing the lock from the door, using only the provided reset tool. This feature alone saves a locksmith fee every time you need to match the lock to an existing key or re-key after moving into a new property.
The adjustable latch fits both 2-3/8 inch and 2-3/4 inch backsets, making it compatible with nearly all standard residential door preps without modification. The bolt itself is engineered with an anti-tap pin that prevents impressioning attacks — a sophisticated break-in method where an intruder inserts a blank key and taps it to leave marks from the lock pins. The polished brass finish resists tarnishing well, though some users report finish wear over extended periods in high-UV exposure.
One key consideration with this model is that the interior requires a key to operate, which creates a life-safety concern in emergencies. Keep a key stored nearby but out of reach from the door’s glass panels. For rental properties, the SmartKey feature is invaluable — you can re-key between tenants in seconds without replacing hardware. The 985 is also unbumpable, adding an extra layer of protection against one of the most common lock bypass techniques.
Why it’s great
- Grade 1 certified security with anti-tap pin protection
- SmartKey re-key locksmith-free in seconds
- Adjustable latch fits 2-3/8 and 2-3/4 inch backsets
- Resists bumping and impressioning attacks
Good to know
- Interior key required — plan emergency egress and key storage
- Polished brass finish may show wear over time
- Slightly higher price point than basic deadbolts
2. Schlage B62 N 626 Deadbolt, Keyed 2 Sides
The Schlage B62 in Satin Chrome is the residential gold standard for double cylinder deadbolts that require a key on both sides. It carries the ANSI/BHMA Grade 1 certification — the same grade used in light commercial applications — and includes a 1-inch deadbolt with a hardened steel spinning pin. That spinning pin is critical: when a saw blade contacts it, the pin rotates freely, preventing the saw from cutting through the bolt core. This lock is purpose-built for doors with glass panels where the interior thumbturn vulnerability is unacceptable.
Anti-drill plates and anti-pick security pins are integrated into the cylinder design, covering the three most common physical attack methods: drilling the cylinder core, picking the pins, and sawing the bolt. The strike reinforcer comes with 3-inch screws that anchor deep into the door frame, increasing kick-in resistance significantly compared to the 1-inch screws found on standard deadbolts. Installation is straightforward — self-aligning screw holes eliminate guesswork, and the universal latch slides into place without tools for both 2-3/8 inch and 2-3/4 inch backsets.
The satin chrome finish is clean, resists fingerprints, and matches most modern door hardware. One practical note: if you already own Schlage locks keyed to a specific keyway, the B62 is compatible with Schlage’s re-keying pins, allowing you to match it to your existing key set without swapping cylinders. This is a solid choice for homeowners who want Grade 1 protection and are willing to manage the interior key requirement carefully.
Why it’s great
- Grade 1 certified with hardened steel spinning pin
- 3-inch strike screws for kick-in resistance
- Anti-drill plates and anti-pick pins included
- Compatible with Schlage re-keying system
Good to know
- Bolts holding halves together may require 1/4 inch trim on 1-3/8 inch doors
- Interior key must be accessible but not reachable through glass
- App control mentioned in specs does not apply — this is purely mechanical

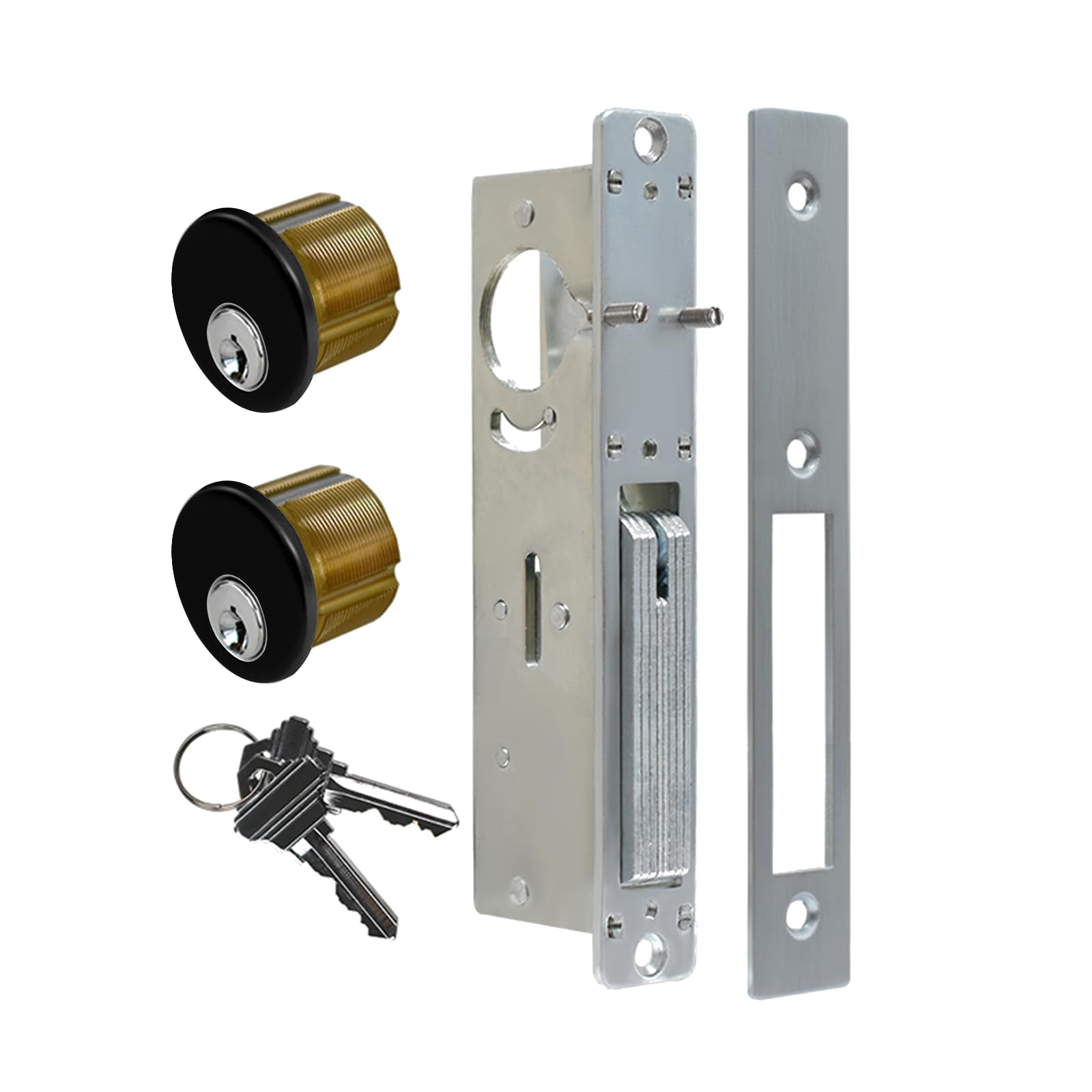

3. AIsecure Commercial Mortise Door Lock with Double Cylinder
The AIsecure mortise lock is built specifically for aluminum narrow-stile storefront doors — the kind commonly found in retail shops with large glass panels. The 1-1/8 inch backset design allows direct replacement of existing mortise locks without drilling new holes or modifying the door stile. The cylinder is machined from solid brass, which naturally resists corrosion and maintains smooth operation in high-humidity and outdoor-exposed storefront environments. The deadbolt itself uses eight-ply laminated steel with a concealed hardened steel pin running through the core.
This eight-ply construction is the standout feature for commercial use. Each ply adds a layer of saw resistance, and the hardened pin at the center will dull standard hacksaw blades on contact. The bolt extends 360 degrees of key turn to fully engage the strike, and the set includes two solid brass cylinders keyed alike, a faceplate, and all mounting hardware. The black finish is scratch-resistant and blends well with dark aluminum frames, though the lock is also available in silver from other manufacturers in this class.
One area to verify before purchase: the door must be between 1.37 and 1.77 inches thick for a proper fit. This lock is not designed for standard residential wood doors — it belongs on commercial aluminum or glass storefront doors. The US-based customer support is a practical advantage if sizing questions arise. A small number of customers have reported receiving returned items with missing screws, so inspect the package immediately upon receipt and contact support if anything is incomplete.
Why it’s great
- 8-ply laminated steel bolt with hardened pin stops saws
- Solid brass cylinders resist corrosion in storefront use
- Direct fit for 1-1/8 inch backset — no door modification
- Complete set includes two cylinders keyed alike
Good to know
- Only fits 1.37 to 1.77 inch thick doors (aluminum/glass)
- Not compatible with standard residential wood door prep
- Inspect package immediately — some returns have been reshipped
4. Pacific Doorware Keyed Hooklatch Deadbolt Set
Pacific Doorware’s hooklatch set is a specialty deadbolt that uses a hook-shaped bolt rather than a straight bolt. The hook design has a distinct advantage: when the door is closed and the bolt is thrown, the hook engages a notch in the strike plate, making it significantly harder to jimmy or shim compared to a straight bolt. This is the same bolt geometry used in many commercial-grade panic exit devices, and it adds an extra mechanical barrier against forced entry that a standard deadbolt cannot match.
The lock body is heavy-duty steel with a Duronotic Bronze finish that resists corrosion and fading in outdoor storefront conditions. The cylinders are solid zinc diecast with a thicker cam than standard budget cylinders, which reduces the risk of cam breakage under heavy use. This set includes the hookbolt lock, faceplate, thumbturn, lock cylinder with two keys, and all installation hardware — everything needed for a full replacement. The 1-1/8 inch backset is specific to narrow-stile aluminum doors, so verify your door’s backset before ordering.
Installation is DIY-friendly for anyone comfortable with basic tools — several customers report completing the swap in 1-2 hours using only a small flathead screwdriver. The hookbolt mechanism is noticeably heavier than a standard mortise lock, which contributes to the overall solid feel when locking. One limitation: the cylinder uses a standard keyway that may not match existing keys from other brands. Consider re-keying all locks on the same door to a single key for convenience. The Duronotic Bronze finish pairs well with bronze or dark aluminum door frames.
Why it’s great
- Hook-style bolt resists jimmying and shimming
- Heavy-duty steel body with thicker cam durability
- Complete set — no additional parts needed
- DIY install with basic tools in 1-2 hours
Good to know
- Requires 1-1/8 inch backset — measure before buying
- Zinc cylinder is less durable than solid brass over decades
- Standard keyway may not match existing keys
5. Prime-Line SE 15361 Segal Jimmy-Proof Deadbolt
This is not a conventional mortise or cylindrical deadbolt — it is a surface-mounted cross-bolt locking device with a purpose-built jimmy-proof design. The Prime-Line Segal deadbolt mounts directly to the surface of the door and uses a solid bronze alloy construction that weighs in at 2.8 pounds. The weight alone signals the material quality: this is dense, heavy bronze that absorbs impact and resists deformation under pry-bar attacks. The design prohibits forced entry by preventing the door frame from being spread apart — one of the most common methods used against standard deadbolts on weak wooden frames.
The lock includes both an angle strike and a flat strike, giving you flexibility for different frame configurations. The angle strike is typically used on in-swinging doors to help guide the bolt into the keep, while the flat strike works on out-swinging doors. The package also includes a rim cylinder, two keys (keyed different), a mounting plate, fasteners, and a tamper-resistant shutter guard. Installation requires a 1-3/8 inch hole saw for the cylinder bore, and the lock mounts to doors between 1-3/8 inch and 2-3/8 inch thick — covering both wood and metal residential doors.
One practical detail: the lock’s lip on the back may need slight filing to sit flush on steel doors, and the cylinder trim ring is designed to cover gaps left by the hole saw cut. This is a surface-mounted solution, so it works on doors where mortise or cylindrical boring is not possible — for example, metal security doors or doors with existing damage around the bore hole. The brushed brass finish is attractive but can be darkened with brass-black solution for a patina look. Not bump-proof, but the mechanical barrier it creates is far superior to a standard deadbolt on a weak frame.
Why it’s great
- Solid bronze alloy — heavy, dense, and deformation-resistant
- Surface mount works on wood and metal doors
- Includes both angle and flat strikes for door swing orientation
- 3-inch security screws for strike plate anchoring
Good to know
- Requires 1-3/8 inch hole saw for cylinder installation
- Not bump-proof — standard lock picking still possible
- Back lip may need filing for flush mount on steel doors
6. SCHLAGE B62N505 Deadbolt, Keyed 2 Sides, Bright Brass
The Schlage B62N505 in Bright Brass is the same Grade 1 core mechanism as the premium satin chrome version but at a more accessible price point due to the basic finish. It delivers the same 1-inch deadbolt, same hardened steel pin, same Snap ‘n’ Stay installation feature that holds the deadbolt in place while you drive screws — but in a bright brass finish that matches older traditional door hardware. This is the lock to choose when you need the highest residential security rating and the best dollar-per-grade ratio.
The deadbolt is keyed on both sides: a key operates the exterior, and a separate key operates the interior. This is critical for doors with glass because it eliminates the thumbturn reach-through vulnerability. The lock fits standard door prep — 2-3/8 inch or 2-3/4 inch backset with a 2-1/8 inch bore hole — so it drops into existing holes without modification. The brass construction provides adequate corrosion resistance for covered exterior use, though direct rain exposure may accelerate finish aging compared to the satin chrome version.
Customer feedback consistently highlights the easy re-keying with standard Schlage tools: professionals can re-pin this lock in about 15 minutes to match an existing Schlage key. The extra-long jamb screws included with the strike plate significantly improve kick-in resistance over the 3/4 inch screws that come with budget deadbolts. One installation note for 1-3/8 inch doors: the bolts holding the two housing halves together may be slightly too long, requiring a 1/4 inch trim with a rotary tool. This is a minor fix for the security upgrade this lock delivers at its price point.
Why it’s great
- ANSI Grade 1 security at a mid-range price
- Snap ‘n’ Stay design simplifies one-person installation
- Rekeyable with standard Schlage tools and pins
- Extra-long jamb screws for reinforced kick-in resistance
Good to know
- Bright brass finish may tarnish faster in direct weather exposure
- Bolts may need trimming for 1-3/8 inch thin doors
- Two keys required for both sides — plan emergency key storage
7. Casmer Storefront Door Mortise Lock Deadbolt
The Casmer mortise lock is the entry-level option for aluminum storefront doors that need a functional double cylinder deadbolt without the commercial-grade price tag. The lock body houses a five-ply laminated steel bolt with a concealed hardened steel pin — the same anti-saw concept found in premium locks, executed at a lower material grade. The bolt extends with a 360-degree key turn and retracts fully, providing standard deadbolt functionality for single-leaf storefront doors with 1-1/8 inch backset.
The set includes the deadbolt lock mechanism, faceplate, thumbturn, lock cylinder, and three keys — a complete package for a full replacement. The aluminum and alloy steel construction is functional but noticeably lighter than the eight-ply commercial options. This is acceptable for interior-facing storefront doors or lower-traffic retail entrances where the primary threat is opportunistic rather than targeted. The silver finish matches most standard aluminum door frames without visual mismatch.
The standout advantage here is cost: this lock delivers the core benefit of a double cylinder deadbolt — keyed entry on both sides — at a fraction of the price of premium storefront hardware. Installation is straightforward as a direct replacement for existing mortise locks with the same backset. The primary trade-off is long-term durability: the five-ply bolt offers less saw resistance than eight-ply options, and the alloy steel components will wear faster under heavy daily use. For a budget-conscious storefront replacement where the door is not a primary entrance, this is a practical choice.
Why it’s great
- Five-ply laminated bolt with hardened steel pin
- Complete set includes cylinder, faceplate, thumbturn, and 3 keys
- Direct fit for 1-1/8 inch backset storefront doors
- Significant cost savings over commercial storefront locks
Good to know
- Five-ply bolt less saw-resistant than eight-ply alternatives
- Alloy steel construction wears faster than solid brass
- Designed for aluminum/glass doors only — not for wood
FAQ
Are double cylinder deadbolts safe for emergency egress?
What is the difference between a mortise lock and a cylindrical deadbolt?
Can I re-key a double cylinder deadbolt to match my existing keys?
How do I measure my door’s backset for a double cylinder deadbolt?
What does “hardened steel pin” do in a deadbolt?
Final Thoughts: The Verdict
For most users, the best double cylinder deadbolt winner is the Kwikset 985 SmartKey because it combines the highest ANSI Grade 1 security rating with the convenience of tool-free re-keying — an unbeatable combination for homeowners and landlords alike. If you want a solid bronze surface-mounted solution that works on metal security doors, grab the Prime-Line Segal. And for storefront aluminum doors with 1-1/8 inch backset where glass security is the primary concern, nothing in this class beats the AIsecure mortise lock with its eight-ply laminated bolt and solid brass cylinders.
