A door hinge looks simple, but choosing the wrong one means a sagging frame, a grating squeak every time you walk through, or a finish that flakes within a season. Standard stamped hinges wear out fast under the weight of a solid-core door or the daily cycling of a busy entryway. A properly engineered hinge uses ball bearings, thicker steel, and corrosion-resistant construction to deliver smooth, silent operation for years without adjustment.
I’m Mohammad Maruf — the founder and writer behind WellFizz. I analyze door hardware down to the leaf thickness, bearing tolerance, and finish durability to separate true commercial-grade hinges from overpriced stamped metal.
Whether you are replacing a tired front door set or upgrading an entire home, this guide identifies the best door hinges for smooth, quiet, and long-lasting performance in any application.
How To Choose The Best Door Hinges
Door hinges vary widely in material quality, bearing design, and load rating. Selecting the right set requires matching the hinge specs to your door weight, usage frequency, and environmental exposure. The following factors determine whether your door swings smoothly for years or develops problems within months.
Ball Bearing vs. Standard Hinges
A ball bearing hinge contains small steel bearings between the knuckles, lubricated and sealed inside the barrel. This design reduces friction and wear, allowing the hinge to handle heavy doors and thousands of open-close cycles without developing play or squeaks. Standard hinges use a plain pin that grinds against the barrel over time, leading to noise and sag. For any exterior or frequently used interior door, a ball bearing hinge is the correct choice.
Leaf Thickness and Material Grade
Thicker steel directly translates to higher load capacity and resistance to deformation. Entry-level hinges often use 0.1-inch thick leaves, while heavy-duty versions measure 0.118 to 0.18 inches. Material grade matters too: 304 stainless steel offers superior corrosion resistance compared to 201 stainless or zinc alloys, especially in coastal or high-humidity environments.
Corner Radius and Hole Pattern
Most residential doors and frames are cut for a 5/8-inch radius corner. Using hinges with a different corner shape requires modifying the mortise, adding significant labor. The hole pattern also varies — some hinges use the same spacing as standard builders’ hinges, while others feature offset patterns that let you avoid stripped-out screw holes from previous installations.
Pin Style: Removable vs. Non-Removable
Removable pins allow you to lift the door off without removing the hinge leaves from the frame, which makes painting or refinishing easier. Non-removable pins (NRP) are permanently fixed and often include tamper-resistant fasteners, providing better security for exterior doors. Ball bearing hinges are typically non-removable because the bearing assembly is sealed inside the barrel.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Bartuda 3 Pack Ball Bearing | Heavy Duty | Security doors & thick leaves | 0.18″ thick leaf, 400 lb capacity | Amazon |
| Haidms 304 Stainless Steel Ball Bearing | Mid-Range | Replacing stripped OEM holes | 0.118″ Grade 1 leaf, offset pattern | Amazon |
| Qkenvo 4″ Ball Bearing | Value | Budget-friendly smooth operation | 201 stainless, 5/8″ radius | Amazon |
| KOLET Ball Bearing | Premium | Quiet interior & exterior use | Non-removable pin, 50k cycle rating | Amazon |
| Goldenwarm 3 Pack Ball Bearing | Premium | Smooth, silent entry door upgrade | 304 stainless, matte black finish | Amazon |
In‑Depth Reviews

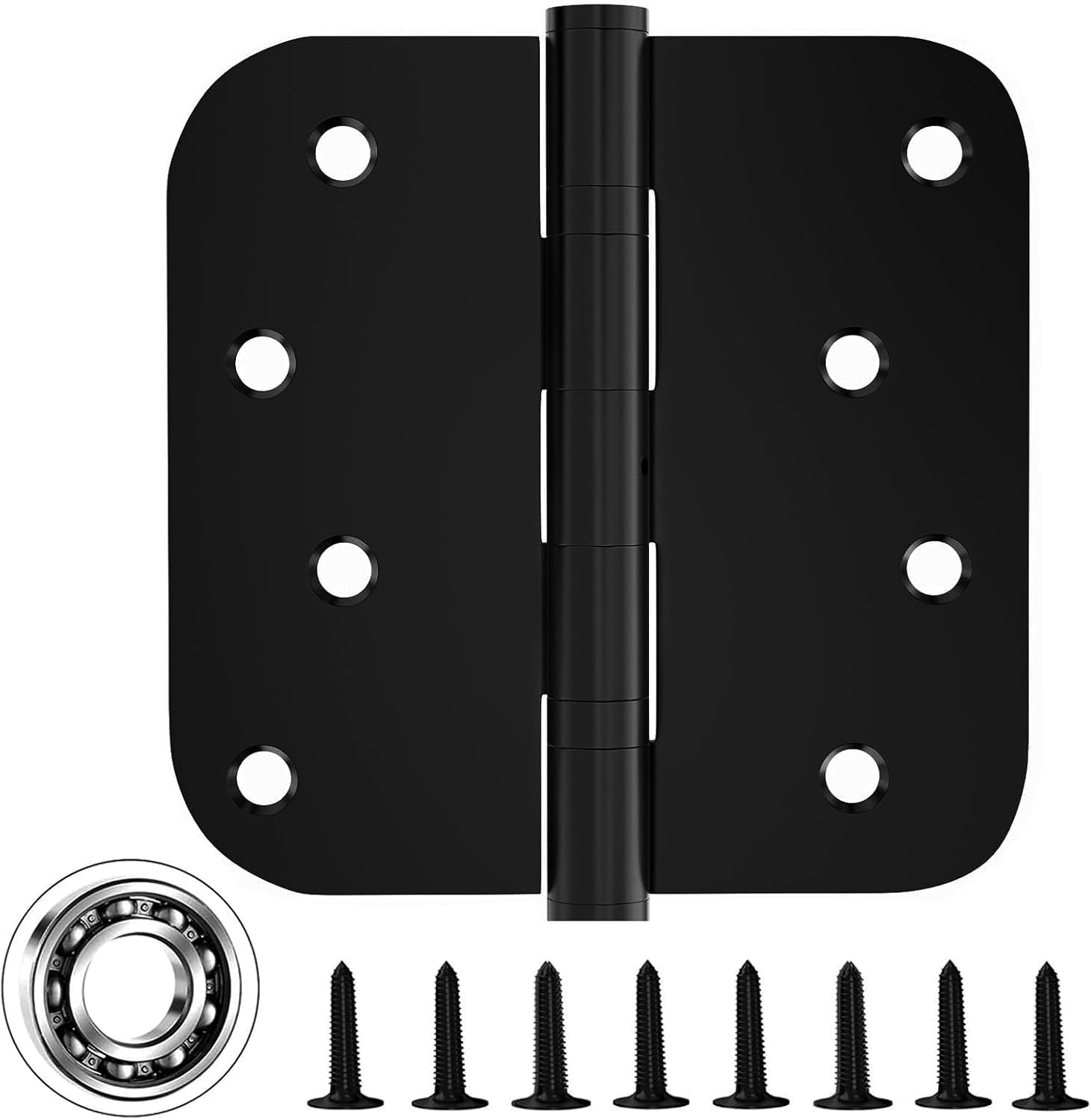

1. Bartuda 3 Pack Ball Bearing Door Hinges
The Bartuda hinge stands out for its unusually thick 0.18-inch leaf, which is nearly double the thickness of many builder-grade hinges. This robust construction supports a maximum weight capacity of 400 pounds, making it suitable for heavy solid-core doors, steel entry doors, and even commercial applications. The non-removable pin and tamper-resistant hex screw add a genuine security layer that few residential hinges offer.
The ball bearing assembly provides smooth, silent operation that eliminates door sag and squeaking. Customers note that the included screws are longer than standard but recommend upgrading the screws for maximum holding power. The matte black finish resists fingerprints and maintains a clean appearance over time.
One important consideration is the thickness: because the leaves are thicker than typical hinges, you may need to deepen the mortise on the door and frame by roughly 0.08 inches. This requires a router or chisel, so plan for extra installation time. For anyone prioritizing maximum strength and security without compromise, this is the top choice.
Why it’s great
- Extremely thick 0.18″ leaf resists deformation under heavy loads
- 400 lb capacity exceeds most residential and light commercial needs
- Non-removable pin with hex screw enhances security
- Smooth ball bearing operation eliminates squeaking
Good to know
- Thicker leaves require deepening the mortise for proper fit
- Included screws are mediocre; plan to buy better ones
- Not a drop-in replacement for standard 0.1″ hinges

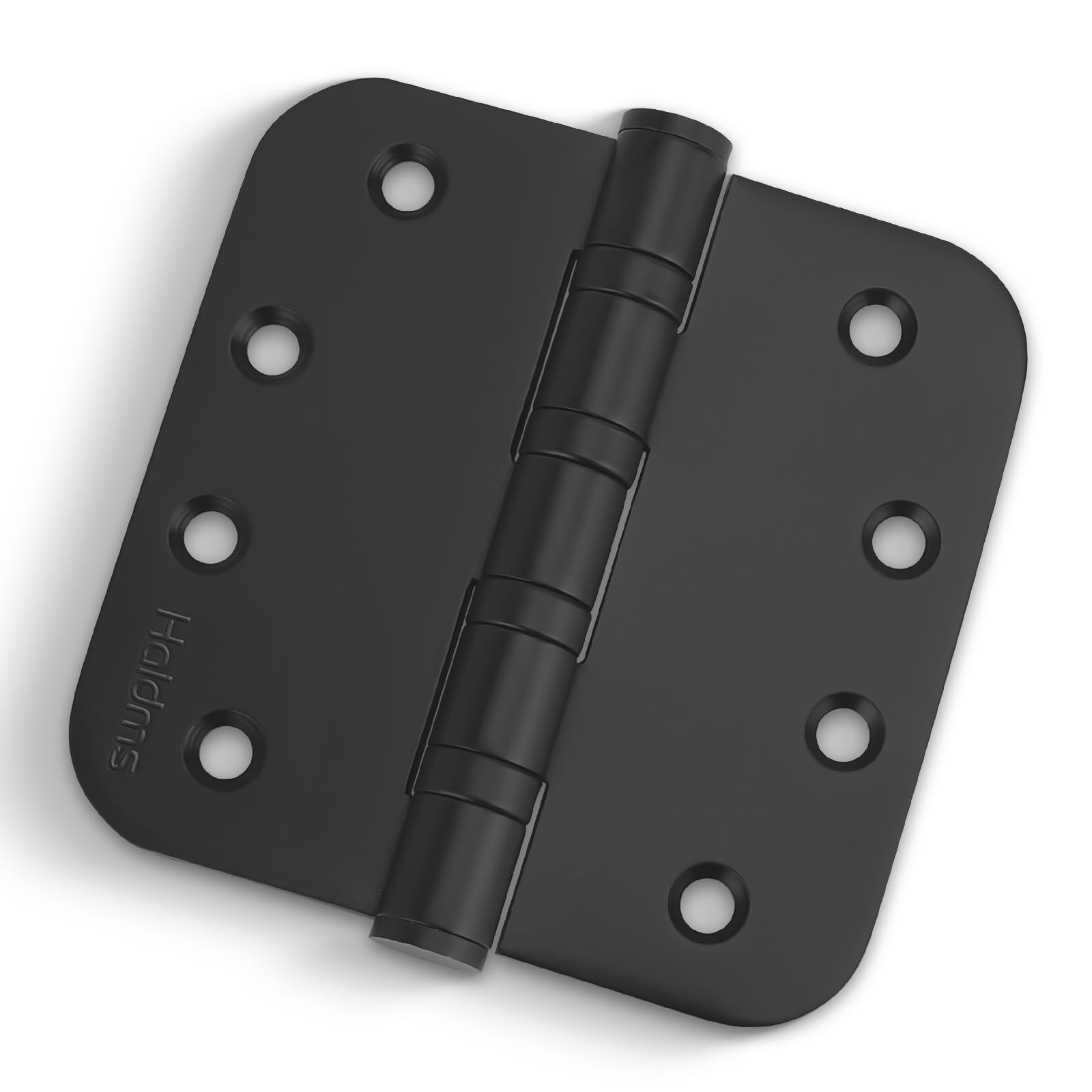

2. Haidms 304 Stainless Steel Black Ball Bearing Door Hinges
The Haidms hinge uses true 304 stainless steel construction with an ANSI/BHMA A156.1 Grade 1 rating, putting it in the same performance tier as commercial hardware costing significantly more. The 0.118-inch leaf thickness meets the standard for heavy-duty residential use, and the ball bearing system ensures quiet, friction-free movement. The matte black finish is corrosion-resistant and holds up well in exterior environments.
A standout feature is the offset hole pattern, which allows you to install the hinge into fresh wood rather than the stripped-out holes left by the previous hinge. This is a major time-saver during replacement work, eliminating the need to fill old holes or move the hinge location. The included 1.25-inch screws are longer than typical 0.75-inch screws, providing better bite into the door frame.
Installation is straightforward for anyone comfortable with basic door hardware work, and the hinges fit standard 5/8-inch radius mortises without modification. Some buyers note that the hinge is slightly heavier than expected, which reflects the quality of the 304 stainless. If you are replacing multiple hinges in a home and want commercial-grade performance without paying commercial prices, this is the set to buy.
Why it’s great
- ANSI Grade 1 rated for heavy-duty commercial-level performance
- Offset hole pattern avoids old stripped screw holes during replacement
- Long 1.25″ screws provide secure grip into the frame
- True 304 stainless resists rust and corrosion
Good to know
- Only rated for 2 holes per leaf, not 4
- Offset pattern may not match all existing mortises perfectly
- Heavier than stamped hinges, which some users note
3. KOLET Ball Bearing Door Hinges
KOLET rates these hinges for over 50,000 open-close cycles, a durability figure that rivals premium commercial hardware. The permanently lubricated ball bearings deliver whisper-quiet operation, and the non-removable pin ensures the hinge can’t be lifted off the frame, adding security for exterior applications. The 0.1-inch leaf thickness is standard, but the 304 stainless steel construction provides excellent corrosion resistance.
Customers report that the hole pattern matches standard builders’ hinges closely, making installation a straightforward swap. The matte black finish is uniform and resists scratching during installation. Each pack includes 27 screws, which is generous compared to the standard 24, and all screws match the hinge color for a cohesive look.
One limitation is the 110-pound weight capacity per set of three hinges, which is lower than the Bartuda but still sufficient for most residential doors. For heavy solid-core doors over 80 pounds, consider a hinge with thicker leaves. Overall, this set offers a great balance of smooth operation, durability, and security at a competitive price point.
Why it’s great
- Rated for 50,000+ cycles for long-term reliability
- Non-removable pin with sealed bearings enhances security
- Hole pattern matches standard builders’ hinges for easy swap
- Includes 27 matching color screws
Good to know
- 110 lb capacity is lower than some heavy-duty competitors
- 0.1″ leaf is standard thickness, not extra thick
- Non-removable pin prevents door removal without unscrewing

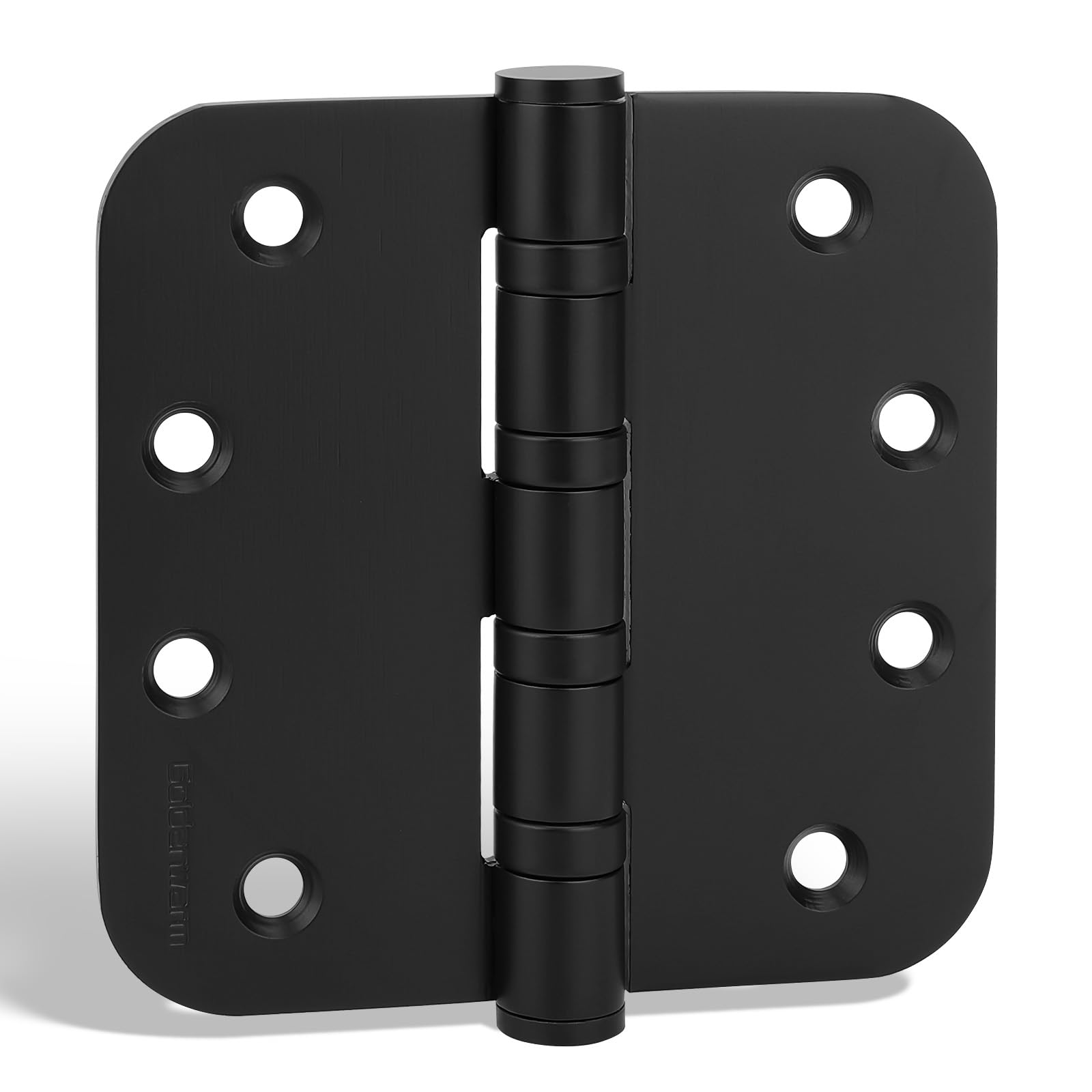

4. Goldenwarm 3 Pack 4” Black Ball Bearing Door Hinges
The Goldenwarm hinge delivers premium build quality with a focus on silent operation. Constructed from 304 stainless steel with a matte black finish, these hinges are designed to resist rust and maintain their appearance over years of use. The integrated ball bearings ensure doors swing smoothly without the squeaking that plagues standard hinges, even on heavy exterior doors.
Customers consistently note the substantial weight of these hinges, a reliable indicator of thick steel and quality craftsmanship. The hole pattern matches standard 4-inch hinges, making replacement straightforward. Each pack includes 24 color-matched wood screws, and the company offers a one-year warranty for added peace of mind.
These hinges are ideal for homeowners replacing squeaky or worn hinges on entry doors, especially solid wood doors that need the extra support of ball bearings. The finish is uniform and durable, resisting fingerprints better than glossy alternatives. For a premium hinge that delivers on its promises without breaking the bank, this is a strong contender.
Why it’s great
- Heavy-duty 304 stainless steel resists rust and deformation
- Ball bearings provide silent, smooth operation
- Matte black finish resists fingerprints and scratches
- One-year warranty covers defects
Good to know
- Standard 0.1″ leaf may not suit extremely heavy doors
- Non-removable pin limits door removal ease
- Hole pattern is standard, not offset for old holes
5. Qkenvo 4” Ball Bearing Door Hinges
The Qkenvo hinge offers ball bearing performance at an entry-level price point. Made from 201 stainless steel with a polished silver finish, these hinges provide smooth, quiet operation that eliminates door squeaking. The 5/8-inch radius corners match standard residential mortises, and the reversible design works for both left and right-opening doors.
Customers report that these hinges handle solid-core doors without sagging and that the ball bearings maintain smooth movement over time. The included screws are titanium-coated for added corrosion resistance, a nice touch for the price. The hinge is well-packaged and arrives without scratches or blemishes.
The trade-off is the material: 201 stainless steel has lower nickel content than 304, making it less corrosion-resistant in coastal or high-humidity environments. The leaf thickness is standard, not heavy-duty. For interior doors in dry climates, these hinges deliver great value without sacrificing smooth operation. For exterior or high-moisture applications, the 304 stainless options above are a better investment.
Why it’s great
- Ball bearing operation eliminates squeaking at a low cost
- Fits standard 5/8″ radius mortises without modification
- Reversible design works for any door orientation
- Titanium-coated screws provide basic corrosion resistance
Good to know
- 201 stainless is less corrosion-resistant than 304
- Standard leaf thickness, not suitable for extremely heavy doors
- Not ideal for exterior use in coastal or humid climates
FAQ
How do I know if a ball bearing hinge will fit my existing door mortise?
Should I use three hinges on every exterior door?
Can I replace a square-corner hinge with a radius-corner hinge?
Final Thoughts: The Verdict
For most users, the best door hinges winner is the Bartuda 3 Pack Ball Bearing because its 0.18-inch leaf thickness and 400-pound capacity provide unmatched strength and security for any residential door. If you want a drop-in replacement that avoids old screw holes, grab the Haidms 304 Stainless Steel with its offset hole pattern and Grade 1 rating. And for a budget-friendly upgrade that eliminates door squeaks, nothing beats the Qkenvo 4″ Ball Bearing set.
