Struggling with a masonry bit that skates across the surface or a hole saw that dulls after two inches of concrete is a special kind of frustration when you’re running pipe, venting, or anchors. Sintered diamond segments cut through aggregate, brick, and block with a grinding action that standard carbide bits can’t match, turning a chipping mess into a clean, round hole in a fraction of the time.
I’m Mohammad Maruf — the founder and writer behind WellFizz. I’ve spent countless hours poring over metal-bond specifications, segment heights, thread standards, and real-world job reports to separate the bits that actually keep cutting from those that shed their diamonds after one pass.
Whether you’re boring through a 1960s foundation or a modern brick veneer, this guide to the best diamond core drill bits breaks down which laser-welded segments, arbor fittings, and wet-versus-dry designs genuinely hold up under pressure.
How To Choose The Best Diamond Core Drill Bits
Picking the wrong core bit means wasted money and a half-finished hole. The key factors start with the material you’re cutting — soft brick behaves nothing like 6,000-psi reinforced concrete — and extend to the arbor thread compatibility with your drill or rig.
Matching Segment Bond to Your Material
Diamond segments use a metal bond that wears away to expose fresh grit. Softer materials like brick and block need a softer bond that erodes faster; hard concrete or stone requires a hard bond that holds the diamonds longer. Many budget bits use a generic bond that works okay for brick but glazes over in hard aggregate, causing the bit to spin without cutting.
Wet-Only vs Dry-Use Construction
Dry bits rely on air cooling and shorter drilling intervals to manage heat. Wet bits have a steel body designed to be flushed with water, which lubricates the cut and carries away slurry. Using a dry bit wet can cause rust and segment loss; using a wet bit dry overheats the bond and kills the diamonds fast.
Arbor Thread and Shank Compatibility
Two thread standards dominate the category: 5/8-11 for handheld drills and smaller dry bits, and 1-1/4-7 for larger wet bits and dedicated core drill rigs. Some kits include adapters to convert between the two, but always check your drill’s chuck or arbor before buying.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| EDiamondTools 4″ Wet Core Bit | Premium Wet | Reinforced concrete & rebar | 14″ drilling depth, 10mm segment | Amazon |
| EDiamondTools 4.5″ Dry Core Bit | Premium Dry | Brick & block walls | 9.5″ depth, #30/40 grit | Amazon |
| SALI 3″ Wet Core Bit | Mid-Range Wet | Rebar concrete & stone | 15″ depth, 1-1/4-7 thread | Amazon |
| BRSCHNITT 2″ Diamond Hole Saw | Mid-Range Dry | Granite & hard stone | Laser-welded segments, #25/35 grit | Amazon |
| EDiamondTools 2.5″ Wet Core Bit | Value Wet | Concrete with light steel | 14″ depth, 1-1/4-7 thread | Amazon |
| SALI 2″ Core Bit Kit | Value Dry/Wet | Brick & cinder block | 10″ depth, 5/8-11 thread | Amazon |
| Drilax 3″ Masonry Hole Saw | Budget Dry | One-off DIY holes | 2″ depth, 3/8″ shank | Amazon |
In‑Depth Reviews
1. EDiamondTools 4″ Wet Drill Core Bit
The premium-tier wet core bit from EDiamondTools pairs a 10mm segment height with a 14-inch drilling depth, giving it enough barrel length to punch through thick foundation walls in a single pass. Customer reports confirm it handled 8-inch, 3,000-psi concrete sidewalks with minimal wear after six holes and cut through rebar without losing teeth.
The 1-1/4-7 threaded arbor locks into dedicated core drill rigs or handheld units with the correct adapter, and the wet-only design keeps the steel body cool when paired with a water feeder or garden hose attachment. Users note the bit produces smooth, precise cuts in both plain concrete and hard masonry with no vibration or wandering.
For professionals or serious homeowners who need a bit that survives multiple jobs with rebar-heavy slabs, this barrel outperforms rental options on cost and convenience. The embedded diamond concentration eliminates the need to baby the cut, though wet operation means you need a water source and slurry management plan on every job.
Why it’s great
- Cut through 8 inches of 3,000-psi concrete with minimal wear after 6 holes
- 10mm segment height provides extended service life for heavy rebar drilling
- 14-inch depth allows single-pass coring through most residential foundations
Good to know
- Requires a water source — not usable dry under any condition
- Heavier barrel demands a stable rig or good upper-body control handheld
2. EDiamondTools 4.5″ Dry Diamond Core Drill Bit
Designed specifically for soft brick and building block — not hard concrete — this dry bit uses a #30/40 diamond grit that cuts aggressively in masonry without overheating. The 9.5-inch drilling depth is ideal for standard brick cavity walls, and the 5/8-11 threaded arbor fits most consumer rotary drills when used with a compatible adapter.
Users drilling through 12-inch concrete block walls for dryer vents reported clean 4-inch holes in about 30 minutes with a 9-amp drill in rotary mode only, and the bit retained enough life for future jobs. A common technique involves creating a plywood template with a 4.125-inch hole to prevent the bit from skating on the surface at startup.
The dry-only construction means you can work indoors without a water sprayer, though the bit still requires periodic breaks to cool. The lightweight body reduces arm fatigue during longer cuts, and the diamond segments stay fixed even when encountering wire mesh embedded in mortar joints.
Why it’s great
- Designed for soft masonry — brick, block, and cinderblock — where dry bits excel
- Lightweight barrel with 5/8-11 thread compatible with standard handheld drills
- Survived wire mesh in mortar joint with cutting teeth still intact
Good to know
- Requires a pilot hole or template to prevent skating at startup
- Cut speed is slow on dense hard-fired brick; patience is essential
3. SALI 3″ Wet Diamond Core Drill Bit
The SALI wet core bit offers a full 15-inch drilling depth at a mid-range price point, making it a strong candidate for deep penetrations through rebar-reinforced concrete. The laser-welded turbo segments use premium diamond grit that resists segment loss, and the aluminum alloy body reduces overall weight compared to all-steel barrels.
Real-world testing shows this bit cored through 12-inch brick walls in about an hour and handled 20-inch granite rubble with a Bosch hammer drill set to rotary-only mode. Users report that the bit still looked nearly new after four cores through reinforced curbs and thick walls, though it needs a steady water feed to maintain performance.
The 1-1/4-7 thread is standard for dedicated core rigs, but a simple adapter lets it run on handheld drills as well. For anyone who needs to punch a 3-inch hole through a foundation or concrete manhole floor, this barrel delivers professional depth without the professional price tag.
Why it’s great
- 15-inch barrel depth allows single-pass coring through most walls and foundations
- Laser-welded segments stay fixed even when hitting rebar and aggregate
- Aluminum alloy body is noticeably lighter than all-steel alternatives
Good to know
- Wet-only operation — cannot be used dry even for short bursts
- Bit may wander initially on smooth surfaces without a starter template
4. BRSCHNITT 2″ Diamond Core Drill Bit
The BRSCHNITT 2-inch bit targets hard stone applications like granite countertops and marble slabs, using #25/35 diamond grit and laser-welded segments that resist the high heat generated when cutting dense natural stone. The vacuum-brazed protective layer on the steel core prevents rust and keeps the barrel from warping under extended use.
Users report clean, chip-free holes in brick and granite when run with water cooling, and the bit remained sharp after multiple holes with no visible segment degradation. The 5/8-11 thread fits angle grinders with the correct adapter, and the compact 100mm total length makes it easy to maneuver in tight countertop spaces.
Dry operation is possible for softer materials like brick, but adding water dramatically extends segment life. The bit’s smaller diameter also makes it useful for drilling pilot holes for larger cores or running small-diameter conduit through stone veneer.
Why it’s great
- Laser-welded segments with #25/35 grit handle granite and marble without glazing
- Vacuum-brazed protective layer prevents rust and barrel distortion
- Compact 100mm body fits angle grinders for countertop work
Good to know
- Water cooling strongly recommended for thick granite or stone cuts
- Only 2-inch diameter limits use to small conduit or anchor holes
5. EDiamondTools 2.5″ Wet Drill Core Bit
This mid-range wet bit from EDiamondTools packs the same 10mm segment height and 14-inch drilling depth as its larger sibling but in a 2.5-inch diameter better suited for smaller penetrations like floor drains, stair railing posts, or light steel reinforcement. The 1-1/4-7 threaded arbor keeps the barrel secure on a core drill rig, and the embedded diamond concentration handles concrete with light rebar without accelerated wear.
Customers drilling 8-inch concrete walls reported smooth cuts with a water feeder and noted the bit still had life left after two full-depth holes. The wet-only operation reduces airborne silica dust significantly — a major advantage for indoor or occupied-space work where dry cutting would require extensive containment.
For contractors who need a compact diameter for anchor bolts or plumbing pass-throughs, this bit offers the same build quality as the premium 4-inch version at a lower entry cost. The barrel is well-balanced and produces minimal vibration when used with a proper rig.
Why it’s great
- 10mm segment height provides long life for a 2.5-inch bit in this tier
- 14-inch depth allows single-pass drilling through thick walls
- Wet operation keeps silica dust low for indoor projects
Good to know
- Wet-only — not usable dry even for shallow holes
- Smaller diameter means more passes needed for larger openings
6. SALI 2″ Diamond Core Drill Bit Kit
The SALI 2-inch kit includes the core bit plus two adapters — a 3/8-inch hex shank for standard drills and an SDS Plus shank adapter for rotary hammers — making it the most versatile option for users who don’t own a dedicated core drill rig. The bit itself has a 10-inch drilling depth and laser-welded segments designed for concrete, brick, block, and asphalt.
Real-world use shows the bit drilled through 8-inch concrete foundations with 1960s aggregate in about 30 minutes, surviving large rocks without shedding segments. Users also report cutting 12-inch holes through four-brick-thick walls in 5 to 10 minutes per hole, and the bit remained in great shape after hitting a steel I-beam corner.
Dry operation works for most materials, though adding water helps clear dust and extends segment life. The included hex shank adapter lets you run the bit with a variable-speed drill set to rotary-only mode, making this a strong entry-level choice for homeowners tackling occasional masonry projects.
Why it’s great
- Includes hex and SDS Plus adapters for drill compatibility out of the box
- Survived 1960s aggregate concrete and steel I-beam impact
- 10-inch depth handles most residential wall thicknesses
Good to know
- Bit may bind if tilted during the cut — keep it plumb
- Plywood guide recommended for precise starting position

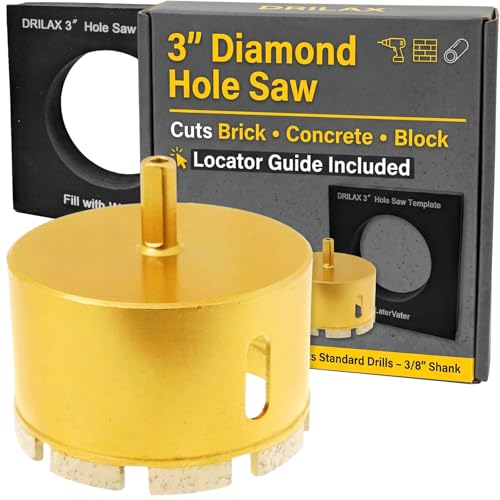

7. Drilax 3″ Diamond Masonry Hole Saw
The Drilax 3-inch masonry hole saw is the cheapest entry point in this lineup, using a sintered diamond cutting edge on a barrel that accepts a standard 3/8-inch drill chuck. The included locator guide prevents the bit from walking on hard surfaces, and the 2-inch cutting depth is enough for single-brick veneers and block walls up to standard residential thickness.
Users report good results on 45-year-old hard brick for dryer vent installations and on concrete pavers for conduit runs, though the bit wears faster than premium options — typically good for two to four holes before the diamonds begin to dull. The dry-only operation means no water management, making it a clean option for quick exterior jobs.
For a one-off project where renting a professional core drill isn’t practical, this bit delivers the hole you need at a fraction of the cost. Just be realistic about its lifespan: it’s a task-specific consumable, not a long-term investment for frequent use.
Why it’s great
- Compatible with any standard 3/8-inch drill — no special rig required
- Included locator guide eliminates skating on hard surfaces
- Clean dry operation with no water or slurry management
Good to know
- Limited 2-inch depth — not suitable for foundation or thick-wall coring
- Diamond edge wears quickly; expect 2-4 holes before performance drops
FAQ
Can I use a wet core bit with a standard handheld drill?
How do I prevent the bit from wandering at the start?
Why did my diamond core bit stop cutting mid-hole?
Final Thoughts: The Verdict
For most users, the best diamond core drill bits winner is the EDiamondTools 4″ Wet Core Bit because it combines a 10mm segment height, 14-inch depth, and proven rebar-stopping ability in a single professional-grade package. If you want dry operation for brick and block, grab the EDiamondTools 4.5″ Dry Core Bit. And for a one-off DIY job with a standard drill, nothing beats the value of the Drilax 3″ Masonry Hole Saw.
