Finding a quiet, reliable D5 pump is the single most important decision in a custom water-cooling loop; a bad choice means audible vibration, thermal throttling under load, or a dead loop within months. The difference between a smooth-running build and a noisy headache comes down to PWM control range, ceramic bearing quality, and head pressure—metrics that separate hobbyist-grade hardware from the rest.
I’m Mohammad Maruf — the founder and writer behind WellFizz. After hundreds of hours analyzing customer reviews, teardown reports, and real-world flow benchmarks across the mid-range and premium D5 pump market, this guide brings together the specs that actually matter for a cool, quiet PC.
Whether you are planning your first custom loop or upgrading an aging pump, these are the models worth your time and the best d5 pump options that consistently deliver dependable, silent performance for water-cooling enthusiasts.
How To Choose The Best D5 Pump
Choosing a D5 pump is about balancing noise, flow, and long-term reliability within your loop’s complexity. The right model depends on your radiator count, GPU/CPU blocks, and whether you want PWM control or a simple fixed-speed baseline.
PWM vs. Fixed Speed
A PWM-controlled D5 pump lets your motherboard or fan controller adjust the pump’s RPM in real time based on coolant temperature. This allows near-silent operation at low loads and full head pressure during heavy gaming or rendering. Fixed-speed models are simpler and cheaper, but force you to manually set a speed that often ends up louder than necessary during idle.
Head Pressure and Flow Rate
A standard D5 pump delivers roughly 3–4 meters of head pressure, which is enough for most single-loop builds with one CPU block and one radiator. Adding a GPU block, a second radiator, or long tubing runs increases restriction. In those cases, look for a pump that retains decent flow above 4 meters of head—models with higher RPM ceilings or stronger PWM duty cycles handle multi-block loops better.
Ceramic vs. Metal Bearings
Ceramic shaft bearings are standard in genuine D5 pumps because they resist wear over years of continuous operation and run quieter than metal bearings. Some budget clones use brass or steel bushings that can wear out, seize, or produce grinding noises over time. A ceramic bearing is a reliable indicator of a pump that will last through several build cycles.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| CORSAIR XD7 RGB | Premium Combo | Full-size distro plate builds | PWM Xylem D5, 360mm distro | Amazon |
| Aquacomputer D5 NEXT | Premium Standalone | Data-driven pump monitoring | PWM, Aquasuite, ceramic bearing | Amazon |
| Alphacool Eisball | Premium Combo | Compact ball-reservoir builds | PWM D5, 700ml reservoir | Amazon |
| Alphacool VPP Apex | Mid-Range Clone | Silent D5-alternative builds | PWM, 2500-4500 RPM, ceramic | Amazon |
| Dracaena D-PUB | Mid-Range Combo | Budget-friendly pump/res combo | 780L/h, G1/4, 100-600ml tank | Amazon |
| Jebao DCT-6000 | Mid-Range Marine | Aquarium or external loop use | 10-speed, 1585GPH, ceramic | Amazon |
| WaterRebirth Controller | Accessory | Pond pump speed regulation | Remote & APP, 10-stage flow | Amazon |
| TERA PUMP Electric | Industrial | 55-gal drum fluid transfer | 2.4GPM, 3 power options | Amazon |
| Kamoer DIP1500 | Lab/Industrial | Precise dosing applications | Peristaltic, 0.1-400rpm | Amazon |
In‑Depth Reviews

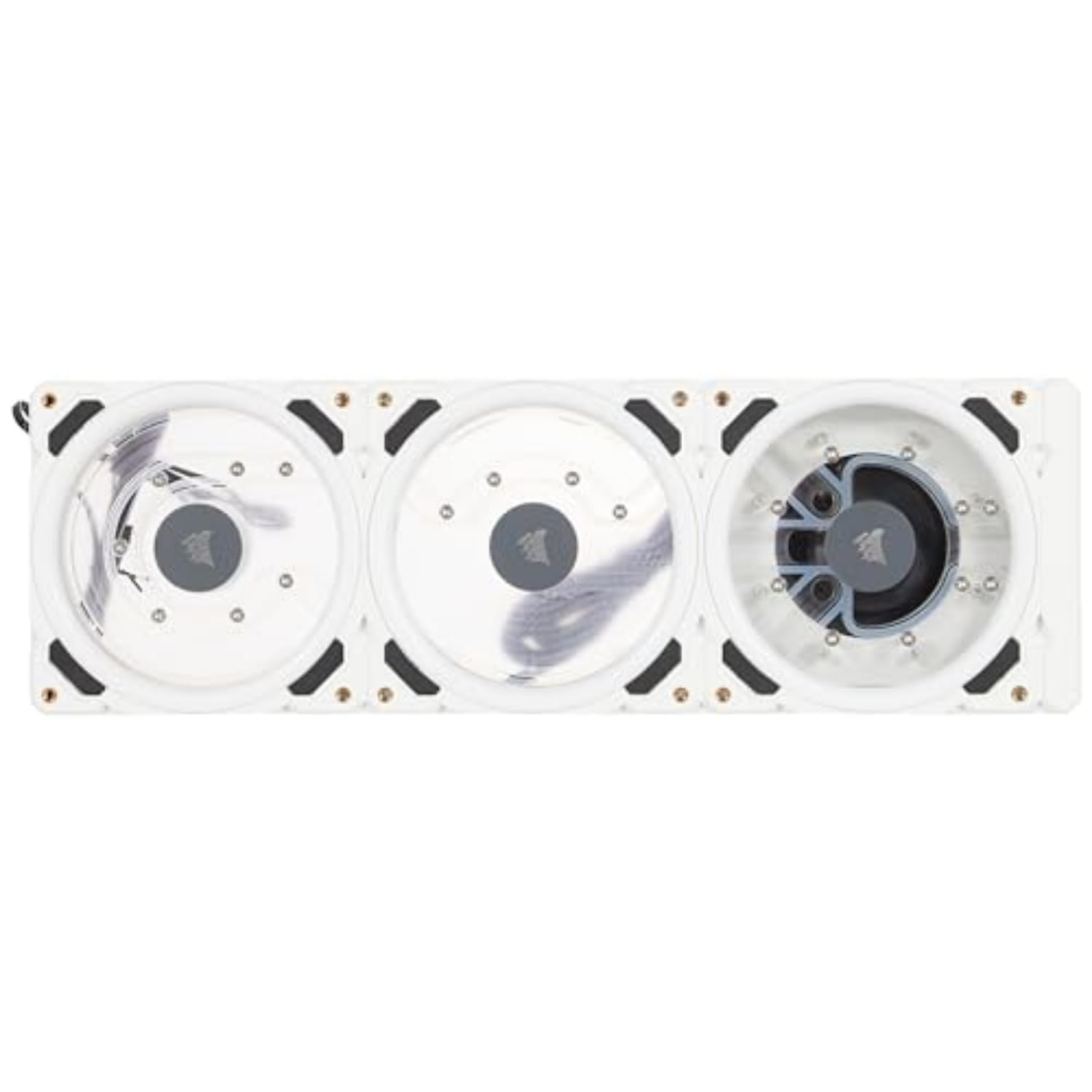

1. CORSAIR Hydro X Series XD7 RGB Pump/Reservoir Combo
The CORSAIR XD7 integrates a genuine Xylem D5 pump into a 360mm distribution plate, which drastically simplifies loop routing and adds 36 individually addressable RGB LEDs. The acrylic and nylon construction resists heat distortion and keeps coolant visible for easy maintenance. It’s the most cohesive all-in-one solution for users who want a built-in distro plate without bending hard tubes.
The PWM-controlled D5 pump provides the broad speed range needed for quiet idle operation and aggressive full-load cooling. With integrated fill, drain, and temperature sensor ports, coolant management is straightforward. Customer feedback confirms reliable performance in multi-block loops, though some units arrive with LED failure after months of use.
Its form factor specifically fits vertical triple 120mm fan mounts, so case compatibility must be verified before purchase. The 140ml reservoir capacity is modest, but the large distro volume compensates for it when bleeding air. For a premium, ready-to-run distribtion plate with a proven D5 core, the XD7 is the top pick.
Why it’s great
- Genuine Xylem D5 with wide PWM range
- 360mm distro plate simplifies loop layout
- Fill, drain, and temp sensor ports included
Good to know
- LED failure possible within a year
- Plastic fitting threads can cross-thread with metal
- Requires 3x 120mm mounting space
2. Aquacomputer D5 NEXT Pump
The Aquacomputer D5 NEXT is the most intelligent standalone D5 pump on the market, featuring onboard flow, temperature, and rotational speed sensors that interface directly with Aquasuite software. This delivers real-time coolant data without external flow meters, allowing precise fan and pump curves. The ceramic bearing ensures quiet long-term operation—multiple customer reports confirm seven years of continuous use with very little downtime.
The integrated fan header lets you control a case fan directly from the pump’s PWM signal, simplifying cable management. The unit comes with a standard D5 form factor, making it compatible with nearly any pump top or reservoir. The included power and signal cables are generous in length, and the build quality is exceptional.
The biggest risk is receiving a used unit, as some customer reviews report signs of wear and water stains on delivery. Inspect the packaging and the pump surface immediately upon arrival. For anyone who wants deep telemetry and a proven D5 core built for longevity, this is the pump to buy.
Why it’s great
- Built-in flow, temp, and speed sensors
- Aquasuite integration for precise curves
- Ceramic bearing for extended lifespan
Good to know
- Risk of receiving a used unit from third-party sellers
- Premium price tier
- No reservoir included
3. Alphacool Eisball Reservoir and Pump Combo
The Alphacool Eisball combines a D5 pump with a 700ml transparent nylon sphere reservoir, creating a unique centerpiece for any loop. The ball shape allows mounting at virtually any angle, and the 5V ARGB lighting syncs with motherboard software. Customer feedback highlights whisper-quiet operation even at higher speeds, and the massive reservoir volume helps trap and bleed air bubbles faster than tube-style reservoirs.
The included acetal pump holder keeps the D5 secure and isolates vibration from the case. G1/4 threaded ports on the ball give flexible inlet/outlet positioning. Users report that the pump runs best below 70% PWM speed to avoid reintroducing air from the top reservoir space, which is common with spherical designs.
The transparent nylon ball tends to stain with dyed or UV coolant, so clear coolant is recommended for long-term aesthetics. At roughly 120mm wide, it extends beyond a standard 120mm fan mount, so case clearance must be checked. For a distinctive, high-capacity D5 combo that doubles as a conversation piece, the Eisball is unmatched.
Why it’s great
- Large 700ml reservoir for easy bleeding
- Mountable at any angle
- Very quiet D5 operation
Good to know
- Nylon ball stains with dye coolant
- Air pocket can form at top at high speeds
- Instructions lack detail on fan/pump plug
4. Alphacool VPP Apex PWM Pump
The Alphacool VPP Apex is a D5-compatible pump that many users find quieter than the original Laing D5. It uses a PWM-controlled brushless motor with a ceramic shaft, covering a range of 2500 to 4500 RPM. The SATA power connector and standard 4-pin PWM header make it compatible with any modern motherboard without adapter cables. Multiple verified reviews report two years of trouble-free service and nearly silent operation at mid-range speeds.
With a maximum head pressure of 4.25 meters and a flow rate of 340 liters per hour, the VPP Apex handles single-loop builds with multiple blocks and radiators without issue. The internal design isolates the impeller from the fluid, which avoids the ceramic bearing failure mode common in DDC and even some D5 pumps. This design improvement contributes to its reputation for longevity.
A small number of units have died suddenly within months of purchase, which suggests occasional quality variation. The pump body is also slightly smaller than a standard D5, so some third-party pump tops may require shimming. Overall, it is the strongest mid-range alternative to a genuine D5, delivering lower noise at a very competitive level.
Why it’s great
- Quieter than many genuine D5 pumps
- Impeller isolated from fluid reduces wear
- PWM and SATA power for easy integration
Good to know
- Some units fail within months
- Not identical size to standard D5 for all tops

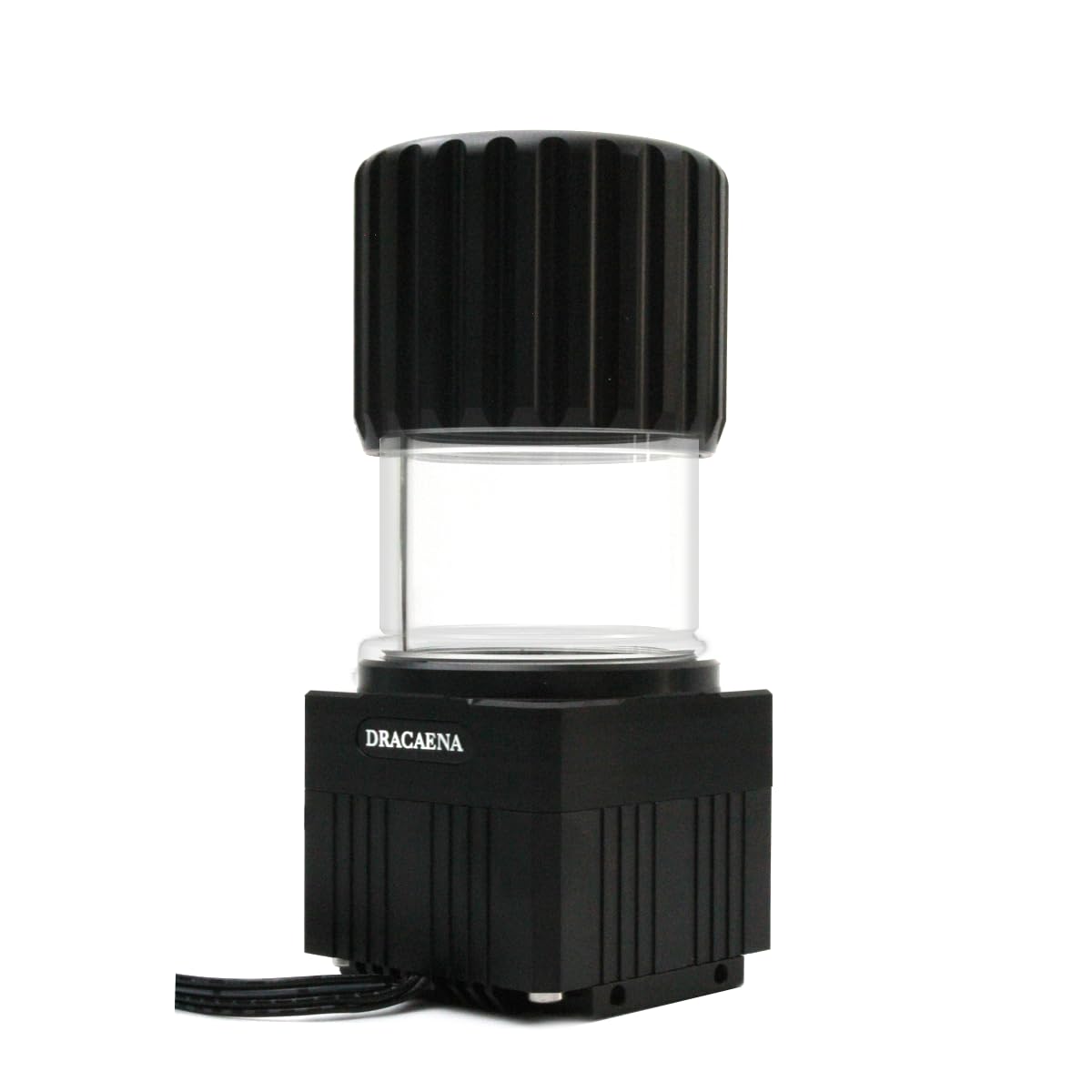

5. Dracaena High Flow D5 Pump/Reservoir Combo
The Dracaena D-PUB series delivers a D5-style pump with an integrated acrylic reservoir at an entry-level price point. The 18-watt brushless motor pushes 780 liters per hour at up to 6 meters of head, which is competitive with many mid-range D5 clones. The 100ml version is compact enough for small cases, while larger tank options (200ml, 400ml, 600ml) are available for builds with more space. All models feature five G1/4 ports for flexible loop routing.
Customer reports confirm that the pump is quiet and pushes air out of the loop effectively during the first fill. The included mounting plate, shock pad, and sealing rings make installation straightforward. The ARGB lighting works without proprietary software, and both PWM and Molex power support are provided on the control board.
The pump also lacks a drain port and a printed manual, so initial setup requires some familiarity with standard water-cooling practices. For builders comfortable with DIY troubleshooting, it offers impressive flow for the price.
Why it’s great
- High flow (780L/h) at low wattage
- Multiple reservoir size options
- ARGB works without proprietary software
Good to know
- Some units fail prematurely
- No manual or drain port included
- Burn-in testing recommended before loop install
6. Jebao DCT Marine Controllable Water Pump
The Jebao DCT-6000 is a 42-watt DC marine pump with a 10-speed controller, originally designed for aquarium sumps but commonly adapted for external water-cooling loops. Its ceramic bearing and no-copper construction make it safe for saltwater, but the same corrosion resistance benefits any liquid loop. Maximum flow is 1585 GPH at a 12.5-foot head, which is enough for large setups with significant vertical lift.
Customer reviews consistently praise its extremely quiet operation, with many noting that the water flow is louder than the pump itself. The feed-pause function and slow start-up are useful for aquarium applications, but the feed mode can cause back-flow if used without a check valve. Users report regular speeds lasting over five years with proper maintenance and avoidance of continuous full-speed operation.
The main drawback for PC cooling is the lack of specialized plumbing adapters and the 4-inch pump body width, which can be awkward in shallow sumps. It is not a direct D5 replacement but works well for external reservoirs or large aquarium setups where absolute silence is needed.
Why it’s great
- Very quiet even on higher speed settings
- High flow and head for tall loops
- No copper components prevent galvanic corrosion
Good to know
- Not a standard D5 form factor for PC tops
- Feed mode requires check valve to avoid back-flow
- Limited plumbing adapter options
7. WaterRebirth Variable Speed Controller for Pumps
The WaterRebirth controller is not a pump itself; it is an external variable speed controller for asynchronous pond pumps up to 900 watts. It offers 10 flow levels from 10% to 100%, along with a timer mode and cycle mode that can be programmed via remote or the TUYA app. It is designed for pumps like the PGPSPEPAPBPCTT series, making it an accessory for those who want fine-grained speed control over a large AC pump.
Users with 1200-gallon ponds report that the controller reduces power consumption from roughly 400W to 30-40% during off-peak hours, saving significant electricity. The app and remote are intuitive, and the controller identifies the pump in the TUYA app as a generic device. Installation is simple and the unit is well-built.
Some units died within weeks, with the remote becoming unresponsive despite a new battery. The controller is also not compatible with all pumps, specifically the S14000 model is not supported, so verify pump compatibility before purchase. For pond owners needing silent, programmable flow regulation, this is a good option.
Why it’s great
- Saves electricity by running pumps at reduced speeds
- Easy programming via remote and app
- Timer and cycle modes for automatic operation
Good to know
- Not compatible with all pumps (avoid S14000)
- Some units fail early with remote issues
- Requires a pump with asynchronous motor
8. TERA PUMP Electric Drum Pump for 55-Gallon Barrels
The TERA PUMP electric drum pump is a distinct product category—designed for transferring DEF, antifreeze, and washer fluid from 15- to 55-gallon drums at 2.4 GPM. It is powered by a 110V adapter, a 12V cigarette lighter plug, or 12V alligator clips, giving flexibility for garage, field, or mobile use. The 39-inch flexible intake hose reaches the bottom of deep drums, and the 9.8-foot vinyl discharge hose reaches far without kinking.
Customer reviews highlight its robust build quality and good flow rate with minimal foaming. The squeeze-trigger nozzle allows precise flow control, and the 360-degree rotating connection prevents hose tangles. Users report running it daily for dog grooming and workshop fluid transfer without issues.
A critical drawback is that the pump continues running when the nozzle is closed, circulating fluid and causing the motor to overheat; it then shuts off for 20 minutes before restarting. The listing does not make this behavior clear. It should never be used with gasoline or diesel fuel, and the NPS threading must be verified for barrel compatibility.
Why it’s great
- Three power options for versatile use
- Good flow rate with minimal foaming
- Squeeze trigger for precise flow control
Good to know
- Pump runs continuously when tap is closed, risking overheating
- Not for gasoline or diesel fuel
- NPS threading compatibility must be verified
9. Kamoer DIP1500 Peristaltic Dosing Pump
The Kamoer DIP1500 is a peristaltic dosing pump designed for precise fluid handling in industrial, laboratory, or medical applications. Its stepper motor offers an impressive 0.1 to 400 RPM speed range, delivering flow rates up to 1500 ml/min. Control options include a rotary encoder, foot switch, 4-20 mA analog signal, 0-5V, and RS485 Modbus, making it highly adaptable for automated systems.
The 3-rotor design and 7.9mm ID silicone tubing are easy to replace, though the tubing has a lifespan of approximately 200 hours. The digital LED display shows instant speed and flow rate, and the pump supports multiple operating modes: continuous, semi-automatic, and fully automatic. The power failure memory saves the last parameters, a valuable feature for long-running processes.
Users report excellent cost-to-performance ratio for industrial water injection via PLC control. However, some report that the pump fails to maintain suction during dosing cycles when used for g-tube feeding, causing pullback and intermittent flow. The tubing seal can also degrade over time. For precise laboratory or industrial dosing where flow rate matters more than high pressure, the DIP1500 is a reliable choice.
Why it’s great
- Wide speed range with 0.1 rpm resolution
- Multiple control interfaces (analog, RS485, foot switch)
- Power failure memory retains parameters
Good to know
- Tube lifespan is ~200 hours and must be replaced
- May not maintain suction for g-tube feeding applications
- No high-pressure output, designed for dosing only
FAQ
What is the difference between a D5 and a DDC pump?
Can I use a D5 pump without PWM control?
How long does a D5 pump typically last?
Do all D5 pumps fit the same pump top or reservoir?
Can I run a D5 pump submerged?
Final Thoughts: The Verdict
For most users, the best d5 pump winner is the CORSAIR XD7 RGB because it combines a proven Xylem D5 core with a 360mm distribution plate, built-in RGB, and sensible fill/drain ports that simplify maintenance. If you want deep real-time telemetry and Aquasuite integration, grab the Aquacomputer D5 NEXT. And for a quiet, budget-friendly alternative that still delivers genuine D5-compatible performance, nothing beats the Alphacool VPP Apex.
