A lifted truck without corrected control arms is a truck fighting its own geometry. The ball joints bind, the bushings tear, and the alignment never sticks — turning your daily driver into a wandering, tire-shredding headache. The fix is a set of control arms specifically engineered to restore the suspension arc your truck lost the moment you cranked those torsion bars or bolted on leveling spacers.
I’m Mohammad Maruf — the founder and writer behind WellFizz. I’ve spent hundreds of hours cross-referencing suspension geometry, material composition, ball-joint articulation angles, and real-world owner feedback to determine which designs actually hold a lifted truck’s alignment under load.
Whether you are chasing maximum off-road articulation or simply want a highway ride that tracks straight without micro-steering, the right set of control arms for lifted trucks makes the difference between a constant headache and a silent, planted suspension that stops killing tires.
How To Choose The Best Control Arms For Lifted Trucks
Selecting the right control arm for a lifted truck is not about picking the shiniest part. The geometry change created by a lift shifts the suspension arc, forcing the ball joint to operate outside its designed range of motion. A proper replacement control arm corrects that angle, restores the alignment range, and handles the added stress of oversized tires. Ignore this and you will chew through ball joints and scrub the outer edges of your tires in under 5,000 miles.
Material: Forged Aluminum vs. Welded Steel
Forged aluminum arms (like the Rough Country units) offer the best strength-to-weight ratio with no weld joints that can crack under fatigue. They resist corrosion and reduce unsprung mass, helping the suspension react faster to bumps. Welded steel arms (like Freedom OffRoad or Readylift) are heavier but can be repaired by a local shop and often cost less. For daily-driven trucks that see salt, aluminum wins on longevity. For heavy towing or severe trail abuse where a rock strike is possible, the repairability of steel has an edge.
Ball Joint Design and Articulation
The ball joint is the single most stressed component on a lifted control arm. Look for greaseable joints with a metal-on-metal interface — avoid POM (plastic-on-metal) ball joints if you plan to keep the truck more than two years. POM joints offer a wider range of motion initially but wear faster under constant load and contamination. Specialty Products’ xAxis joint delivers 80° of articulation, which is best-in-class for maximum droop travel on off-road rigs. Most other premium arms offer roughly 30–45° of movement, which is adequate for lifts up to 4 inches.
Bushing Material and Compliance
Polyurethane bushings (found on KSP and Kryptonite arms) transmit more road vibration into the cabin but resist deflection better under hard cornering and braking. Rubber bushings (OEM-style on Rough Country and Freedom OffRoad) are quieter and absorb small bumps more effectively, but they deflect more under load and can cause alignment drift as they age. For a lifted truck that sees both highway and light trail duty, polyurethane with grease zerks offers the best balance of control and longevity.
Adjustability and Alignment Range
Caster and camber correction is the whole point of upgraded control arms. Some arms (Specialty Products) offer built-in eccentric bushings that provide up to ±2° of camber and +4° of caster adjustment. Others (KSP, Rough Country) rely on elongated bolt holes and slot-style adjustment at the frame mount. If your truck has a lift over 3 inches, prioritize arms that offer independent caster adjustment — this prevents the dreaded “wandering at highway speed” symptom that no alignment shop can fix with cam bolts alone.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Kryptonite Upper Control Arm Kit | Premium Steel | Maximum durability, HD trucks | Greasable poly bushings, bolt-in ball joints | Amazon |
| Specialty Products Company 25470 | Premium Adjustable | Max articulation & caster adjustment | 80° ball joint, +2° built-in caster | Amazon |
| Rough Country Forged UCA (GM 07-18) | Forged Aluminum | Best all-around GM truck lift 2-4″ | Forged 6061 aluminum, rubber bushings | Amazon |
| Rough Country Forged UCA (Toyota 05-23) | Forged Aluminum | Toyota Tacoma/4Runner 3.5″+ lifts | POM ball joint, Clevite rubber bushings | Amazon |
| KSP Aluminum Forged UCA (GM 07-18) | Aluminum Forged | Lightweight upgrade, Silverado/Sierra | CNC-machined 6061, metal-metal ball joint | Amazon |
| Readylift 44-3100 | Premium Steel | GM 2500/3500 HD leveled trucks | Fabricated steel, spring-loaded ball joint | Amazon |
| Freedom OffRoad FO-G701FU | Steel Tubular | Budget-minded GM 1500 2-4″ lifts | 1.5″ DOM tubing, OEM-style ball joints | Amazon |
| KSP 2nd Gen UCA (F-150 04-20) | Steel Tubular | Budget F-150 2-4″ lift correction | MIG-welded steel, PU bushings | Amazon |
| KAX Front Suspension Kit | Complete Kit | GM OBS full front-end rebuild | 15-piece kit, upper + lower arms | Amazon |
In‑Depth Reviews
1. Kryptonite Upper Control Arm Kit
The Kryptonite UCA kit is built for the owner who refuses to compromise on materials. The arms are constructed from thick-wall alloy steel with greasable polyurethane bushings that have their own zerk fittings — a detail most budget arms skip entirely. The ball joints are serviceable and bolt in without a press, making field replacement simple if you ever need it.
Owners report that the packaging alone signals the quality: foam cutouts, glossy install instructions, and even a kneeling pad shipped with the kit. The alignment range is generous, and the integrated bump stops and brake line brackets show that Kryptonite thought through every attachment point. The arms fit 2001–2010 GM 2500HD/3500HD trucks specifically, so double-check compatibility before ordering.
The only real friction point is the price — this is the most expensive set in this guide. But the “buy once, cry once” sentiment is strong in the owner community. The peace of mind from a control arm that will not shear its ball joint (a known failure on cheap rebuild kits) makes this the right option for heavy-duty towing and high-mileage daily use on HD trucks.
Why it’s great
- Greasable poly bushings with dedicated zerk fittings
- Bolt-in ball joints require no press for replacement
- Oversized hardware and integrated brake line brackets
Good to know
- Premium price point, not for budget builds
- Limited to GM 2500HD/3500HD 2001–2010 fitment
- Alignment pin may require slight tapping during install

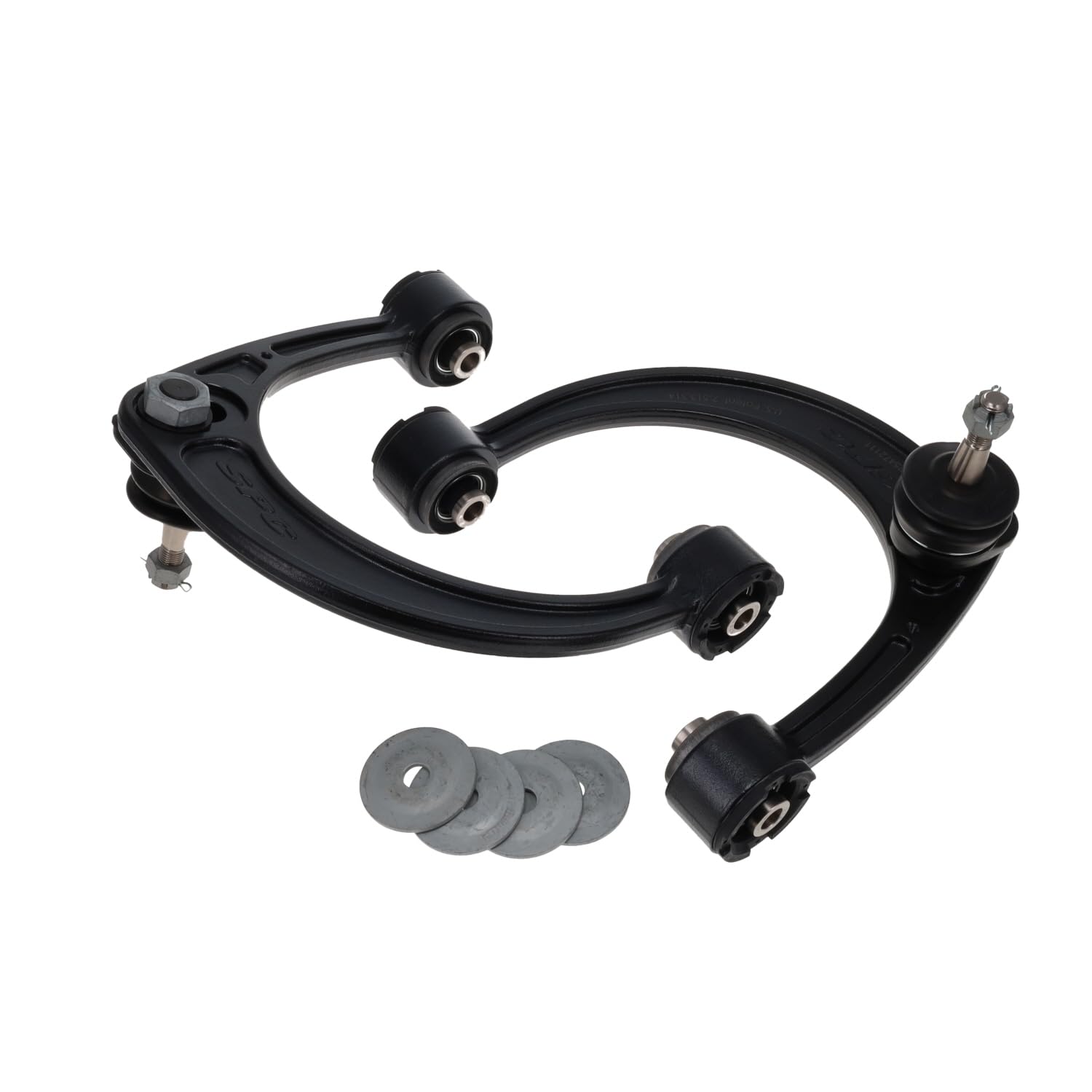

2. Specialty Products Company TACOMA UCA’s (PAIR) 25470
Specialty Products Company builds the only UCA in this lineup that delivers 80° of ball-joint articulation. For a lifted Tacoma or 4Runner that sees rock crawling or desert running, this extra travel translates directly into tire contact — keeping the rubber on the dirt instead of lifting a wheel. The patented xAxis ball joint design is the key differentiator here.
The arm comes with +2° of caster built into the geometry, plus an adjustment range of 0° to +4° of caster and ±2° of camber. That range means you can push oversized tires forward in the wheel well to minimize fender trimming — a huge benefit when running 33s or 35s on a 3-inch lift. The install is straightforward for anyone comfortable with suspension work, though the frame bolt on the Tacoma requires bending the inner fender lip slightly.
Warranty support is the main concern. A small number of owners report difficulty getting boot replacements honored under the limited lifetime warranty, with SPC directing them back to the Amazon vendor for proof of purchase. For daily-driven trucks on pavement this is rarely an issue, but if you hammer gravel roads regularly, budget for a spare set of dust boots.
Why it’s great
- Industry-leading 80° ball-joint articulation for max droop
- Built-in +2° caster corrects alignment on 3-inch lifts
- Adjustment range centers oversized tires in the wheel well
Good to know
- Boot durability is marginal for heavy gravel-road use
- Warranty claims may require direct vendor follow-up
- Frame bolt install requires bending inner fender sheet metal
3. Rough Country Forged Upper Control Arms for 07-18 Chevy/GMC (19401A)
The Rough Country 19401A set is the benchmark for lifted GM 1500 trucks. These arms are forged from a single billet of 6061 aluminum — no welds, no heat-affected zones, no hidden stress risers. For a daily-driven Silverado or Sierra with a 2–4 inch lift, this is the sweet spot of strength and weight savings.
The Clevite-brand OEM-style rubber bushings keep NVH low inside the cabin, and the greaseable POM ball joints offer smooth articulation. Alignment shops consistently praise the adjustability of these arms, and they can dial in caster and camber after installation without fighting the hardware. The limited lifetime replacement warranty from Rough Country is also one of the best in the industry — owners who have had dust boots tear report fast replacements from customer service.
A small percentage of users report that the ball-joint boots can tear during installation if the arm is not cycled through its full range of motion before tightening. Lubricating the joint thoroughly before install and cycling it by hand eliminates this issue. Overall, this is the most reliable pick for the widest range of GM truck owners.
Why it’s great
- Forged 6061 aluminum construction with zero weld joints
- Quiet Clevite rubber bushings absorb road vibration
- Excellent alignment adjustability and customer service
Good to know
- Boots can tear if not cycled through range during install
- POM ball joints wear faster than metal-on-metal designs
- Price sits at mid-premium tier, not budget-friendly
4. Rough Country Forged Upper Control Arms for 05-23 Tacoma / 10-24 4Runner (74201A)
Rough Country applies the same forged-aluminum philosophy to Toyota platforms, and the result is a clean, strong UCA designed for 3.5-inch-plus lifts. For third-gen Tacoma owners who have cranked their front end or added aftermarket coilovers, this arm corrects the ball-joint angle that causes premature boot failure and negative camber wear.
The POM ball joints provide a wide range of motion out of the box, and the Clevite rubber bushings keep the ride compliant. DIY installers with minimal experience report successful weekend installations — the hardest part is wrestling the long UCA bolt out of the frame mount. Once aligned, the truck tracks straight and the suspension cycles smoothly without binding.
The longevity of the POM ball joints is the dividing line here. For pavement-driven Tacomas and 4Runners, they hold up well for years. For trucks that see regular dirt-road abuse or deep sand, the boot seams can fail prematurely. A second set replaced under warranty also developed clunking within two months in one reported case. If you wheel hard, budget for a spare set of ball joints or consider stepping up to the Specialty Products arms for the metal-on-metal xAxis joint.
Why it’s great
- Forged aluminum avoids weld failure common with budget steel arms
- Easy DIY install with basic tools
- Limited lifetime warranty backs the purchase
Good to know
- POM ball joint boots prone to tearing on rough terrain
- Requires 3.5-inch minimum lift for proper geometry correction
- Packaging is minimal — shipping damage reported occasionally
5. KSP Aluminum Forged Upper Control Arms for Chevy/GMC 2007-2018
KSP’s forged aluminum upper control arm offers a metal-on-metal ball joint interface, which is a meaningful upgrade over the POM joints found on many arms at this tier. The zinc-nickel-coated ball joint resists corrosion in salt-belt winters, and the one-piece CNC-machined body eliminates the weld-line failure risk that plagues lower-cost tubular steel arms.
The arm includes greasable sockets with dual dust protection — a tower boot plus an exclusive KSP protective cover. Owners report that the streamlined design fits easily into the wheel well and that the urethane bushings (with included grease) maintain a tighter feel than factory rubber. The arm is tuned for 2–4 inch lifts, and it pairs especially well with spacer-style leveling kits on GMT900 platforms.
The urethane bushings transmit more road texture into the chassis compared to the Clevite rubber used by Rough Country. For drivers who prioritize cabin comfort over steering precision, this may be noticeable on rough pavement. The 1-year manufacturer warranty is shorter than the lifetime coverage offered by Rough Country and Kryptonite, so consider that if you plan to keep the truck long-term.
Why it’s great
- Metal-on-metal ball joint outlasts POM designs
- Zinc-nickel coating resists rust in winter climates
- Lightweight 6061 aluminum reduces unsprung mass
Good to know
- Urethane bushings transmit more road vibration
- Only 1-year manufacturer warranty
- No independent caster adjustment — slot-style only
6. Readylift 44-3100 Upper Control Arms
The Readylift 44-3100 is specifically engineered for GM 2500/3500HD trucks, and it addresses a unique problem on these platforms: leveling the torsion-bar suspension on an HD truck often causes the upper control arm to contact the frame stop at full droop. These fabricated steel arms provide additional clearance and a spring-loaded ball joint that maintains consistent preload through the arc of travel.
Owners with Duramax-equipped trucks consistently report that these arms restore the stock-like ride quality that was lost when they cranked the torsion bars. The install is a straightforward bolt-on affair that takes about 1.5 hours per side, and no modifications to the frame or brake lines are required. The arms are heavy at 19.5 pounds per pair, but that mass contributes to long-term durability under the extreme weight of a diesel front end.
The flat silver-gray finish shows dirt quickly, and some owners recommend painting the arms before installation to make cleaning easier. A small number of installs on 2014+ 3500 trucks have required minor grinding on the control arm mount for full clearance at the rear of the arm — check your specific year’s frame casting before committing to the install.
Why it’s great
- Spring-loaded ball joint maintains preload through travel arc
- Designed specifically for heavy-duty GM torsion-bar trucks
- No modification required for standard level/lift installs
Good to know
- May require minor grinding on 2014+ 3500 frame mounts
- Finish collects dirt quickly — painting recommended
- Steel construction adds significant unsprung weight
7. Freedom OffRoad Front Upper Control Arms (FO-G701FU)
The Freedom OffRoad arm is a no-nonsense tubular steel design built for GM 1500 trucks with 2–4 inches of lift. The 1.5-inch DOM tubing is gusseted at the frame mount and ball joint boss, and the arms come with provisions for brake line and ABS wire routing — a detail that simplifies the install compared to arms that skip this feature.
The hardened rubber bushings reduce deflection and maintain alignment better than soft factory bushings, and the OEM-style ball joints are serviceable. Owners who installed these on 2000s-era Suburbans and Tahoes report that the highway wander common after leveling kits was completely eliminated. The arms bring the alignment back into factory spec without fighting the adjustment range.
Ball joint longevity is the weak spot here. A significant number of owner reviews report ball joint failure within 6–12 months, with one failure happening at just 3 months. The ball joints are neither greaseable nor metal-on-metal, which limits their service life on a daily driver that sees any real mileage. If you choose these, consider them a 2-to-3-year component rather than a lifetime part, and budget for replacement ball joints down the road.
Why it’s great
- Gusseted 1.5-inch DOM tubing for structural rigidity
- Brake line and ABS wire provisions for clean routing
- Restores factory alignment spec on 2–4 inch lifts
Good to know
- Ball joints prone to failure within 6–12 months
- Ball joints are not greaseable
- No castle nut or cotter pin on ball joint taper
8. KSP 2-4inch Upper Control Arms for F-150 (2nd Gen)
For F-150 owners who need lift geometry correction on a tighter budget, KSP’s second-generation upper control arm delivers the essential fix without the premium price tag. The MIG-welded tubular steel frame is robust, and the polyurethane bushings are pre-greased and easy to install. The 2nd-generation design increased the pipe angle to allow a 2-inch lift without changing the shock absorbers.
Real-world owners report that these arms are massive and durable for the price. The included spare ball joint, extra grease fitting, and bolts are a nice bonus — you can rebuild the joint without ordering separate parts. The arms corrected negative camber on F-150s with 3-inch leveling kits, and the nylon bushings cycled smoothly with the supplied grease. Alignment shops were able to hit factory specs without fighting the adjustment range.
The copper grease zerks are easy to snap if over-tightened, so go easy on them. The conservative stock wheels (ET44) may rub the arm body, requiring at least 1.5-inch wheel spacers or aftermarket wheels with a 0 offset. Factor that into your total cost. The 12-month free replacement on the ball joint is good, but the 1-year overall warranty is shorter than many competitors.
Why it’s great
- Budget-friendly entry into corrected geometry for F-150
- Includes spare ball joint, grease, and hardware
- Massive tubular steel build inspires confidence
Good to know
- Stock wheels will rub — spacers or aftermarket rims required
- Copper zerks snap easily if over-tightened
- Only 1-year manufacturer warranty

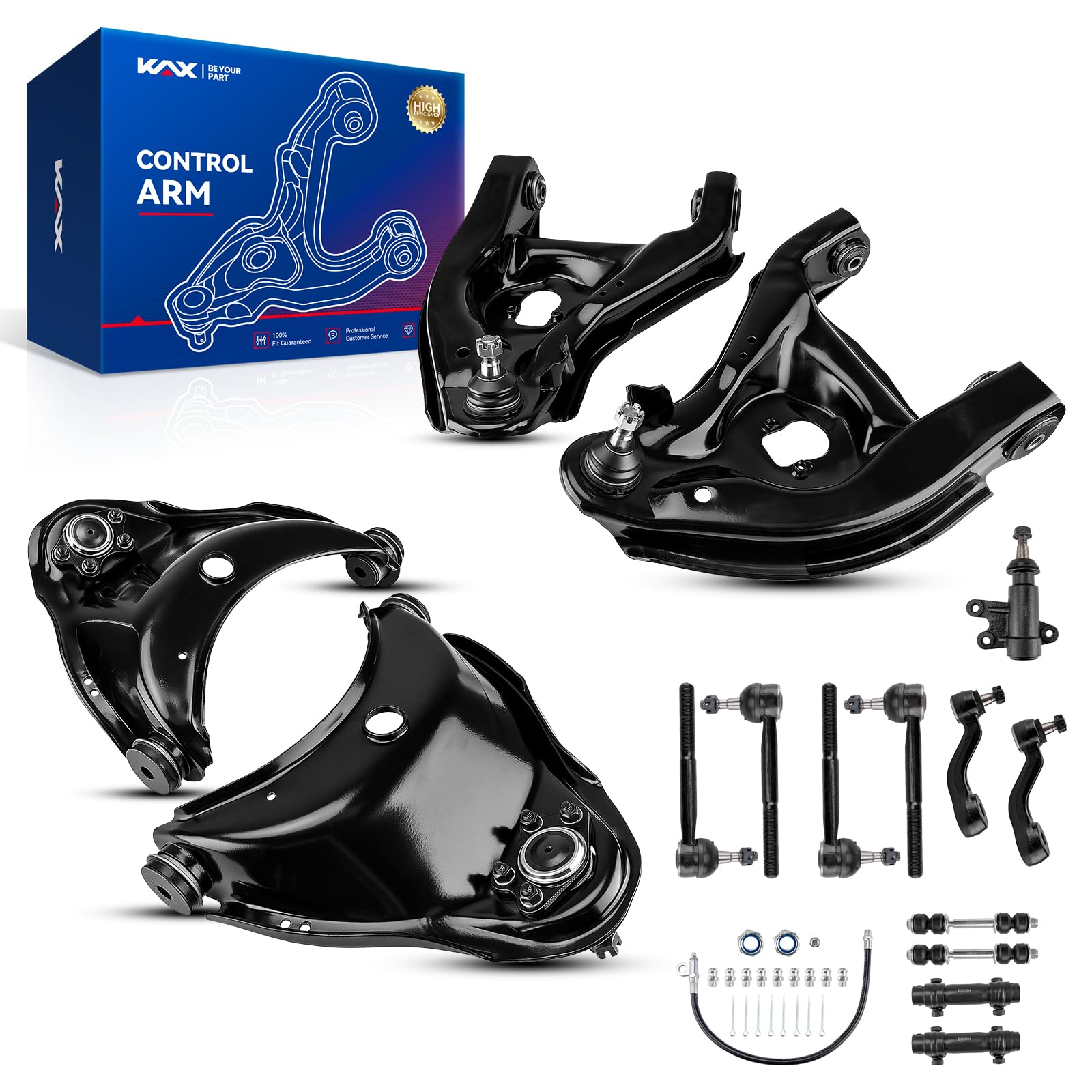

9. KAX Front Suspension Upper Lower Control Arms (C1500/C2500)
The KAX kit is unique in this guide because it does not just replace the upper arms — it replaces the entire front suspension assembly for Chevrolet/GMC OBS trucks. The 15-piece kit includes upper and lower control arms, inner and outer tie rods, idler arm, pitman arm, and sway bar end links. For someone rebuilding a 1993–2000 C1500 or C2500 front end, this is a one-box solution that avoids piecemeal ordering.
The control arms themselves are made from alloy steel with optimized bushings that resist noise and road grime. The ball stud shape is engineered for fatigue life in heavy trucks, and the kit is designed to reduce bump steer and prevent premature tire wear. Owners of GMT400-platform trucks report that the parts fit well and mounted smoothly — unusual for aftermarket suspension components that often require filing or hammering to align.
This kit is not designed for lifted trucks per se. It is best suited for stock-height or mildly lifted (under 2 inches) trucks where the original control arms are worn out. The ball joint angle is not corrected for a significant lift, so exceeding 2 inches will still cause binding. For a budget rebuild of a classic OBS truck that sits close to stock height, this is an exceptional value. For a true lifted application, look at the dedicated lift arms elsewhere in this guide.
Why it’s great
- Complete 15-piece front-end kit in one box
- Alloy steel construction with fatigue-optimized ball studs
- Parts fitment is reliable for GMT400 platforms
Good to know
- Not designed for lifts over 2 inches — no angle correction
- One of the nine arms in the kit arrived slightly bent in one report
- 2-year warranty requires saving proof of purchase
FAQ
Do I need upper control arms for a 2-inch leveling kit?
How much caster adjustment do I need after a 3-inch lift?
What is the difference between POM ball joints and metal-on-metal ball joints?
Can I install lifted control arms on a stock-height truck?
How often should I grease aftermarket control arm ball joints?
Final Thoughts: The Verdict
For most users, the control arms for lifted trucks winner is the Rough Country Forged Upper Control Arms (19401A) because the forged aluminum construction offers the best balance of strength, weight savings, alignment adjustability, and warranty coverage at a price that sits in the middle of the premium tier. If you need maximum articulation for hard off-road use on a Tacoma or 4Runner, grab the Specialty Products Company 25470 for the industry-leading 80° ball joint and extra caster range. And for a heavy-duty diesel truck that needs a leveling correction without sacrificing durability, nothing beats the Kryptonite Upper Control Arm Kit — the steel frame and greasable poly bushings will outlast the truck itself.
