Our readers keep the lights on and my morning glass full of iced black tea. As an Amazon Associate, I earn from qualifying purchases.7 Best CNC Router Bits For Wood | 1/4″ Shank Carving Mastery

Check Price on Amazon

This eight-bit collection from SpeTool delivers the most versatile starting lineup for wood CNC work. The set includes tapered ball nose bits for 3D carving, up-cut and down-cut spirals for clean slotting, and 60/90-degree V-bits for lettering and sign making. Every bit is solid carbide with a 1/4-inch shank, giving you the rigidity to cut hardwoods like oak and walnut without deflection.

Customer feedback repeatedly highlights the sharpness out of the box—bits require little to no break-in period on softwood or MDF. The down-cut spiral leaves a crisp top surface on plywood, while the up-cut bit clears chips fast during deep pocket passes. Several users noted that the set is an ideal entry point for CNC newcomers who need variety without buying individual bits at premium prices.

One trade-off: the 1/4-inch shank limits use to routers and spindles with a compatible collet or adapter. Owners of 1/8-inch collet machines (common on smaller desktop CNCs) will need a collet reducer. Overall, this set balances breadth and build quality at a fair average cost per bit.

Check Price on Amazon

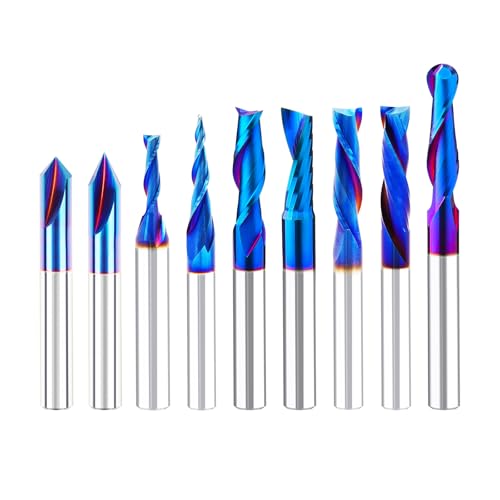

With nine pieces covering up-cut, down-cut, ball nose, and V-groove profiles, this SILIVN set offers the widest geometry range in the mid-tier price bracket. Each bit is crafted from solid carbide and finished with nano-blue coating to reduce friction and heat buildup during extended runs. The 1/4-inch shank provides enough mass for stable cutting in materials from pine and poplar to aluminum and copper.

Users report that the included 30-degree V-bit works well for detailed sign work, while the single-flute up-cut handles deep acrylic passes without melting the material. The nano-blue coating appears to resist gumming when cutting resin-rich woods like cherry. Several hobbyists mentioned that the bits arrived exceptionally sharp and maintained their edge through multiple projects without noticeable dulling.

The main limitation is the lack of a 1/8-inch shank option—machines with small collets will need an adapter. A few reviews noted that the ball nose bit could be more precise on very fine 3D reliefs, though performance is strong for general carving. This set is a solid pick for woodworkers who want variety and nano-coating at a reasonable investment.

Check Price on Amazon

When you need chip-free edges on both the top and bottom of plywood or double-sided laminates, a compression spiral bit is the answer—and this SpeTool model delivers exactly that. Its 3/8-inch cutting diameter with a 1-1/4-inch flute length handles dados, mortises, and through-cuts in materials up to 1 inch thick. The TAC coating extends tool life by reducing heat, and the four-flute design provides a smooth, shear-like finish.

Builders report that the bit slices through white oak and Baltic birch ply with minimal burning, even at moderate feed rates. The compression geometry (up-cut near the tip, down-cut near the shank) pulls chips upward from the bottom while pressing the top fibers down, eliminating edge fraying. Several users noted that shallow passes under 3/16-inch depth engage only the up-cut portion, so full-depth cuts are required to unlock the compression advantage.

The 1/2-inch shank demands a router or spindle with a compatible collet, which is standard on most industrial and pro-sumer CNCs. At this price point, you’re paying for premium carbide and coating technology that visibly outlasts uncoated alternatives. If you cut sheet goods regularly, this bit pays for itself in reduced sanding time.

Check Price on Amazon

For CNC operators focused on fine lettering, detailed relief carving, and clean V-grooves, this five-bit set from SILIVN covers the essential angle range from a sharp 15 degrees up to a wide 90 degrees. The 15-degree bit excels at tight kerf lines in small text, while the 60- and 90-degree bits produce classic V-carve profiles for signs and decorative panels. Each bit features blue nano-coating on high-speed steel, which adds surface hardness and reduces heat during extended cuts.

Users report that the 20-degree flat-cut tip works well for outlining letters in wood signs, giving a clean shoulder without tear-out. The 30-degree bit is a general-purpose workhorse for complex designs and has been used successfully on both softwood and hardwood without chipping. Several beginners noted that the set allowed them to experiment with different angle effects without buying individual bits at higher costs.

The main drawback is the high-speed steel substrate—while the nano-coating helps, these bits will dull faster than solid carbide alternatives when cutting abrasive materials like MDF or plywood with heavy glue content. They are best reserved for natural hardwoods and softwoods where edge life is less critical. For the price, this set is a practical addition for detail work.

Check Price on Amazon

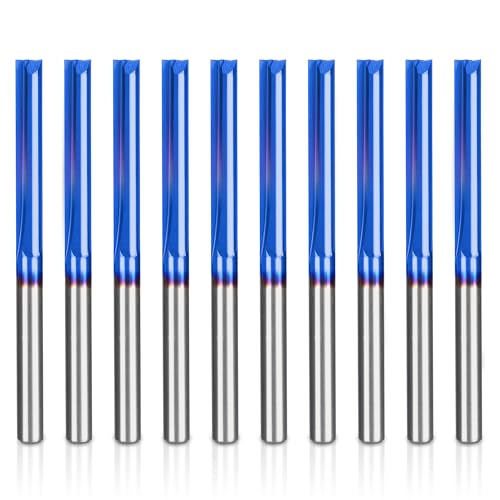

If you burn through straight bits cutting MDF, softwood, or chipboard, this ten-pack from HQMaster offers a low per-bit cost that makes replacements painless. Each bit is tungsten steel with a 1/8-inch shank and a 22mm flute length—ideal for shallow slotting, grooving, and pocketing on desktop CNC machines. The two-flute design with mirror-polished flutes helps prevent chip buildup and keeps cuts smooth.

Users report that these bits handle 1/4-inch deep cuts in pine at 100 inches per minute without burning, and one bit can machine roughly ten hours of continuous slotting before dulling noticeably. The bits arrive in a plastic storage case that protects the cutting edges during transport. Several woodworkers noted that the bits are sharp enough for screen-door spline routing and light production work in soft materials.

The tungsten steel is less brittle than solid carbide, which reduces breakage on aggressive feeds, but it also dulls faster when cutting hardwoods like oak or maple. Expect to replace bits more frequently than carbide equivalents. The 1/8-inch shank fits most small CNC collets perfectly, though users with larger routers will need an adapter. For high-volume MDF work, this pack is hard to beat on cost efficiency.

Check Price on Amazon

This ten-bit set from FoxAlien supplies five different V-bit angles—20, 30, 45, 60, and 90 degrees—with two copies of each, making it a practical option for sign makers and engravers who need backup bits for long runs. The triangular V-shape geometry helps with chip removal during 2D and 3D carving, and the nano-blue coating adds a layer of wear resistance. Each bit uses a 1/8-inch shank, fitting most hobbyist CNC spindles.

Users have successfully engraved stainless steel with these bits by reducing feed rate and adding cutting oil, which speaks to the carbide’s edge holding capability. On wood, the 60- and 90-degree bits produce clean V-grooves for lettering, while the narrower angles handle fine detail. The bits arrive well-packaged and appear consistent in tip sharpness across all angles.

The 0.1mm tip is extremely fine, which works for intricate work but can break under aggressive feeds or heavy climb milling. Several reviews noted that the coating helps reduce heat buildup, but the bits are still best suited for lighter engraving passes rather than heavy roughing. If you need a large variety of V-angles at a low per-bit cost for sign and acrylic work, this set delivers.

Check Price on Amazon

For mounting plaques, shelves, or cabinets with hidden fasteners, a dedicated keyhole bit is the right tool—and this Freud model is a reference design. Its 25/64-inch overall diameter cuts the enlarged entry slot, while the smaller 3/16-inch shaft forms the narrow channel that holds the screw head captive. The bit works on solid hardwoods, softwoods, plywood, and composites, making it versatile for both shop and jobsite use.

Users on 4×8 CNCs report that the bit drills straight down and produces a perfect hanging slot without pulling the workpiece from the base, a problem common with generic keyhole bits. The Perma-Shield coating reduces resin buildup and keeps the carbide cutting edge sharp across multiple uses. Several reviewers noted that heat-tempered steel construction gives this bit an advantage over cheaper imports that can warp under lateral load.

The 1/4-inch shank fits most trim routers and CNC spindles, though you’ll need a collet adapter for 1/8-inch machines. A minor caveat: the downward cutting action requires slower feed speeds and cooling pauses between cuts to extend bit life, especially in dense hardwoods. For its specific niche, this bit delivers durability and precision that justify its premium positioning.
