The line between a clean dovetail joint and a chipped, burned edge is measured in microns of spindle runout and tenths of a millimeter of gantry flex. A loose V-slot wheel or a single ball screw bearing can turn a weekend sign project into a scrap pile of wasted hardwood. Buying a CNC router for woodworking means obsessing over the frame material, the lead screw type, the linear guide system, and the spindle power—because those specs decide whether you cut accurate mortises or fight constant recalibration.
I’m Mohammad Maruf — the founder and writer behind WellFizz. I have analyzed over 200 hours of woodworker feedback and mechanical spec sheets to find which CNC routers deliver real, repeatable accuracy for hobbyists and pro shops alike.
Whether you are carving cabinet doors, inlaying chessboards, or milling aluminum fixtures for your jigs, the best cnc for woodworking depends on your material thickness, workspace size, and how much post-processing you are willing to do.
How To Choose The Best CNC For Woodworking
A woodworking CNC machine is a long-term investment in precision. Choosing the wrong guide system or underpowered spindle leads to chatter, missed steps, and constant rework. Focus on the mechanical structure and control system first, then look at the spindle and software compatibility.
Frame Rigidity and Linear Motion Components
The frame absorbs cutting forces. Aluminum extrusion with C-beam or gantry plate construction resists torsion better than open T-slot profiles. On the motion side, dual HG15 linear rails on all three axes paired with 1204 ball screws deliver sub-0.01mm repeatability. V-slot wheels and lead screws are cheaper but introduce backlash and wear unevenly under heavy 1/4-inch bit loads in oak or maple.
Spindle Power and Speed Control
For wood, a minimum of 400W to 800W with a constant-speed controller prevents bogging during deep passes. Digital display spindles with soft-start circuitry (like the 710W units on several Genmitsu and AnoleX machines) let you run at 12,000 to 24,000 RPM without thermal drift. Trim routers like the Dewalt DWP611 are popular upgrades because they offer 1.25 HP and replaceable brushes, but they lack electronic speed stabilization compared to dedicated VFD spindles.
Control Board and Software Ecosystem
GRBL 1.1 or the newer GRBL 1.3a (ESP32-based) provides the broadest compatibility with free CAM tools like Candle, UGS, and Easel. If you plan to run tool changes or use a 4th axis, make sure the board supports M7/M8 coolant commands and has a dedicated rotary port. Closed-loop stepper drivers add step-loss protection at higher feed rates, which is especially useful for long 3D relief carves.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| FoxAlien XE-Ultra 8080 | Large-Format | Large sheet goods, 4×4 projects | 33″x33″ work area, 16mm ball screws | Amazon |
| Carvera Air Desktop CNC | Enclosed Precison | Multi-material prototyping, 4th axis | 10-sec tool changer, auto probing | Amazon |
| AnoleX 4030-Evo Ultra 2 | Metal-Ready | Aluminum + hardwood milling | HGH-15 dual rails, 1204 ball screws | Amazon |
| SainSmart Genmitsu 4040-PRO MAX | Mid-Range All-Rounder | Beginner to intermediate wood carving | 710W trim router, linear guideways | Amazon |
| FoxAlien Masuter 3S | Closed-Loop Value | Reliable step-loss free operation | NEMA23 closed-loop, 2.2 Nm torque | Amazon |
| Genmitsu 3030-PROVer Ultra | Compact Precision | Small part precision, crisp corners | HG15 dual rails, ±0.03mm accuracy | Amazon |
| Genmitsu PROVerXL 4030 | Expandable Platform | Growing hobbyists, multiple upgrades | 15.7″x11.8″ area, C-beam frame | Amazon |
| Twotrees TTC450 Ultra | Touchscreen Beginner | Offline operation, ease of setup | 500W spindle, 3.5″ IPS touchscreen | Amazon |
| NymoLabs NBS-6040 | Mid-Size Workhorse | Medium volume production runs | 24″x16″ area, 710W custom spindle | Amazon |
| Maker Made M2 | Wall-Mounted Giant | 4×8 sheet goods, huge projects | Up to 32 sq ft, wall-mounted design | Amazon |
| xTool P2S CO2 Laser | Laser Cutter Alternative | Thin wood, acrylic, glass engraving | 55W CO2 laser, 600mm/s engrave speed | Amazon |
In‑Depth Reviews
1. FoxAlien XE-Ultra 8080
The XE-Ultra 8080 is a massive leap for woodworkers who need to cut full sheets without stepping up to a heavy industrial gantry. Its 33x33x4.72-inch work envelope handles cabinet doors, large signs, and nested part layouts in one setup. The 16mm ball screws on X and Y axes with HG15 linear rails provide the rigidity to take 1/4-inch climb cuts in hard maple without deflection.
Closed-loop NEMA 23 motors rated at 2.6 Nm keep step-loss at zero even during aggressive 2000 mm/min passes. The inductive limit switches with 0.5ms response add a layer of crash protection that passive mechanical switches cannot match. Build quality is consistent with FoxAlien’s previous generation, and the aluminum 46x80mm frame resists the torsion that plagues lighter 20-series extrusion machines.
The board uses a 32-bit controller with GRBL compatibility, and reports from users confirm it works with Easel, VCarve, and gSender out of the box. The only consideration is the physical footprint: the base requires a dedicated table roughly 4 feet square, and the 40 kg shipping weight demands two people for setup.
Why it’s great
- Industry-leading work area for a benchtop frame
- 16mm ball screws with dual linear rails eliminate chatter
- Closed-loop motors provide true step-loss protection
Good to know
- Heavy machine requires a sturdy dedicated table
- Spindle not included; must supply 65mm router or 1.5kW VFD
2. Carvera Air Desktop CNC with 4th Axis
The Carvera Air is a self-contained desktop CNC mill designed for users who want an enclosed, turnkey experience. Its 10-second automatic tool changer and integrated 4th axis make it one of the most versatile compact machines on the market. The 0–13,000 RPM closed-loop spindle maintains constant torque, and the runout under 0.01mm allows clean 3D contours in hardwood and brass.
Auto-probing and automatic bed leveling eliminate manual Z-zeroing for each new material. The 96-pound machine sits on any sturdy workbench and produces low vibration even during climb milling in aluminum. The Makera CAM software works on Windows and macOS and integrates with Fusion360 and VCarve Pro for advanced CAM workflows.
Some users report slow .nc file uploads over WiFi, and the rotary module only uses three axes (X, Z, rotation) without Y-axis movement, which limits undercut geometry. But for a shop that values safety, enclosure, and repeatable precision without constant tweaking, the Carvera Air is a strong option.
Why it’s great
- Fully enclosed with automatic tool changer for complex jobs
- 4th axis and auto-leveling reduce setup time significantly
- Cross-platform software support with professional CAD integration
Good to know
- 4th axis limited to 3-axis simultaneous movement
- Slow CAM processing for high-detail toolpaths
3. AnoleX 4030-Evo Ultra 2
The 4030-Evo Ultra 2 is built for the woodworker who also cuts aluminum fixtures and brass inlays. Each axis uses HGH-15 dual linear rails and 1204 ball screws with dual-bearing support at both ends, reducing high-frequency vibration during heavy cuts. The 800W trim router with six speed settings (8,000–24,000 RPM) and a repeatability accuracy of ±0.005mm puts it in a class above typical 300W desktop spindles.
The GRBL 1.3a (ESP32) firmware adds M07/M08 coolant control and a 4th axis port, making it one of the few machines at this price to support closed-loop stepper upgrades natively. The solid gantry and 6061 aluminum cutting accuracy of ±0.02mm have been confirmed by owners milling aluminum brackets and hardwood gears.
A minor quibble: the web GUI has noticeable input delay, and the E-stop switch resets Z-zero when triggered. Several users recommend upgrading to closed-loop motors immediately. The unit ships with a detailed paper manual, and the assembly video covers the few alignment-critical steps for the gantry.
Why it’s great
- Industrial-grade HGH-15 rails with ball screws on all axes
- GRBL 1.3a firmware with advanced macro and coolant support
- 800W trim router delivers reliable power for hardwoods and aluminum
Good to know
- Web GUI has noticeable latency; recommend direct USB connection
- E-stop loses Z-zero position; needs careful re-homing
4. SainSmart Genmitsu 4040-PRO MAX
The 4040-PRO MAX offers a 15.75×3.07-inch work area with a linear guideway structure on the X and Z axes, transitioning from the older V-slot design that limited stability. The 710W digital display trim router handles softwoods, hardwoods, and acrylic with consistent power, and the 100mm pass height allows for engraving thicker stock than previous Genmitsu generations.
The spoilboard integrates a central aluminum T-track that prevents MDF sagging during long cuts. Several users report that the machine produces clean engraving and accurate cutouts after a spoilboard install, and the GRBL compatibility works well with Easel for beginners. The 24-volt power supply keeps the control board cool during extended operation.
One recurring concern is the two-piece bed design, which can create a slight seam if not aligned perfectly. The WiFi module has been reported as unstable by some owners, causing lost zero positions during multi-tool jobs. Using a direct wired USB connection avoids this issue entirely.
Why it’s great
- Linear guideways on X and Z for smoother motion than lead screws
- Aluminum T-track reinforced spoilboard resists sagging
- 100mm pass height accommodates thicker material blanks
Good to know
- Two-piece bed needs careful alignment to avoid a seam
- WiFi module can lose connection; use USB for reliability
5. FoxAlien Masuter 3S
The Masuter 3S is one of the most beginner-friendly machines on this list, yet it comes with closed-loop NEMA23 motors that eliminate step-loss during long 3D carves. The 400W spindle is adequate for softwoods and light passes in hardwood, but the real value lies in the 2.2 Nm torque of the motors, which let you run at 10,000 mm/min rapid moves without losing position.
The Z-axis uses dual HG15 linear rails for stability, and the 2360mm reinforced extrusions keep the gantry rigid up to the full 15.75-inch travel. A built-in support for the 4th axis rotary module means round work like chair legs or tumbler engravings are within reach. The upgraded controller box has dust-resistant housing and tactile shortcut buttons for common commands.
Several users have upgraded to 1.5kW spindles and 40W lasers using the 65mm clamp mount. The machine is nearly plug-and-play: assembly takes about 30 minutes, and the community Facebook group is active with support. The only drawback is that the 400W spindle maxes out at 10,000 RPM, which limits finish quality in very small diameter bits.
Why it’s great
- Closed-loop NEMA23 motors prevent missed steps without tuning
- Dust-proof controller box with shortcut buttons improves workflow
- Strong community support and easy 4th axis upgrade path
Good to know
- 400W spindle limited to 10,000 RPM max
- Does not include ER11 1/4-inch collet or 1/8-inch bits
6. Genmitsu 3030-PROVer Ultra
The 3030-PROVer Ultra packs a 710W digital display spindle into a compact all-metal chassis that fits on a small bench. The ±0.03mm precision comes from the HG15 dual linear rails and 1204 ball screws on every axis, along with high-torque NEMA 23 stepper motors. The servo-style digital spindle readout lets you monitor load in real time and avoid stalling during deep cuts in walnut or cherry.
Assembly is split into two pre-assembled modules that significantly reduces setup time—most users report under 10 minutes of actual assembly. The Genmitsu APP allows remote monitoring and troubleshooting, and compatibility with Candle, UGS, and Easel means no software lock-in. The machine has been tested extensively on basswood, oak, and aluminum sheet with consistent results.
The noise level is higher than average due to the trim router cutting sound, and the limit switches have been reported to trigger intermittently when cutting metal. Some units arrived with shipping damage, so inspect the packaging immediately.
Why it’s great
- Digital spindle display prevents overheating and underpowering
- 10-minute assembly with pre-joined gantry and base modules
- Professional ±0.03mm repeatability with dual linear rails
Good to know
- Audible noise is higher than VFD-based spindles
- Z-axis touch probe requires verified cable connection to avoid crashes
7. Genmitsu PROVerXL 4030
The PROVerXL 4030 is the platform that grows with you. The base model offers a 15.7×11.8-inch work area, but upgrade kits expand it to 24×24 inches and even 40×40 inches. The C-beam frame and Y-axis dual leadscrew drive deliver more rigidity than the single-screw systems found on cheaper 3018-style machines, and the NEMA 23 motors handle a 300W spindle (included) or a drop-in Dewalt DWP611 upgrade.
Pre-assembled XYZ modules make the first build straightforward, and the included Carveco Maker subscription helps beginners transition from 2D patterns to 3D carving. The Z-axis uses an optical axis drive for better vertical stability than V-slot wheels. Users who upgraded to a 1 HP router report excellent results on acrylic, MDF, and aluminum.
Two common issues: the main power wire uses thin gauge insulation that can chafe against the drag chain, and the laptop USB driver compatibility can cause intermittent communication failures on certain Windows builds. Both are known and well-documented with community fixes and vendor support.
Why it’s great
- Modular upgrade path from 4030 to 1000mm x 1000mm
- C-beam frame with Y dual leadscrew for reduced racking
- Drop-in Dewalt DWP611 router mount included
Good to know
- Main power wire may need 14ga silicone replacement
- USB driver conflicts on some laptops; recommend dedicated controller PC

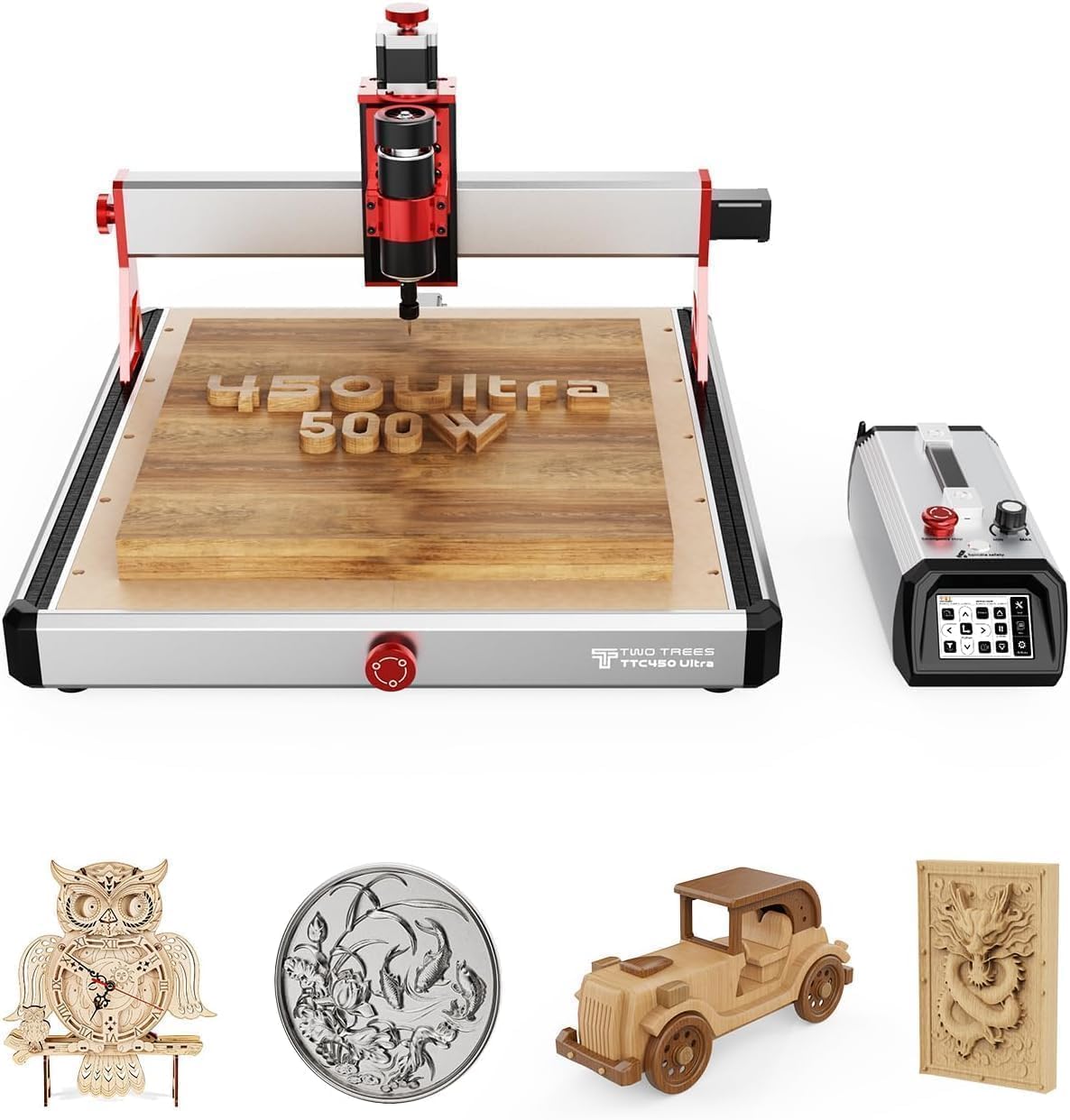

8. Twotrees TTC450 Ultra
The TTC450 Ultra brings a 500W spindle and a 3.5-inch IPS capacitive touchscreen to the desktop CNC segment. The all-metal chassis uses MGN12H dual linear rails and T8 lead screws, achieving X/Y positioning accuracy of 0.01mm and Z-axis precision of 0.0025mm. The engraving accuracy of ±0.05mm over 100mm makes it suitable for detailed inlay work and small signage.
The integrated LKS CNC V1.0 motherboard supports GRBL firmware and can switch between CNC and laser modes. Offline operation via TF card and USB means you can run jobs without a tethered computer. A 4th axis port, WiFi interface, and external handwheel connectors are reserved for future expansion. The machine arrives 90% pre-assembled and includes test engraving material and basic bits.
Some reviews are from laser engraver users who purchased the TTC450 as a light-duty CNC, which skews the review data. For woodworking specifically, the T8 lead screws limit rapid feed rates compared to ball screw machines, but for the price, the accuracy and touchscreen interface are hard to beat.
Why it’s great
- Integrated 3.5-inch touchscreen with offline control
- 500W spindle with broad ER11 collet range (0.5-7mm)
- WiFi/Bluetooth and 4th axis expansion ready out of box
Good to know
- T8 lead screws limit rapid traverse speed compared to ball screws
- Customer reviews mixed with laser-only buyers; check intended use
9. NymoLabs NBS-6040
The NBS-6040 occupies the sweet spot between desktop 4030-size machines and large-format industrial units. The 24.12×16.21×4.80-inch work area handles 2×4-foot panels and medium production runs without the floor space requirement of a full gantry. Every axis uses linear rails and ball screws, and the custom 710W trim router includes soft-start and constant-current drive to prevent stalling during variable-depth cuts.
The GRBL v1.1 32-bit board supports 80 KHz pulse frequency for smooth high-speed engraving, and the expansion ports for 4th axis, MPG, air pump, and dust boot give the machine long-term flexibility. The modular design enables 20-minute assembly, and the 2.8-inch TFT offline controller allows full manual operation without a PC.
One notable issue: the ER11 collet grips range from 1 to 8mm, but the 1/4-inch collet is not included. Several users also noted Candle software compatibility quirks and recommend using USB connection over microSD for stable file transfers. Customer support is responsive, with fast spindle replacements reported.
Why it’s great
- Large 24×16-inch work area fits standard project boards
- Custom 710W router with soft-start avoids stalling
- Linear rails and ball screws on every axis for rigidity
Good to know
- 1/4-inch collet not included; 1/8-inch and 1-8mm collets provided
- MicroSD file transfer can be unreliable; prefer USB connection
10. Maker Made M2
The M2 is a wall-mounted CNC that trades the heavy steel gantry for a suspended design, giving you cutting area up to 32 square feet on a minimal floor footprint. It uses a lead screw Z-axis with a dust collection port and is compatible with DeWalt611, Bosch Colt, and Makita RT0700CX trim routers. The Makerverse open-source software is derived from CNCjs and tailored to the M2’s geometry.
The M2 cuts sheets of wood, plastic, foam, and non-ferrous metal up to 4×8 feet, making it one of the most affordable ways to cut full cabinet parts and large signs. The sled-based design allows the router to float across the sheet, and the cutting variance is rated at 1mm, which is acceptable for roughing passes and sign blanks but not for fine joinery.
This machine is not a drop-in desktop CNC. It requires building a rigid wall frame, calibrating the chain tension, and understanding the limitations of a suspended motion system. Reviews are polarized: users with CNC experience praise the value; beginners report frustration with software setup and chain-related inaccuracy. It is best suited for makers willing to tune and maintain the system.
Why it’s great
- Massive 4x8ft work area with minimal floor footprint
- Open-source software receives active updates
- Affordable entry to large-format sheet cutting
Good to know
- Requires mechanical aptitude for setup and calibration
- 1mm variance limits precision for fine furniture joinery
11. xTool P2S 55W CO2 Laser Cutter
The xTool P2S is a CO2 laser cutter, not a spindle-based CNC, but it earns a spot in this guide for woodworkers who need fast, precise cutting and engraving on thin materials. The 55W CO2 tube cuts 20mm acrylic and 18mm black walnut in a single pass. The dual 16MP cameras provide real-time previews, and the LiDAR autofocus maintains 0.001-inch focal precision across the 26×14-inch work area.
The P2S supports 3D curved cylinder engraving, passthrough for materials up to 118 inches long, and a riser base for objects up to 8.4 inches tall. The included XCS software handles batch processing for serial numbers and custom designs. Fire detection, auto-lock, and emergency stop make it safe for unattended operation.
Laser cutting differs fundamentally from CNC routing: lasers burn kerfs wider than router bits, create charred edges on wood, and cannot cut thick stock. However, for laser-specific projects such as inlay veneers, box joints in 1/8-inch plywood, and detailed surface engraving, the P2S outpaces any spindle-based machine in speed and detail.
Why it’s great
- Fast 600mm/s engraving speed for production batch work
- Dual cameras and LiDAR autofocus ensure first-cut accuracy
- Expanded work area with passthrough for long materials
Good to know
- CO2 laser burns wood edges; not suitable for joinery
- Heavy unit at 130 lbs; requires sturdy table and ventilation
FAQ
Is a 300W spindle enough for hardwood cabinet doors?
Do I need a 4th axis for woodworking?
Can I use a laser cutter instead of a CNC for wood projects?
Final Thoughts: The Verdict
For most users, the best cnc for woodworking winner is the FoxAlien XE-Ultra 8080 because it balances a huge 33-inch work area with closed-loop motors and 16mm ball screws at a price that undercuts most large-format competitors. If you want an enclosed, automated workcell with tool changes and 4th axis capability, grab the Carvera Air. And for woodworkers who need metal-milling rigidity for aluminum fixtures and hard inlays, nothing beats the AnoleX 4030-Evo Ultra 2.
