You are paying to heat and cool rooms where the air just leaks out through every tiny crack. A closed cell spray foam kit fixes that — it expands to fill every gap and hardens into a rigid, airtight barrier that fiberglass batts simply cannot match. But picking the right one is not just about the brand name. You need to look at the coverage area, the R-value (the number that tells you how well it blocks heat flow), and whether the box actually includes all the gear you need to start spraying right away.
I’m Mohammad Maruf — the co-founder and writer behind WellFizz. This guide is built by comparing the manufacturers’ published specifications and the patterns across verified customer reviews, so you get each pick’s real strengths and trade-offs instead of marketing spin.
Whether you are sealing a new workshop, a crawl space, or an addition, finding the right best closed cell spray foam kit means matching your project size to the right coverage and R-value without overpaying for features you do not need.
How To Choose The Best Closed Cell Spray Foam Kit
Closed cell foam is dense stuff. It acts as both insulation and a vapor barrier, meaning it blocks air movement and moisture at the same time. The wrong choice for your project is either paying for a premium two-component system when a one-component kit would do, or buying a one-component kit that runs out halfway through your garage. Here is what to check before you click buy.
Coverage: Matching the Kit to Your Space
Every kit tells you its coverage in board feet — that is the total square footage it can cover at a 1-inch thickness. A 240 board foot kit, for example, can fill 240 square feet of wall cavity one inch deep. If you need 2 inches of thickness (common for closed cell foam’s optimal R-value), you cut that coverage in half to 120 square feet. Measure your project’s total wall or ceiling area and multiply by the depth you want, then compare it directly to the kit’s board foot rating. Buyers report that the Vega Bond V200 with its 200 board foot rating was perfect for sealing a crawl space, but they also note you should order 25% extra to account for the learning curve and waste.
One-Component vs. Two-Component Systems
Most kits you will find are one-component (also called single-component) systems — they come in aerosol cans that screw onto a reusable gun. You get 12 or 18 cans in a box with a gun and cleaner. They are portable, store easily, and are perfect for smaller jobs like a single room, a shed, or sealing around rim joists. Two-component systems, like the Froth-Pak 620, are a different beast. They come in two pressurized tanks (A and B) that mix at the nozzle. These are for serious square footage — think an entire basement or a large garage — and they cure faster, but they are heavy (117 pounds) and expensive. For the typical DIYer, a one-component kit is the smarter, more budget-friendly entry point.
R-Value and Fire Rating
R-value measures thermal resistance — the higher the number, the better it insulates. Closed cell foam kits typically deliver around R-5.66 to R-7 per inch. The common “R-11.32 at 2 inches” you see is just that R-5.66 figure doubled. For a wall, a target of R-13 to R-21 is common, which means 2.5 to 3.5 inches of closed cell foam. Fire rating is just as important: look for a “Class-A Fire Rated” certification (tested to ASTM E84 standards). This means the foam has a low flame spread and smoke development, which is a non-negotiable safety consideration for anything going inside your home’s walls or attic.
What’s in the Box: Kits vs. Cans Only
Saving money by buying just cans is a trap. A proper kit includes the dispensing gun, a foam cleaner, and often personal protective equipment (PPE) like gloves, goggles, and a work suit. The gun is the most important piece — it allows you to control the flow and pattern. Without it, you are stuck with a straw that makes a mess and wastes foam. The Kraken Bond and Sprayman kits come with a dual-nozzle system (one for vertical walls, one for overhead ceilings) which makes a real difference in usability. The cleaner is essential because once foam hardens inside the gun tip, that gun is ruined. Always buy the full kit, not the cans alone.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Akfix Thermcoat | Mid-Range | Balanced DIY / Pro | 240 board ft / R-11.32 at 2 in | Amazon |
| STANLEY Supercoat | Mid-Range | First-time DIY users | Includes full PPE suit | Amazon |
| Sprayman Spraycoat | Mid-Range | Versatile surface adhesion | 240 board ft / Dual nozzles | Amazon |
| Vega Bond SF001 | Value | Rim joist / gap filling | 29 oz cans / R-5.66 per inch | Amazon |
| Kraken Bond Fastcoat (12pk) | Premium | Mid-size room insulation | 288 board ft / R-5.66 per inch | Amazon |
| Kraken Bond Fastcoat (18pk) | Premium | Larger areas / value per can | 360 board ft / 18 cans | Amazon |
| Vega Bond V200 | Pro Grade | High R-value / quick cure | R-7 per inch / 200 BF | Amazon |
| FROTH-PAK 620 | Industrial | Full basement / garage | 2-component / 15′ hose | Amazon |
In‑Depth Reviews
1. Akfix Thermcoat Fire Rated Spray Foam Insulation Kit
240 board feet of coverage with a Class-A fire rating makes the Akfix Thermcoat the top pick for a serious DIYer who needs to insulate a single large room or workshop without hauling industrial-weight equipment.
You get an R-11.32 at 2 inches of thickness, and the 12 cans plus gun and cleaner weigh just 29 pounds — 4.9 pounds lighter per can than the Froth-Pak 620’s tank system, making it far easier to move around a job site. Buyers highlight its strong adhesion to wood, brick, concrete, and metal, but note a learning curve: the trigger knob controls flow depth, not just on/off, and a few users say you need practice to avoid thin passes.
For the price-to-coverage ratio and the included safety gear (gloves, goggles), it is the most well-rounded choice for a serious DIYer who wants one kit for a single big room or a workshop and wants to avoid the industrial weight of the Froth-Pak — this is the one to buy.
Why it’s great
- Class-A fire rated (ASTM E84) for safety
- Dual-nozzle system for vertical and overhead use
- Strong adhesion to many surfaces including PVC and metal
- Includes gun, cleaner, and PPE
Good to know
- Requires practice to dial in trigger flow setting
- Some cans may harden if stored more than 9 months
- Foam odor requires a respirator during application
2. STANLEY F 990P Supercoat Spray Foam Insulation Kit
The STANLEY Supercoat covers 168 square feet at 1 inch — 72 board feet less than the Akfix Thermcoat — making it the only kit in this guide that includes a full protective suit in the box, so it is the easiest route to a safe application without buying extra gear for smaller projects like a storage building or a single room rim joist sealing job.
Owners mention that 5 cans covered roughly 4 bays at 2-3 inches thick, and the included gun and cleaner performed well; one reviewer noted the fan spraying pattern uses cans faster than gap filling, so plan your technique. At 29 pounds for the 12-can pack, it is similarly portable.
Choose this over the top pick when your project is under 170 square feet and you want the lowest-friction start-to-finish experience — if you are a first-time user who values convenience and immediate safety gear over maximum coverage area, the STANLEY Supercoat is the smarter pick than the bigger-kit options.
Where it shines
- Full PPE suit, gloves, and glasses included
- Class-A fire rated (ASTM E84)
- Seamless monolithic application outperforms batts
Worth noting
- Coverage is 168 sq ft vs 240 sq ft on others
- Spray quality degrades in second half of the can
- Trimmed cured foam is very difficult to cut
3. Sprayman Spraycoat Fire Rated Spray Foam Insulation Kit
If you are insulating a room near a noisy road and need sound deadening along with thermal performance, the Sprayman Spraycoat is the one to consider — one buyer confirmed it blocked train noise completely after application. It matches the Akfix on coverage (240 square feet at 1 inch) and R-11.32 at 2 inches, but its real edge is a polyurethane formula that the manufacturer designed to resist cracking and shrinking over time, and which reportedly will not warp window or door frames.
Customers note it dries fast — about 1-2 minutes per can — so a whole project can take as little as 15 minutes. One reviewer who ordered in October 2023 and used it in November 2025 reported that expiration was not an issue; the cans worked great after two years. The dual-nozzle system (Nozzle A for walls, Nozzle B for ceilings) gives you control, and the UV and dimensional stability claims are supported by customer reports of no frame warping. For sealing around windows and doors where expansion must be controlled, the Sprayman is a stronger bet than the Akfix.
Its standout spec: a polyurethane formula that reportedly resists cracking, shrinking, and frame warping — and still fires perfectly after two years on the shelf.
What stands out
- Fast drying — 1-2 minutes per can
- Dual-nozzle system for walls and ceilings
- Resists cracking, shrinking, and UV color change
- Won’t warp window or door frames
The trade-offs
- Slightly more expensive per can than some rivals
- Some users report 2 out of 12 cans may not mix properly
- Requires good ventilation and a respirator

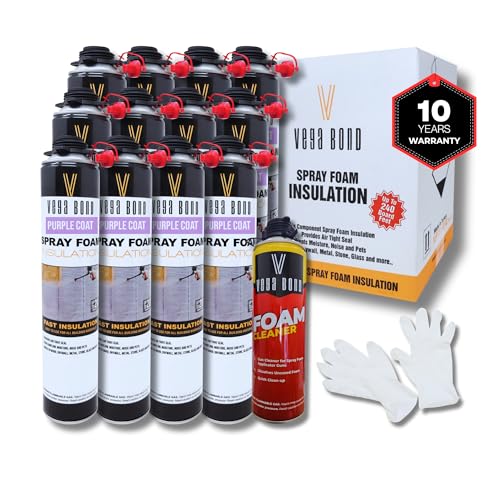

4. Vega Bond SF001 Purplecoat Closed Cell Spray Foam
The single number that matters most in this category is can size: the Vega Bond SF001 delivers 29 oz per can — 1.9 oz more than the standard 27.1 oz — which adds roughly 16 extra board feet across a 12-pack compared to standard-size kits. That extra material makes it the best pick for sealing rim joists or filling random gaps in an old house renovation, where every bit of coverage counts.
The catch is the R-value: R-5.66 per inch versus R-11.32 at 2 inches that the Akfix, STANLEY, and Sprayman offer. So you will need more thickness to reach the same thermal performance. Buyers also note the closed-cell foam expands “blobby” and often needs to be ground flush with studs before you can hang drywall — plan for extra cleanup time.
If your main goal is air sealing and moisture blocking rather than maximizing R-value per inch, the Vega Bond SF001 is a cost-effective, budget-friendly entry point compared to the larger kits, giving you a price-to-value read that favors coverage volume over thermal density.
The upsides
- Larger 29 oz cans for better per-can coverage
- Good for rim joist air sealing in old homes
- Self-expanding formula fills uneven gaps
- Performs well as a dew point barrier on roof decks
Keep in mind
- Lower R-value (R-5.66 per inch) than some competitors
- Expands “blobby” and requires grinding flush
- Dries spongier than two-part foams

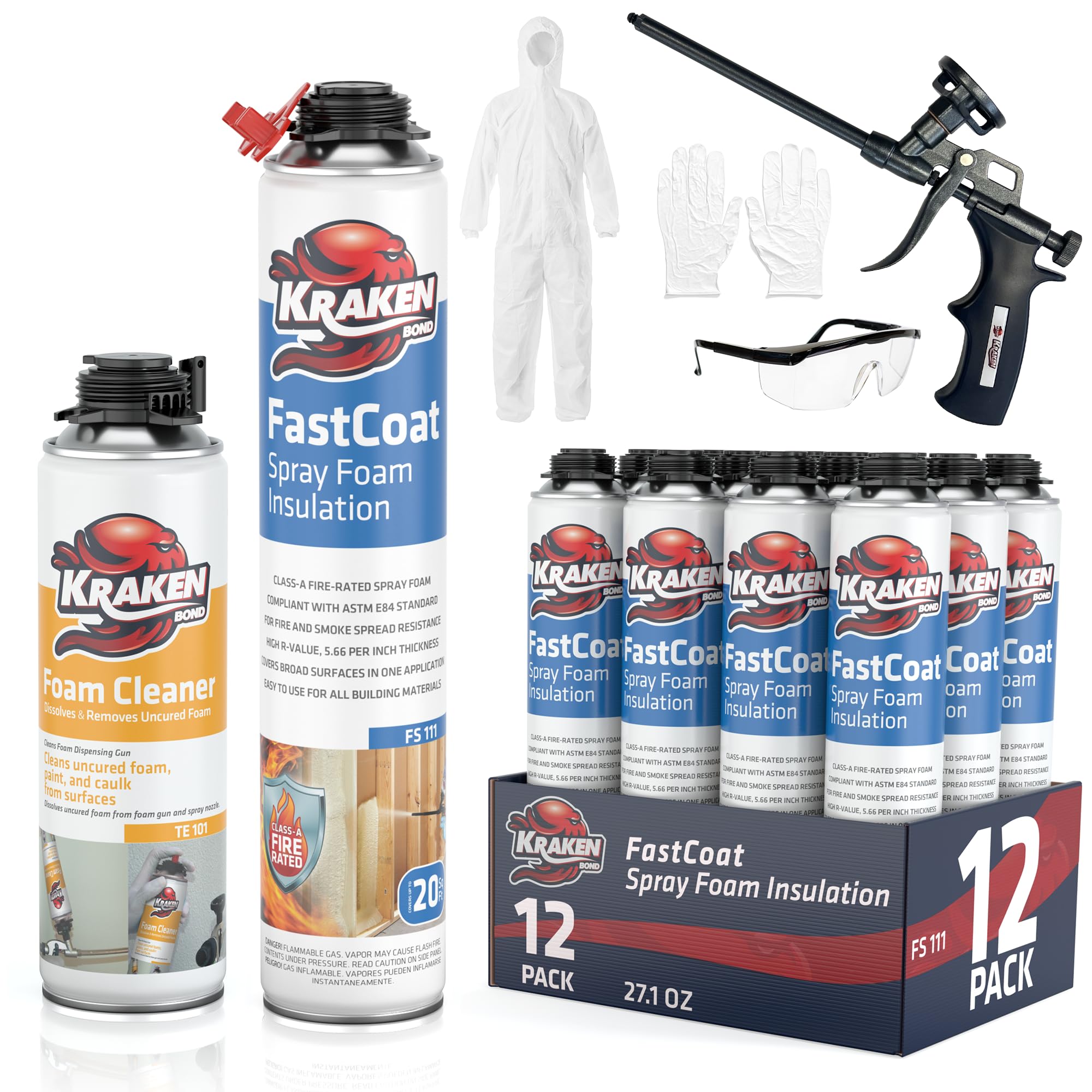

5. Kraken Bond Fastcoat Fire Rated Spray Foam (12-Pack)
With the Kraken Bond Fastcoat 12-pack, you get 288 board feet of coverage (17% more than standard 240-board-foot kits) plus a full turnkey package: 12 cans, gun, cleaner, goggles, suit, and gloves.
At 29 pounds for the complete kit, reviewers point out covering a 14’x13’x5′ room at 1.5-2 inches thick for skim coating concrete walls, and another used 48 cans on a 10’x20’x10′ carport in just 3 hours. The dual-nozzle system and ergonomic gun design make overhead work manageable. One honest caveat: some reviews claim the foam behaves more like open cell than closed cell, so if you absolutely need the high density and vapor barrier properties of true closed cell, you may want the Vega Bond V200 or Froth-Pak instead.
Choose the Kraken Bond Fastcoat if the included PPE and 288 board foot coverage are more important to you than the absolute guarantee of closed cell density — it is perfect for the budget buyer who prioritizes a complete, ready-to-use kit over strict closed-cell specifications.
Why we’d pick it
- 288 board ft coverage — 17% more than standard kits
- Class-A fire rated for safer installation
- Full kit includes suit, goggles, gloves, and cleaner
- Dual-nozzle for vertical and ceiling work
A few caveats
- Some reviews claim it behaves like open cell foam
- Expansion thickness may be inconsistent on second coat
- Gun cleaner may lose pressure before the can is empty

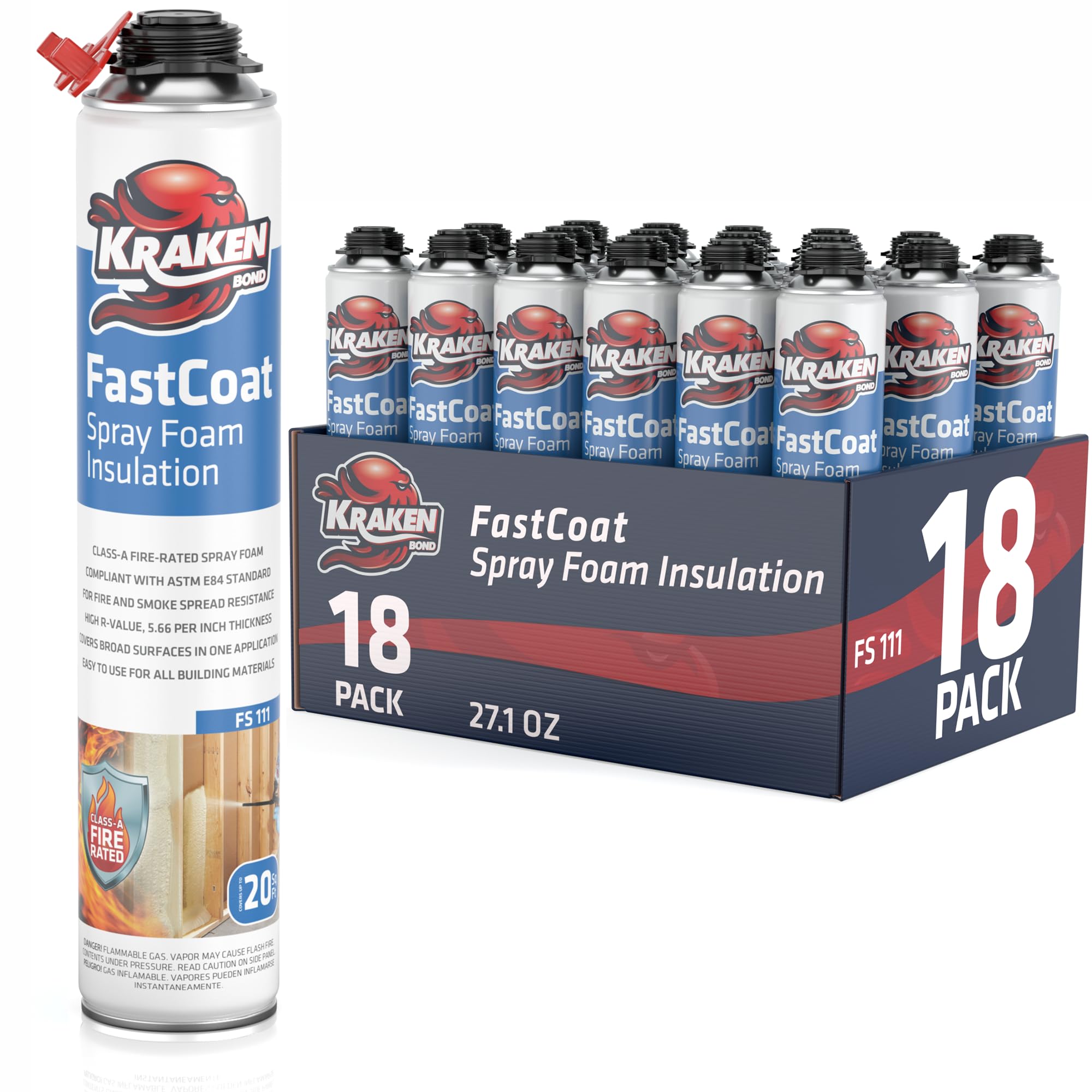

6. Kraken Bond Fastcoat Fire Rated Spray Foam (18-Pack)
This 18-pack Kraken Bond Fastcoat is perfect for the buyer tackling a large single room or workshop who wants one uniform layer from a single kit, offering 360 board feet—the largest one-component kit in this guide—to approach tank-level coverage without industrial gear. The 18 cans at 27.1 oz each deliver 48 more board feet than buying the 12-pack twice, making it the per-can value leader among one-component kits.
Shoppers say using 12 cans to achieve 1.5-2 inches on a 14’x13’x5′ room, and the foam works on damp surfaces if you pre-mist the area for better adhesion. Like the 12-pack, it includes the gun and cleaner, though you may want an extra cleaner bottle if you plan to use all 18 cans in one session.
The same caveat applies: some users report the foam expands at a lower rate than expected, calling it open cell in behavior, so if you are set on true closed cell density with guaranteed expansion, consider the Vega Bond V200 or Froth-Pak—this 18-pack Kraken Bond is for the buyer who values volume and convenience over the absolute known density of the foam.
Strong points
- 360 board ft — the largest one-component kit in this guide
- Better per-can value than buying two 12-packs
- Class-A fire rated for safety
- Adheres to most building materials for a tight seal
Before you buy
- Same closed cell vs open cell debate as the 12-pack
- Gun and cleaner not included with this specific pack
- Bulky box at 29 pounds with 18 cans
7. Vega Bond V200 Closed Cell Spray Foam Insulation Kit
The Vega Bond V200 sits at a higher price point than most one-component kits in this guide, but it delivers the best thermal performance per inch: R-7 per inch versus R-5.66 per inch from standard one-component foams. For a wall needing R-21, you need only 3 inches of the V200 compared to 3.7 inches of a standard foam, saving material and labor. It is a professional-grade two-component system with a 9.5-foot hose assembly, four fan tips, and four cone tips.
Buyers report the foam cures in 20-30 minutes, bonds strongly to metal and wood, and adds structural rigidity to panels. One reviewer used it in an animal shed and noted that even at just over 1 inch thick, it made a huge difference in temperature extremes, holding up for 9 months. The low GWP (Global Warming Potential) formula means it ships to all U.S. states without restrictions. The downside is a higher initial cost for the 200 board foot coverage. You pay more for the R-7 density and faster cure time.
If your project demands the thinnest possible profile for maximum R-value — like a roof deck where every inch of headroom matters — the Vega Bond V200 earns its premium over the one-component kits.
What we like
- R-7 per inch — highest thermal resistance in this guide
- Low GWP formula ships to all U.S. states
- Cures in 20-30 minutes for fast work
- 9.5-ft hose and multiple tips for professional application
The downsides
- Two-component system requires more setup than cans
- Some users report initial spray gun leaks
- Higher upfront cost for 200 board ft coverage
8. FROTH-PAK 620 Sealant – Two Component Foam Insulation Kit
620 board feet at 1 inch — more than double the coverage of the Vega Bond V200 and triple any one-component kit — makes the FROTH-PAK 620 the heavy artillery for insulating a full basement, large garage, or entire crawl space in one shot. It is a true two-component system with A and B tanks and a 15-foot hose.
At 117 pounds, you position the tanks and move the hose; owners mention spraying a 10×16 shed (roof included) in just 45 minutes. The foam creates a rigid water, air, and bug barrier that outperforms fiberglass, and one buyer mentioned a single application in their crawlspace drastically improved heating efficiency. This quick-cure polyurethane lets you layer fast, and the main reason to choose it over multiple one-component kits is speed and consistency — you spray a continuous monolithic layer without stopping to swap cans. The trade-off is the massive size and cost (prohibitive for small areas), and the sparse instructions mean you will need YouTube tutorials.
For the biggest jobs, no other kit here matches its per-pass value and airtight results.
Why it’s great
- 620 board ft — highest coverage in this guide
- Quick-cure polyurethane for fast layering
- Continuous spray without swapping cans
- Creates an effective water, air, and pest barrier
Good to know
- 117 pounds — requires cart or dolly to move
- Very messy; full PPE and drop cloths essential
- Sparse instructions — rely on YouTube for guidance
Understanding the Specs
Board Feet (Coverage)
Board feet is the standard measure for spray foam kits. It tells you how many square feet the kit can cover at a 1-inch thickness. A 240 board foot kit will cover 240 square feet at 1 inch deep, or 120 square feet at 2 inches deep. Always measure your total square footage and multiply by the desired depth in inches to figure out how many board feet you need. Most one-component kits range from 168 to 360 board feet, while two-component kits like the Froth-Pak hit 620. It is a simple number, but getting it wrong means running short mid-project, so measure carefully and order 10-15% extra for waste.
R-Value (Thermal Resistance)
R-value is the measure of how well the foam resists heat flow — higher numbers mean better insulation. Closed cell foam typically delivers an R-value between 5.66 and 7 per inch. One-component kits (Akfix, STANLEY, Sprayman) usually hit R-5.66 per inch, which means R-11.32 at 2 inches. The Vega Bond V200 reaches R-7 per inch, so you get more insulation from a thinner application. Building codes vary by region, but most walls require between R-13 and R-21, which translates to roughly 2.5 to 3.5 inches of closed cell foam. Check your local code before starting.
FAQ
Why do some kits say 240 board feet but also say 168 square feet?
Can I use a closed cell spray foam kit outdoors or in direct sunlight?
Is one-component spray foam the same as two-component for a DIY project?
How long do spray foam cans last in storage?
Do I need a separate vapor barrier if I use closed cell spray foam?
Final Thoughts: The Verdict
For most buyers, the best closed cell spray foam kit winner is the Akfix Thermcoat because it balances the highest coverage (240 board feet) with a Class-A fire rating and an included dual-nozzle system at a price that makes sense for most single-room or workshop projects. If you want the highest R-value per inch for a thin professional application, grab the Vega Bond V200 with its R-7 per inch and fast cure time. And for the biggest projects like a full basement or large garage, the FROTH-PAK 620 stands alone with 620 board feet of coverage and continuous spray capability — the only real choice when square footage demands it.
