6 Best Cheap Welding Helmet | Clarity Without the Cost

Check Price on Amazon

Four sensors and a big window that lets you see the whole weld puddle without moving your head.

The single biggest upgrade you can make from a basic two-sensor hood is the jump to four arc sensors (the light detectors that trigger the lens to darken), and this Sunstac delivers exactly that. You see the flash from every angle even when your head is cocked to the side, because the four sensors darken the lens in 1/30000 second. The viewing screen is a roomy 3.94″ x 3.27″ — a noticeable improvement over the smaller 3.78″ x 1.58″ window on the VILSIN, so you see your work piece without craning your neck.

The 1/1/1/1 true color lens kills the green tint you get on older budget hoods. That rating means the lens is as clear as possible, so you see the weld puddle in natural colors and can read the heat bloom. Buyers report that this durable welding helmet survived being left in snow for 2 days and worked fine after drying, which speaks to how tough the build is. It uses dual power — a lithium battery and solar — so the battery lasts a long time, and it covers Stick, TIG, MIG, CUT, and plasma with a grinding mode.

The catch is the weight. At 2.09 pounds, it is noticeably heavier than the VILSIN which weighs only 1.52 pounds (a difference of about 37% more), so if you are doing overhead welding all day, your neck will feel the difference.

Check Price on Amazon

A massive screen that replaces a 14-year-old pro hood and impresses the skeptics.

At 3.94″ x 3.66″, this ARCCAPTAIN has the largest viewing window in this lineup — it beats even the Sunstac 3.94″ x 3.27″ by offering a taller screen. That extra height is a real advantage when you are trying to track a TIG weld in tight corners. One reviewer who replaced their Miller Digital Elite after 14 years was skeptical of a cheap brand but reported being impressed after 2 months of non-stop use, calling the view “very clear” and the headgear more comfortable than the Miller.

The 1/1/1/1 top optical clarity lenses and true color technology give you that lifelike view of the weld puddle, and the four premium arc sensors trigger the darkening in 1/25000 seconds — fast enough for any process from TIG to stick. It runs on two CR2450 lithium batteries plus dual solar panels on the front, which the manufacturer claims can power the mask for several years.

On the downside, this is the heaviest helmet here at 2.51 pounds, and some users mentioned it is not quite as comfortable for extended wear as lighter options. It also lacks a dedicated grinding mode toggle, though the variable sensitivity and delay controls let you work around that.

Check Price on Amazon

The featherweight champ that one 40-year veteran called the best-performing hood he has ever owned.

At just 1.52 pounds, the VILSIN is the lightest helmet in this comparison — a full 37% lighter than the Sunstac large-view model — so your neck stays fresh even during a long day of overhead or pipe welding. One buyer, a welder of over 40 years, said this is the lightest and best performing helmet he has ever owned, which is high praise from someone who has seen the industry change over decades.

The viewing area measures 3.78″ x 1.58″, which is a standard size for a budget hood, and the two arc sensors switch from light to dark in 0.06ms. It uses a replaceable CR2032 lithium battery plus solar cells to extend battery life. The shade range goes from DIN 3/4-8/9-13, giving you a very wide light state of DIN3 for plasma cutting and grinding work that other budget hoods in this lineup cannot match (the Sunstac SS-A500A, for instance, only goes to DIN4 in light state).

With a 1/1/1/2 optical class rating, the color clarity is decent but not as crisp as the 1/1/1/1 lenses on the Sunstac or YESWELDER. The headgear is adjustable with padded front bands and knobs on both sides and the back, but the PP material feels a bit less premium than the plastic shells on pricier models.

Check Price on Amazon

A true-color 1/1/1/1 lens that also filters out harmful blue light for long session comfort.

The standout feature here is the Blue Light Blocking Technology outer lens, which filters out most of the harmful high-energy blue light rays while letting through the less harmful part of the spectrum. For anyone who welds for hours at a stretch, that means less eye fatigue and a more comfortable experience overall. The 1/1/1/1 true color view with a standard 3.64″ x 1.67″ viewing area gives you a clean, natural look at the puddle without the green haze older helmets produce.

One buyer mentioned the view port is 1-3/4″, calling it smaller than the 2.5″ they preferred, and mentioned the headband adjuster was complicated with instructions too small to read. The shade range goes from 3.5/9-13, which covers TIG, MIG, stick, and grind, and the two arc sensors trigger darkening in 1/30000 sec — very fast. It runs on solar and a replaceable CR2450 lithium battery.

The headgear uses a pivot-style design for comfort, and the helmet meets ANSI Z87.1 and CSA Z94.3 safety standards. One reviewer who had also tried the Harbor Freight equivalent said this helmet was “10x better” than that model, which they found cloudy and less clear.

Check Price on Amazon

The lowest-priced 1/1/1/1 true color helmet that survived a drop from a building and kept working.

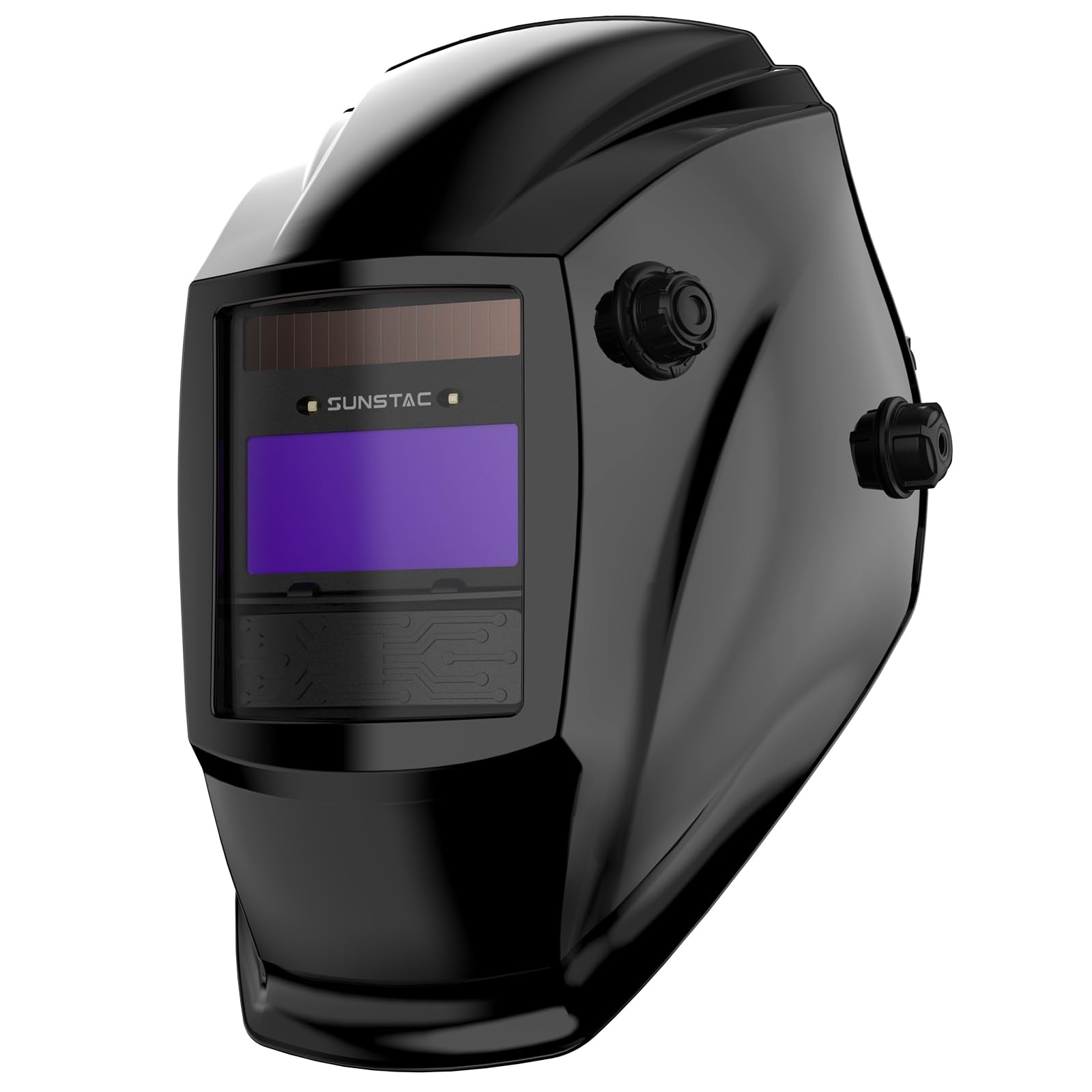

This Sunstac SS-A500A is the only helmet in the absolute cheapest tier that gives you a 1/1/1/1 true color view, which means you get the same optical clarity that the more expensive YESWELDER and ARCCAPTAIN offer, but at a lower price point. The viewing screen is 3.94″ x 1.67″, which is wider than the VILSIN (3.78″ x 1.58″) — a small but noticeable difference when you are trying to track a bead. The shade range is 4/9-13, and the two arc sensors darken in 1/25000 sec.

The durability is a real selling point. One buyer bought this as a second helmet because their husband dropped the first one off the top of a building and it survived. Another reviewer said the durable welding helmet survived being left in snow for 2 days and worked fine after drying — that is the same kind of hard-wearing build you get from the larger Sunstac model. The headgear is comfortable with multiple adjustments and padding inside.

The trade-off is the same as with most two-sensor helmets: you have fewer arc eyes than the 4-sensor models, so in extreme angles you might get a slower reaction. One reviewer felt the brightest setting was still a bit too dark for their personal taste, and of course the smaller 1.67″ tall window does not give you the same vertical coverage as the 3.27″ or 3.66″ screens on the larger Sunstac or ARCCAPTAIN.

Check Price on Amazon

The fastest reacting helmet in the group, with a rechargeable battery that matches its pro ambitions.

While most budget helmets darken in 1/25000 or 1/30000 of a second, the MIGVAN H-21 triggers its four arc sensors in 1/10000 of a second — that is noticeably faster, giving you an extra margin of protection when you are working with high-frequency TIG starts that can catch slower lenses off guard. The true color golden lens eliminates distortion and color saturation, delivering a lifelike view of the weld pool that one buyer described as “very clear.”

The big upgrade here is a rechargeable lithium battery in addition to the solar panel, so you are not hunting for CR2032 or CR2450 button cells when the battery runs low. The shade range goes from DIN4 (light) to DIN5-9/9-13 (dark), covering TIG, MIG, stick, cut, and grind. It meets ANSI and CE safety standards and comes with a heavy-duty storage bag and extra lenses.

Reach for this if you want the fastest reaction time in this budget class and the convenience of a rechargeable battery. A reviewer mentioned the helmet felt too small and let light leak in from the sides and bottom, so it may not fit welders with larger head sizes perfectly. The headgear was described as uncomfortable by one Tig welder trainee, who recommended using a bib for extra coverage.
