Snapping a chain pin on the first use is the quickest way to turn a fifteen-minute job into a trip back to the parts store. Whether you are replacing a worn motorcycle drive chain, shortening a go-kart chain, or servicing an ATV, the core demand is simple: the tool must push a rivet out cleanly without bending its own punch pin. That single failure point defines the entire category. Cheap alloy punches deform under load, while properly heat-treated steel pins handle 520 and 530 chains without sacrificing alignment. The best chain breaker tool balances punch hardness, pin diameter options, and a rigid frame that keeps the chain stable under pressure.
I’m Mohammad Maruf — the founder and writer behind WellFizz. I have spent hundreds of hours reviewing consumer tool specifications and analyzing user feedback across dozens of chain breaker kits to isolate the designs that actually hold up to real shop use.
This guide breaks down five kits by their punch steel quality, included pin sizes, and overall build rigidity so you can choose a chain breaker tool that finishes the job without leaving broken parts in the tray.
How To Choose The Best Chain Breaker Tool
Seven dollars often separates a kit that lasts one season from a kit that lasts a decade. The difference lives in three specific areas: the steel grade of the punch pins, the range of included pin diameters, and the rigidity of the frame that holds everything together.
Punch Pin Material and Hardness
Standard carbon steel punch pins bend when they meet a tight factory rivet. Chromium-alloy steel (often labeled chromium-vanadium or chrome steel) resists deformation much better because the alloy adds compressive yield strength. A bent pin is a dead pin; if the manufacturer does not specify the steel type, assume it is low-grade and plan for a short service life.
Pin Diameter Selection
Chain pitches vary from small cam chains (#25) to heavy-duty drive chains (#630 and above). A 2.2 mm pin handles cam chains. A 2.9 mm or 3.0 mm pin suits #25 to #35 chain. A 3.8 mm or 4.0 mm pin covers the common motorcycle range of 428 to 630. A 5.0 mm pin is required for chains larger than #630. Kits that stop at 3.8 mm cannot safely work a #80 or #930 roller chain without risk of pin rupture.
Frame Construction and Thread Precision
The main body must hold the chain securely while the drive screw advances. Loose thread clearance allows the punch pin to wander off-center, which damages side plates and bends the pin. Look for kits that mention “precision thread” or “minimized thread clearance” in the product description — this is not marketing fluff; it is the difference between a straight push and a mangled link.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| PGN RC-KIT-25-60 | Premium | Industrial maintenance & go-karts | Carbon steel frame, #25-#60 | Amazon |
| GVCVHVCV 18-Piece Kit | Premium | Large chains (#630-#930) & wide compatibility | 5.0 mm pin for #630-#930 | Amazon |
| HILAKE Chain Breaker | Mid-Range | 428-530 motorcycle chain jobs | Chromium steel pin, 3.8 mm | Amazon |
| Thsakzo 15-Piece Kit | Mid-Range | Budget-friendly home mechanic use | 3 pin sizes (2.2, 2.9, 3.8 mm) | Amazon |
| Prokomon 13-Piece Kit | Budget | Light occasional use, cam chains | 2.2 mm pin for cam chains | Amazon |
In‑Depth Reviews

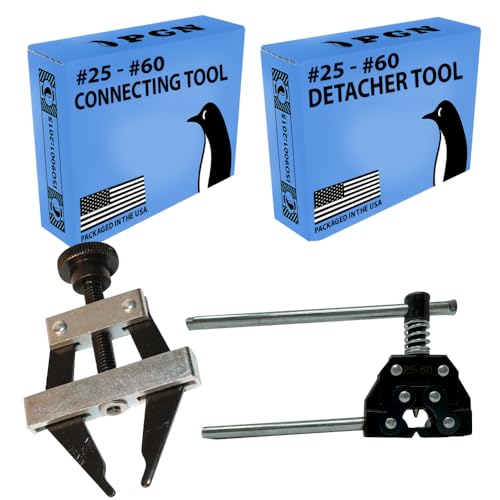

1. PGN RC-KIT-25-60 Roller Chain Tool Kit
PGN Bearings built this kit around a corrosion-resistant carbon steel body that provides a stable platform for cutting and removing links. The top push pin is adjustable, letting you dial in the exact depth so you do not over-drive the punch into the chain.
The kit includes a puller-holder alongside the breaker function, making it easier to separate stubborn links without the chain twisting. Reviewers mention it works well on skidsteer drive chains and go-kart #41 chains. The max size is #60, so if you work primarily with #520 motorcycle chains you are at the upper limit of the range, but the steel quality compensates with consistent alignment.
One buyer ordered a second set as backup — a strong indicator that the punch holds up under repeated use. For home mechanics and small-shop maintenance, this kit delivers the best balance of frame rigidity and long-term durability in the list.
Why it’s great
- Corrosion-resistant carbon steel body resists rust and wear
- Adjustable top push pin prevents over-driving into the chain
- Proven track record in industrial CNC maintenance
Good to know
- Best for chains up to #60; not ideal for large 630-series motorcycle chain
- Pull function is functional but not as heavy-duty as dedicated chain pullers
2. GVCVHVCV 18-Piece Chain Breaker Tool Kit
This 18-piece kit is the only one in the lineup that includes a 5.0 mm punch pin, making it suitable for chains from #630 up to #930. The drive screw thread is machined with minimal clearance, which keeps the top pin aligned with the chain axis during the push. The surface treatment adds anti-rust and anti-corrosion protection, a worthwhile addition for anyone working in humid garage conditions.
Users report that the tool works smoothly on DID VX3 chains after grinding the factory rivet flare — that prep step is critical regardless of the tool you pick. The kit includes three anvils, three press plates, and a riveter for forming new master links. The handle provides good mechanical advantage, though some owners add a short length of tubing for extra torque on stubborn 530 chains.
A few buyers noted that the back plate does not always stay seated in the bottom hole, requiring manual alignment during assembly. If you work with oversized chains regularly, the extra 5.0 mm pin makes this kit a practical choice that no other budget-oriented kit in this range offers.
Why it’s great
- Includes a 5.0 mm pin for #630 to #930 chains
- Precision thread minimizes pin wander during pushing
- Anti-rust surface treatment protects against corrosion
Good to know
- Back plate alignment can be finicky during reassembly
- Factory rivets must be ground down before pressing pins
3. HILAKE Chain Breaker Splitter Tool
HILAKE uses chromium steel for the breaker pin — a material upgrade over standard carbon steel that directly reduces the chance of bending under load. The 3.8 mm pin handles 428 to 530 chains, which covers the vast majority of dirt bike and street motorcycle chain sizes. The main body is constructed from structural-grade carbon steel, giving the tool enough heft to stay planted while you apply force.
Users have successfully broken D.I.D 520 ERT3 chains on Yamaha YZ models without damaging the punch. The compact package dimensions (7.17 x 4.37 x 1.5 inches) make it easy to store in a tool bag for trail-side repairs. The kit includes two pins, and reports show minimal wear after multiple uses.
The twist handle requires some torque — levering with a 14 mm ratchet helps. One buyer noted that the handle takes “correct leverage” rather than brute force. For the money, the chromium steel punch gives this tool a meaningful durability edge over kits that rely on untreated alloy pins.
Why it’s great
- Chromium steel punch pin resists bending on 520 and 530 chains
- Compact size fits in trail tool bag
- Structural-grade carbon steel body provides stable platform
Good to know
- Handle requires a 14 mm ratchet for maximum leverage
- Limited to chain sizes up to 530; no large chain support
4. Thsakzo 15-Piece Motorcycle Chain Breaker Kit
Thsakzo offers a 15-piece kit that spans #25 to #630 chains with three pin diameters (2.2 mm, 2.9 mm, 3.8 mm). The product description highlights precision thread design that reduces clearance and keeps the pin concentric during operation — a spec that directly addresses the bent-pin problem that plagues cheaper kits. The included blow-molded case keeps everything organized, which is helpful for home mechanics who store the tool between uses.
Several buyers successfully installed 530 chains with this kit, though one report noted that the spring shattered during use. The spring is a consumable part in most chain breaker designs, so replacement is expected, but it indicates that the included spring steel is not high-end. The kit performed the core job — pushing pins out and riveting — for most users.
Multiple negative reviews mention bent pins on the first use, which suggests quality control inconsistency. The design intent is sound (precision thread, multiple pin sizes), but the execution varies between units. If you get a properly heat-treated example, it represents good value for the price; if not, expect pin failure early.
Why it’s great
- Precision thread design improves pin concentricity
- Three pin sizes cover #25 through #630 chains
- Compact blow-molded case for organized storage
Good to know
- Spring durability is inconsistent across units
- Some units arrive with soft pins that bend on first use

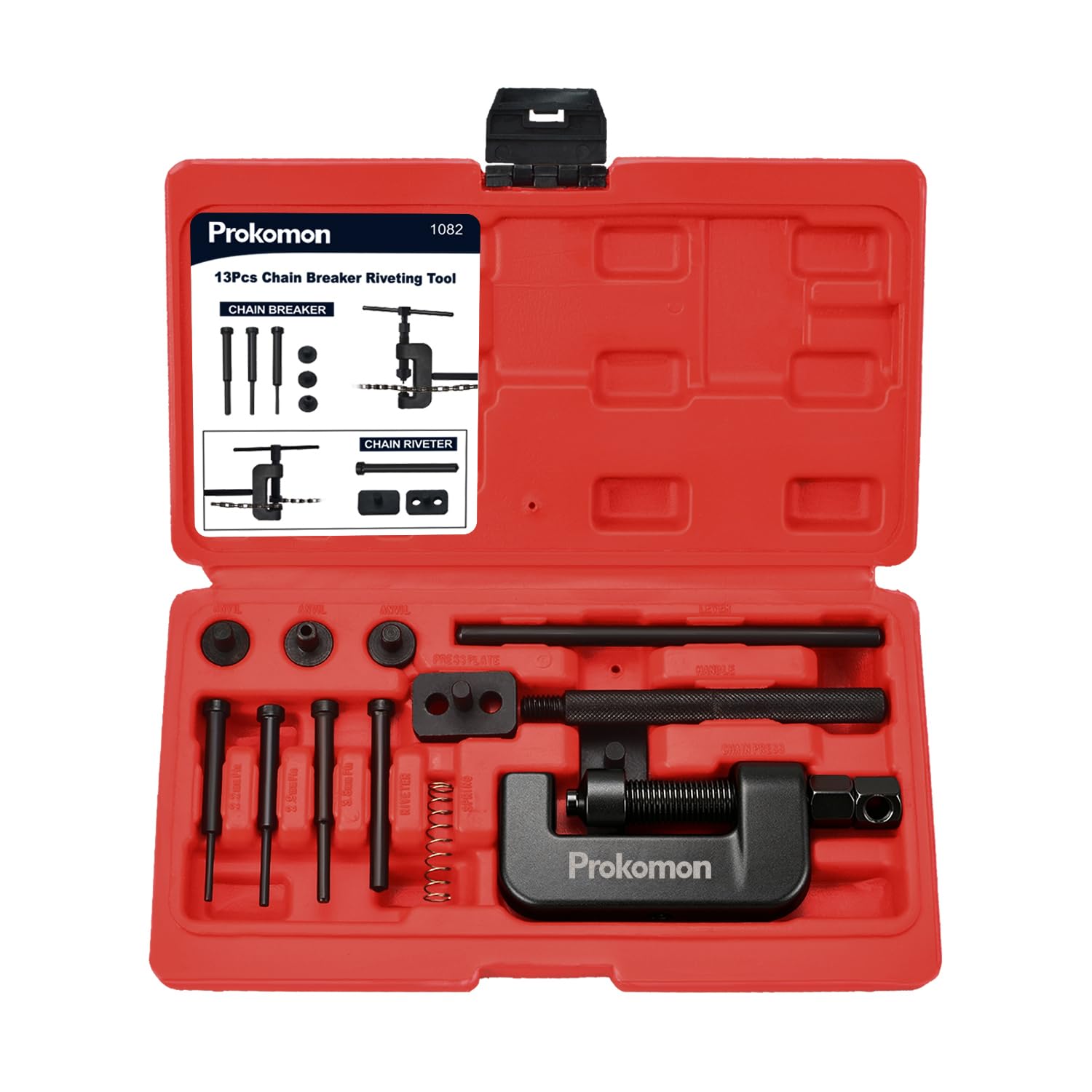

5. Prokomon 13-Piece Chain Breaker Tool Kit
Prokomon’s 13-piece kit hits the entry-level price point with pin options of 2.2 mm, 2.9 mm, and 3.8 mm, covering the same range as more expensive kits. The hardened steel construction works acceptably for light-duty use like cam chain removal or #35 chain repairs. Experienced users have successfully broken #520 chains by grinding the rivet head first and moving slowly.
The main issue is that the pins lack the alloy hardness found in the HILAKE or PGN kits. Multiple negative reviews report that the 2.9 mm and 3.8 mm pins snapped “like balsa wood” on the first attempt with a tight chain. The tool works well when the chain rivet is already loosened or when you use gentle pressure, but it does not tolerate force well.
No instructions are included — you need to watch a video beforehand to avoid bending the punch. For one-off jobs where you will use the tool once and store it, this kit can get the job done. For frequent or heavy-duty use, the material weakness makes it a poor long-term investment.
Why it’s great
- Very low cost point for entry-level use
- Three pin sizes cover #25 to #630 chain range
- Works well on cam chains and light-duty applications
Good to know
- Pins can snap under moderate pressure on tight chains
- No printed instructions included in the package
FAQ
Do I need to grind the rivet before using a chain breaker?
What size punch pin do I need for a 520 motorcycle chain?
Can a chain breaker tool rivet a new master link?
Final Thoughts: The Verdict
For most users, the chain breaker tool winner is the PGN RC-KIT-25-60 because it offers the best frame rigidity and corrosion resistance for chains up to #60, making it ideal for regular maintenance. If you need support for larger chains up to #930, grab the GVCVHVCV 18-Piece Kit with its exclusive 5.0 mm pin. And for a value-driven option that punches above its price, the HILAKE Chain Breaker delivers a chromium steel pin that outperforms the rest of the budget tier on 520 and 530 chains.
