The single biggest regret in a deck or stair railing job isn’t the color or the view—it’s waking up two years later to rusted, sagging cables that turn a clean modern line into a corroded eyesore. A true cable railing system lives or dies on three things: the marine-grade alloy in the wire, the strand construction that resists stretching, and the hardware design that holds tension without constant re-tightening. Get those right, and you install it once.
I’m Mohammad Maruf — the founder and writer behind WellFizz. My analysis focuses on material certifications, strand-layer configurations, breaking-strength data, and the mechanical reliability of swageless versus crimp-based tensioning systems across the sub- residential market.
This guide compares nine distinct approaches to building a best cable railing system, from bulk T316 wire spools to complete modular post-and-hardware kits that eliminate the crimping step entirely.
How To Choose The Best Cable Railing System
Selecting a cable railing system means matching the alloy grade to your climate, the strand configuration to your layout, and the hardware style to your skill level. Here are the three decisions that matter most.
Marine-Grade T316 vs. T304 Stainless Steel
T316 contains molybdenum, which provides far superior resistance to chloride corrosion from salt air, pool chemicals, and rain. T304 is cheaper but will develop surface pitting in coastal or high-humidity zones within two years. For any exterior installation, T316 is not a luxury—it’s the minimum viable material.
7×7 Strand vs. 1×19 Strand Construction
7×7 cable (seven groups of seven wires each) is flexible enough to handle stair runs that require bending around corners or angled posts. 1×19 cable is stiffer, resists stretch better over long horizontal spans, and holds tension more reliably, but is harder to cut and route. Your railing’s geometry dictates which one to buy.
Crimped vs. Swageless Tensioning Hardware
Traditional crimped terminals require a hydraulic crimper and precise cutting. Swageless designs use a threaded compression mechanism that tightens with wrenches—no special tool required. Swageless systems cost more upfront but save significant labor and eliminate the risk of a bad crimp that slips under load.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Steel DN Mate Wire Spool | Wire Spool | High-volume DIY cable runs | 650 ft, T316, 7×7, 1,800 lb breaking | Amazon |
| BLIKA Wire Spool | Wire Spool | Large decks needing clean cuts | 1,000 ft, T316, 7×7, 1,850 lb breaking | Amazon |
| VEVOR Wire Spool | Wire Spool | Straight horizontal runs | 1,000 ft, T316, 1×19, 1,760 lb breaking | Amazon |
| CELYND Wire Spool | Wire Spool | Multi-purpose yard and deck use | 1,000 ft, T316, 7×7, 1,800 lb breaking | Amazon |
| Muzata CK07 Hardware Kit | Hardware Kit | Multi-angle stairs and wood posts | 50 pairs, T316, 0-180° turnbuckle | Amazon |
| Muzata CB40 Hardware Kit | Hardware Kit | Metal post invisible tensioning | 40 pack, T316, hidden flat head | Amazon |
| Steel DN Mate Black Wire Spool | Wire Spool | Black cable aesthetic builds | 1,000 ft, T316L, 7×7, 1,800 lb breaking | Amazon |
| CKE LPS02 Complete Post Kit | Post Kit | Complete DIY deck build, no crimper | 4 posts, 250 ft wire, swageless, T316 | Amazon |
| Muzata RW49 Modular Post Kit | Post Kit | Modular adjustable layout | 5 posts, 220 ft wire, swageless, T304 | Amazon |
In‑Depth Reviews
1. Steel DN Mate 650FT 1/8″ Genuine T316 Stainless Steel Cable
The Steel DN Mate 650FT spool hits the sweet spot between volume and value. At 650 feet, it provides enough cable for roughly 16 horizontal runs on a 40-foot deck (at 4-inch spacing), and the T316 alloy with 7×7 strand construction delivers the corrosion resistance and flexibility needed for both straight sections and stair transitions. The included heavy-duty cutter produces clean, burr-free ends that slide effortlessly into ferrule fittings.
Customer reports confirm zero rust after two full years in outdoor conditions, and the 1,800-pound breaking strength exceeds residential code requirements by a wide margin. The 7×7 configuration is noticeably more flexible than 1×19 alternatives, making it easier to thread through post holes and around corners without kinking.
One minor trade-off: the plastic spool can allow the cable to loosen during handling if not secured with rubber bands or zip ties before transport. Additionally, some users reported that the original reel tore during repeated cutting, though the replacement unit resolved the issue entirely. For the price per foot of T316, this spool is difficult to beat.
Why it’s great
- Genuine T316 with ASTM certification resists coastal corrosion.
- 7×7 strand construction offers excellent flexibility for stairs.
- Cutter included cuts cleanly without fraying the cable ends.
Good to know
- Spool needs rubber bands to prevent uncoiling during transport.
- Some early reels had tearing issues that required replacement.
2. BLIKA 1000FT 1/8″ Stainless Steel Cable with Cutter
The BLIKA 1000FT spool delivers the highest breaking strength in this comparison—1,850 pounds—using the same T316 7×7 construction. An independent Instron test confirmed consistent failure at approximately 1,650 pounds for the cable alone, and around 1,350 pounds when using a ferrule as an end stop. That real-world data gives installers confidence when tensioning runs near the maximum safe load.
The included Cr-Mo steel cable cutter is a standout: users report it remains sharp even after 100+ cuts on 1/8-inch stainless, and it produces clean ends without smashing or distorting the wire. The 1,000-foot length covers large projects without needing a second spool, and the polished surface has no burrs that could snag during threading.
One practical note: the cable arrives with a light oil coating that can reduce crimp grip if not wiped clean before installing fittings. A quick alcohol wipe on each cut end resolves this. The spool is also quite heavy at 12.6 kilograms, so a spool dispenser or second person is recommended for unwinding.
Why it’s great
- Highest verified breaking strength in the group (1,850 lbs).
- Cutters made from Cr-Mo steel stay sharp for hundreds of cuts.
- True 1/8-inch diameter (3.18mm) with no undersizing.
Good to know
- Oil coating must be cleaned off before crimping for secure grip.
- Heavy spool requires a dispenser or helper for easy unspooling.
3. VEVOR 1/8″ Stainless Steel Cable 1000FT, T316 1×19
The VEVOR spool stands apart with its 1×19 construction—19 individual strands twisted in a single layer around a single core. This configuration is significantly stiffer than 7×7 cable, which means minimal stretch during installation and less need for over-torquing to achieve consistent tension across long horizontal spans. Experienced carpenters in the reviews specifically cite this as their go-to for straight deck runs.
The T316 alloy holds up well in outdoor conditions, and the polished surface is smooth with no burrs that could cut skin or snag on sleeves. The 1,760-pound breaking strength is slightly lower than the BLIKA spool but still far exceeds residential requirements. The stiffness, however, comes with a trade-off for stair installations—1×19 is much harder to route through angled holes and around corners.
Cutting 1×19 cable requires a quality cutter; standard pliers-style cutters will struggle. Users recommend a dedicated ratcheting cable cutter or hydraulic shears. The spool itself is lightweight at 0.01 ounces listed (likely a listing error—actual weight is around 11 pounds), but the plastic reel is sturdy and resists collapse during unwinding.
Why it’s great
- 1×19 construction minimizes stretch for consistent horizontal tension.
- Preferred by experienced carpenters for straight deck runs.
- Polished, burr-free surface protects hands during installation.
Good to know
- Too stiff for easy routing on multi-angle stair installations.
- Requires a high-quality cutter; cheap cutters will dull quickly.
4. CELYND Stainless Steel Cable for Railing – 1000FT 1/8″ T316
The CELYND 1000FT spool offers a balanced 7×7 T316 construction with a 1,800-pound breaking strength, making it a direct alternative to the Steel DN Mate spool but with 350 extra feet. Users report using it for deck railing, garden trellises, outdoor lighting wire, and even a kids’ playhouse railing—demonstrating genuine versatility beyond dedicated railing systems.
The included cutter performs well for the first several dozen cuts, and the cable itself arrives with a smooth, polished finish that feeds easily through pre-drilled post holes. After two months of outdoor exposure in a humid climate, early adopters report no rust formation. The plastic spool is well-designed with a center hole that accepts a standard dispenser rod for controlled unwinding.
The primary limitation is that the brand is newer to the market compared to Steel DN Mate or Muzata, so long-term reliability data beyond two months is limited. Additionally, the cutter included is functional but not heavy-duty—users planning to cut more than 50 cable ends should invest in a separate hydraulic cutter for cleaner, faster work.
Why it’s great
- 1000-foot length covers large projects without a second spool.
- 7×7 construction provides good flexibility for stairs and corners.
- Versatile enough for non-railing uses like trellises and lighting.
Good to know
- Newer brand with limited long-term corrosion data available.
- Included cutter is entry-level; upgrade for high-volume work.
5. Muzata 50 Pairs 1/8″ Cable Railing Hardware Kit CK07
The Muzata CK07 is not a cable spool—it is a 50-pair hardware kit designed for wood-post installations where the tensioning assembly needs to handle multi-angle stair runs. Each turnbuckle rotates from 0 to 180 degrees, allowing the installer to adjust the cable entry angle without forcing the wire into a mismatched hole. The closed-body design adjusts from 6.8 to 10.1 inches, providing generous tolerance for slightly inaccurate cable cuts.
Users consistently report saving thousands compared to prefab cable panels—one reviewer quoted a estimate versus under using this kit combined with their own cable and posts. The T316 stainless construction resists corrosion, and the screws included are functional, though several users noted they strip easily and recommend purchasing a small pack of higher-quality replacement screws preemptively.
Installation requires a hydraulic crimper (not included) to attach the terminal ends, and a jig for drilling straight holes through posts is strongly recommended. Without a drill guide, even slightly angled holes cause the cable to abrade against the wood edge. The bent wrench included helps with tightening but an Allen key is also needed for the set screws.
Why it’s great
- 0-180° turnbuckle rotation handles stair angles effortlessly.
- Significant cost savings versus prefab cable panel quotes.
- Wide length adjustment range forgives imprecise cable cutting.
Good to know
- Included screws strip easily; upgrade to aftermarket fasteners.
- Requires hydraulic crimper and drill jig for best results.
6. Muzata 40 Pack 1/8″ Black Invisible Cable Railing Kit CB40
The Muzata CB40 is engineered specifically for 2×2 inch metal posts, using a patented flat-head tensioner that sits flush inside the post cavity, leaving the outer surface completely clean—no visible crimp marks or protruding hardware. This is the right system for modern, minimalist railings where the visual goal is to make the cable appear to float through the post.
Each tensioner acts as both terminal and tensioner, eliminating the need to distinguish between fixed ends and adjusters. The T316 stainless construction meets ASTM A240/A240M and A276/A276M specifications, ensuring the hardware matches the corrosion resistance of high-end cable spools. The kit includes adhesive sleeves and adhesives for securing the tensioner in the post cavity during assembly.
The primary limitation is that this kit assumes you already have the structural metal posts and cable—it is a hardware-only solution. One user noted that no spare adhesive sleeves are included, so a single mistake during installation requires ordering a replacement pack. Also, the black finish is durable but can scratch during installation if tools are not carefully handled.
Why it’s great
- Patented flush design hides all hardware within metal posts.
- Tensioner doubles as terminal, simplifying inventory management.
- Meets ASTM A240/A276 standards for marine-grade stainless.
Good to know
- No spare adhesive sleeves included—mistakes mean reordering.
- Black powder coat can scratch if tools contact the surface.

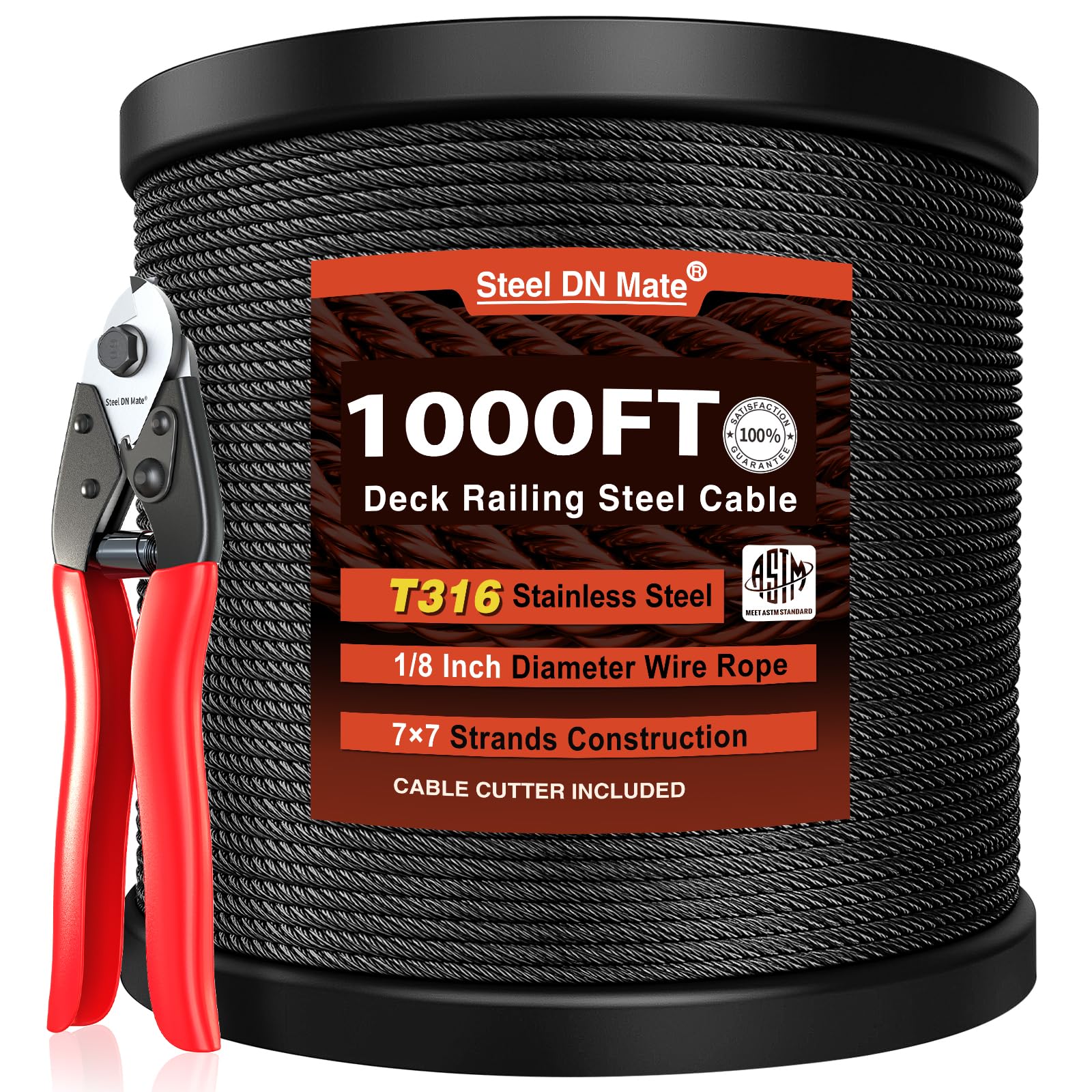

7. Steel DN Mate 1000ft Black Wire Rope 1/8″ T316L
For projects where black hardware is part of the design language, the Steel DN Mate black wire spool offers the same T316L marine-grade alloy as its silver counterpart, but with a polished black coating that integrates visually with dark posts and powder-coated metal frames. The 7×7 strand construction maintains flexibility while the 1,800-pound breaking strength ensures structural safety.
Users consistently praise the burr-free surface, which remains intact after cutting and does not fray or develop sharp edges that could injure hands during tensioning. The included cutter is high-quality. The spool comes with a 10-year warranty and lifetime support, indicating manufacturer confidence in long-term performance. One clever user stabilized the spool with thick rubber bands to prevent uncoiling during use—a trick worth adopting.
The black coating is durable but not indestructible. It can wear off at points where the cable contacts sharp metal edges in post holes, potentially exposing the silver T316 underneath. For a fully uniform black appearance, use protective sleeves or grommets at every post penetration point.
Why it’s great
- Black cable matches dark posts for a cohesive modern look.
- Burr-free finish stays intact after cutting.
- 10-year warranty and lifetime support from manufacturer.
Good to know
- Black coating can wear at metal post edges without protective sleeves.
- Spool requires rubber bands or tape to prevent uncoiling.
8. CKE 15ft-20ft Complete Set 36″ Cable Railing Post Kit LPS02
The CKE LPS02 is a true all-in-one modular kit: four pre-drilled black T304 posts, 20 swageless tensioners, 250 feet of T316 cable, 100 rubber grommets, a cutter, and installation guides. The swageless tensioning mechanism uses a threaded compression system that requires no hydraulic crimper, saving both money and labor time. The posts are pre-drilled with 3-1/8 inch spacing to pass the standard 4-inch sphere building code test.
Users report that the kit installs much faster than traditional crimp-based systems, and the combination of T304 posts (which are structurally adequate for residential loads) with T316 cable (critical for corrosion resistance) provides a smart material optimization—spending alloy budget where it matters most. The matte black powder-coated finish on the posts resists UV fading and surface rust well over a year of outdoor exposure.
The swageless tensioners, while convenient, occasionally slip if the cable is cut slightly too short. One reviewer noted that getting precise wire lengths for the adapters is frustrating. Customer support responsiveness has been a pain point for some buyers, with unanswered contact attempts reported. The kit also does not include a handrail, which must be purchased separately.
Why it’s great
- Complete kit includes posts, cable, and all hardware for 15-20 ft runs.
- Swageless design eliminates need for hydraulic crimper.
- Smart material split: T304 posts + T316 cable for optimal corrosion resistance.
Good to know
- Swageless tensioners can slip if cable is cut too short.
- Customer support has received complaints about slow response.
9. Muzata 16-20FT Modular Black Cable Railing Kit RW49
The Muzata RW49 is the most comprehensive kit in this comparison, containing five T304 stainless steel posts, ten swageless invisible tensioners, ten invisible terminals, 100 adhesive washers, 220 feet of wire rope, and a paper user guide. The patented swageless design means zero crimping tools are required, and the modular nature allows for expansions, corner configurations, and stair transitions by purchasing additional corner posts separately.
The posts are pre-drilled and powder-coated in matte black, creating a cohesive appearance with the black cable. The swageless tensioners use a set-screw compression mechanism that holds the cable firmly once tightened. Users report that the system looks fantastic when properly installed, and the ability to work from the bottom up (as recommended by experienced installers) prevents the loosening cascade that happens when tightening from the top down.
However, the kit has a learning curve. One reviewer found that tightening one cable loosened the adjacent one, requiring iterative re-tensioning. Another described the product as impossible to tighten consistently, though this contradicts the majority of positive reviews and may stem from incorrect installation sequence. The T304 posts are suitable for inland applications but may not hold up as well as T316 in coastal salt spray environments.
Why it’s great
- Complete 5-post kit with swageless tensioners—no crimper needed.
- Modular design allows expansion and corner customization.
- Bottom-up installation method yields consistent tension results.
Good to know
- Learning curve: incorrect tightening order causes cable loosening.
- T304 posts are less corrosion-resistant than T316 in coastal areas.
FAQ
Can I mix T304 posts with T316 cable in a single system?
How much cable do I need for a standard 40-foot deck?
What does the “4-inch sphere” building code test require?
How often do I need to re-tension cable railing after installation?
Final Thoughts: The Verdict
For most users, the best cable railing system winner is the Steel DN Mate 650FT T316 spool because it delivers genuine marine-grade alloy, flexible 7×7 construction, and enough length for standard decks at an accessible price point. If you need maximum corrosion data from a verified breaking strength, grab the BLIKA 1000FT spool. And for a complete tool-free installation that includes posts, cable, and swageless hardware in one box, nothing beats the CKE LPS02 Post Kit.
