Nothing kills a woodworking project faster than a bar clamp that releases pressure mid-glue-up, letting your perfectly squared joint drift out of alignment while the adhesive sets. That subtle slip, often undetectable until the next day, is the difference between a professional result and a frustrating do-over. The best bar clamps lock their position with a mechanical certainty that matches the force they apply, giving you confidence that every panel, frame, and assembly will stay exactly where you put it.
I’m Mohammad Maruf — the founder and writer behind WellFizz. Over years of analyzing workshop gear, I’ve learned that the measurable differences in bar clamps—steel bar thickness, load limit in pounds, throat depth, and jaw pad material—determine whether a clamp is a reliable shop tool or just another frustration waiting to happen.
Whether you’re building cabinets, gluing up cutting boards, or securing workpieces for routing, the best bar clamps deliver repeatable, rock-solid clamping without the guesswork.
How To Choose The Best Bar Clamps
Bar clamps seem simple—two jaws, a bar, and a trigger—but the wrong choice can mean popped joints and wasted glue. Focus on the three specs that actually determine real-world performance: throat depth, load limit, and mechanism quality.
Load Limit and Frame Material
A clamp’s rated load limit, expressed in pounds, tells you the maximum squeezing force it can apply before the bar flexes or the mechanism slips. Light-duty models hover around 150 to 200 pounds, while mid-range and premium options hit 300 to 600 pounds. The steel bar itself matters: thicker bars resist torsion and bending, which is critical when you’re clamping panels that require even pressure across the entire surface. Carbon steel and heat-treated alloy steel bars hold tension better over time without taking a permanent set.
Throat Depth and Jaw Opening
Throat depth—the distance from the bar to the tip of the jaw—determines how far from the edge you can clamp. A 2.3-inch throat is fine for edge-gluing boards, but if you’re clamping cabinet boxes or panels, a 2.5-inch or 3-inch throat gives you more reach. Jaw opening is intuitive: 6-inch clamps handle small joinery and crafts, 12-inch clamps cover most casework and panel glue-ups, and longer clamps are for doors and tabletops. Owning a mix of sizes, such as a 4-piece set with both 6-inch and 12-inch options, is the most practical approach.
Mechanism Type and One-Handed Operation
Trigger-style quick-release clamps allow fast one-handed adjustment—squeeze the trigger to open, push the head to close. Ratcheting bar clamps use a gear-and-pawl system that clicks into position, providing a more positive lock but often requiring two hands. If you’re constantly repositioning clamps during assembly, a smooth trigger action saves time. If maximum holding force matters more, a ratcheting mechanism with a micro-adjustment handle gives finer control over clamping pressure. Removable jaw pads also matter: soft plastic pads protect finished surfaces, while hard pads last longer on rough jobs.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Jorgensen 2-pack Ratchet Bar Clamps | Premium | Woodworking precision | 300 lbs load limit, 3.3″ throat | Amazon |
| WORKPRO 12-Inch Steel Bar Clamps | Mid-Range | Heavy squeezing force | 600 lbs load limit, 2.5″ throat | Amazon |
| VEVOR 4-Piece Bar Clamps | Mid-Range | Mixed-size projects | 600 lbs load per clamp, cast-iron jaws | Amazon |
| DeWalt DWHT83149 Trigger Clamp | Mid-Range | One-handed speed | 200 lbs force, 3″ throat depth | Amazon |
| WEN CLR122 Steel Bar Clamps | Budget | Dual-use clamp and spreader | 150 lbs force, 2.3″ throat | Amazon |
In‑Depth Reviews
1. Jorgensen 2-pack Ratchet Bar Clamps Set, 12-inch
The Jorgensen E-Z Hold series has earned a reputation among woodworkers for a reason: the ratcheting mechanism delivers a confident lock that holds 300 pounds without creep, and the 3.3-inch throat depth reaches deeper into cabinet boxes than most at this size. The one-handed operation is smooth enough for fast repositioning, while the quick-release lever lets you pop the clamp open instantly rather than ratcheting all the way back.
A standout feature is the patented ability to join two clamps together—no tools, no adapters—effectively doubling your reach for wide panels. The contoured comfort grip reduces hand fatigue during long glue-ups, and the soft plastic jaw pads grip without denting softwoods. Converting the clamp into a spreader is just as easy, making this a two-in-one tool for everything from panel glue-ups to frame assembly.
Owners consistently report that these clamps outlast and outperform Irwin Quick-Grips in the same size class. With a 400-pound force rating cited by users and the expandable joining feature, the Jorgensen delivers versatility that justifies its position at the top of the list.
Why it’s great
- Ratchet mechanism locks securely at 300+ pounds of holding force
- Join two clamps together for extended reach without adapters
- Converts easily between clamp and spreader modes
Good to know
- Premium price compared to budget trigger clamps
- Neck is slightly thicker than some competitors, may feel heavier for small hands
2. WORKPRO 12-Inch Steel Bar Clamps Set, 2-pack
If raw clamping force is your priority, the WORKPRO 12-inch set claims a 600-pound load limit—double what many mid-range bar clamps offer. The hardened steel bar is paired with a reinforced nylon body that resists impact, and the dual machined grooves on the back of the bar provide anti-slip grip for the sliding head. These groves prevent the arm from shifting during high-tension clamping, a detail that matters when you’re pressing joints together for assembly.
The quick-release latch on this model requires two hands to operate, which is a trade-off for the added clamping pressure. However, the micro-adjustment handle gives you fine control over the squeeze, allowing you to dial in exactly the right amount of force without over-cranking. The durable plastic jaw pads protect workpiece surfaces from marring, and the ergonomic handle reduces strain during repeated adjustments.
Customer feedback confirms the build quality: users describe these clamps as “sturdy” and “strong,” noting that the rubberized grip feels more secure than bare plastic. For metalworking or heavy joinery where lesser clamps might flex, the WORKPRO set holds the line.
Why it’s great
- 600-pound load limit for demanding assembly work
- Dual anti-slip grooves on the steel bar prevent head slip
- Micro-adjustment handle offers precise pressure control
Good to know
- Two-hand operation may slow down rapid repositioning
- Heavier than one-handed trigger clamps at 3.4 pounds per pair

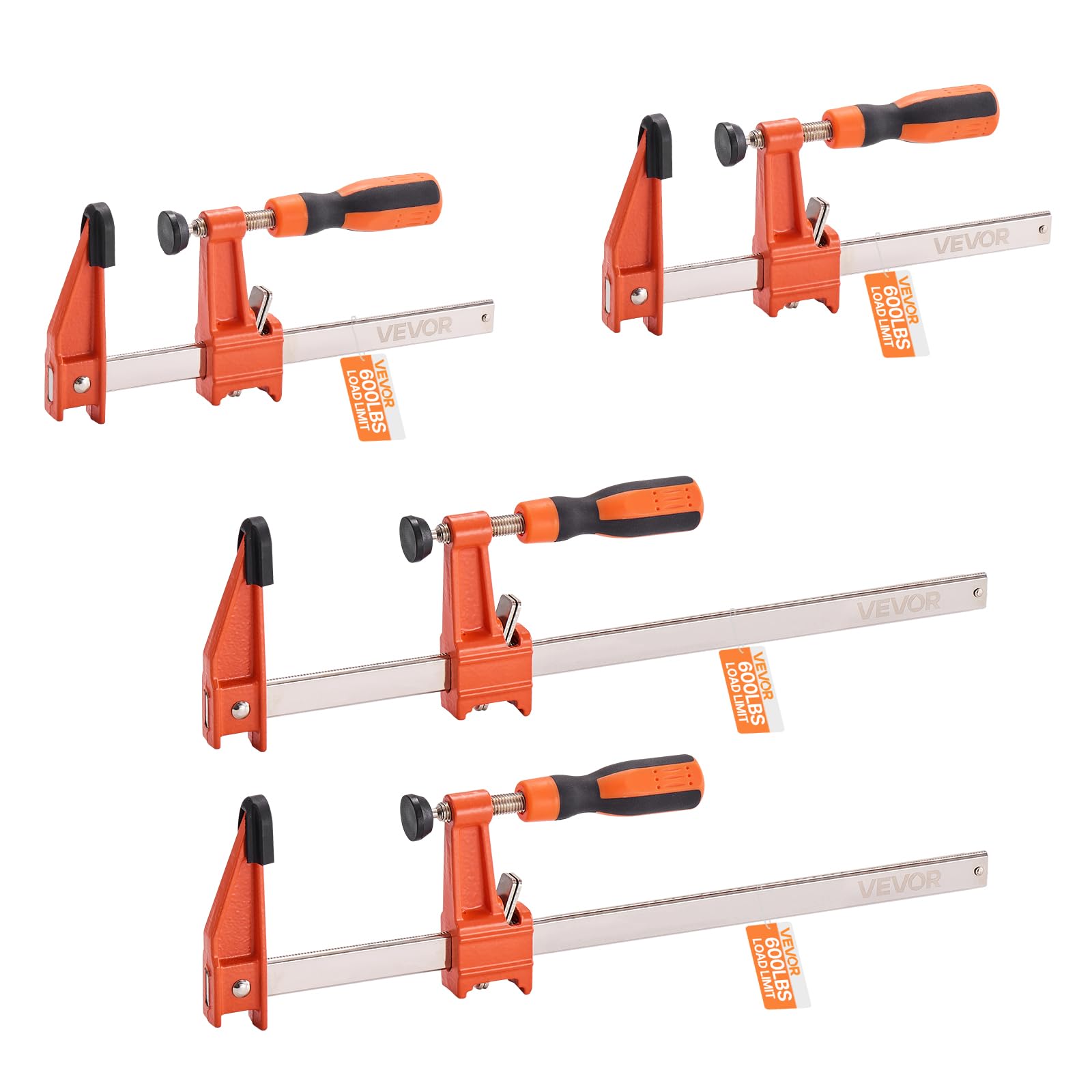

3. VEVOR Bar Clamps for Woodworking, 4-Piece (6-inch & 12-inch)
The VEVOR set addresses one of the most common frustrations for new woodworkers: owning the wrong size clamp for the project. By including two 6-inch and two 12-inch clamps, this four-piece kit covers small joinery and medium panel work in a single purchase. The jaw material sets it apart from the nylon-bodied competition—cast iron provides a rigid, non-deforming clamping surface that won’t flex under pressure, while the 45# carbon steel slide bar resists cracking and maintains straight-line tracking over time.
Each clamp carries a 600-pound load limit, matching the WORKPRO for sheer squeezing capacity. The extended rod design allows for thicker workpiece clearance, and the orange finish makes them easy to spot in a cluttered workshop. Though the clamps themselves are hefty—nearly 6 pounds for the set—that weight translates to a confidence-inspiring solidity that lighter clamps can’t match.
Reviews highlight that these clamps survive rough shipping and heavy use without damage. Users compare them favorably to more expensive brands, noting the cast-iron jaws and smooth quick-release mechanism deliver performance well above the price tier.
Why it’s great
- Four-piece set with two different sizes for project flexibility
- Cast-iron jaws provide rigid, non-flexing clamping surfaces
- 600-pound load limit per clamp for heavy assembly work
Good to know
- Heavier overall weight may be overkill for light-duty tasks
- Plastic components on the handle may not match the bar’s durability
4. DeWalt DWHT83149 6″ Tough Nylon Body Trigger Clamp, 2-Pack
The DeWalt 6-inch trigger clamp is built for speed: one-handed squeeze-to-open and push-to-close action that lets you adjust, reposition, and lock in under a second. The reinforced nylon body keeps weight low—just 1 pound for the pair—while delivering a 200-pound clamping force that handles most small- to medium-duty woodworking tasks. The 3-inch throat depth provides more reach than many clamps at this size, making it useful for edge-gluing and securing workpieces to benchtops.
Removable jaw pads protect finished surfaces from dents and scratches, and the classic yellow body is easy to spot across the shop. While 200 pounds is modest compared to the 600-pound models, this clamp excels in scenarios requiring multiple clamps distributed across a panel—the total clamping pressure adds up quickly when you use several in parallel. The trigger action is noticeably smoother than many budget alternatives.
Customers praise these clamps for their ergonomic feel and solid construction. They’re particularly popular among beginners because the learning curve is zero, yet experienced users keep them in rotation for quick holding tasks where speed matters more than brute force.
Why it’s great
- One-handed operation allows lightning-fast adjustments
- 3-inch throat depth is generous for a 6-inch clamp
- Lightweight reinforced nylon body reduces fatigue over many clamps
Good to know
- 200-pound force limit is not suitable for heavy joinery
- 6-inch length limits use to smaller parts and narrow panels
5. WEN CLR122 12-Inch Heavy Duty Steel Bar Clamps, 2-Pack
The WEN CLR122 is an entry-level option that still offers a valuable dual-function design: the reversible jaws convert the clamp into a 17.25-inch spreader, letting you push panels apart or hold frames open. For the price, getting two tools in one—a 12-inch clamp and a spreader—makes this an excellent starting point for a shop that doesn’t yet own a full set. The reinforced steel bar and nylon body are rated for 150 pounds of force, which is sufficient for light cabinet assembly, model building, and craft work.
The quick-release latch and ergonomic squeeze trigger make operation straightforward, though the 2.3-inch throat depth is noticeably shallower than the competition. This can limit reach for deeper panel clamping. The alloy steel bar provides adequate stiffness for the rated force, but users note that exceeding the 150-pound limit consistently can cause the mechanism to slip.
Reviewers appreciate the versatility of the spreader function, with several mentioning that the clamp works well for cabinet drawer assembly. For hobbyists and DIYers on a tight budget who need basic clamping and spreading capability without investing in multiple tools, the WEN set gets the job done.
Why it’s great
- Reversible jaws double as a 17.25-inch spreader
- Budget-friendly entry point for a growing tool collection
- Lightweight alloy steel bar with quick-release latch
Good to know
- 150-pound limit is the lowest in this lineup, not for heavy work
- Shallow 2.3-inch throat limits reach for deep clamping
FAQ
What load limit do I need for panel glue-ups?
Can I use bar clamps as spreaders?
How do I prevent bar clamps from leaving marks on my workpiece?
Final Thoughts: The Verdict
For most users, the best bar clamps winner is the Jorgensen 2-pack Ratchet Bar Clamps because the 300-pound load limit, 3.3-inch throat depth, and patented joining feature deliver professional-grade versatility and holding power that justifies the investment. If you want the highest squeezing force available, grab the WORKPRO 12-inch Steel Bar Clamps for their 600-pound capacity and anti-slip bar grooves. And for a budget-friendly starter set that doubles as a spreader, nothing beats the WEN CLR122 2-Pack.
