A backflow preventer is the silent guardian of your home’s potable water supply. Without one, a sudden drop in mainline pressure can siphon fertilizers, chemicals, or even sewage from your irrigation system directly into the pipes you drink from. It’s a small device that stands between clean water and a cross-contamination disaster.
I’m Mohammad Maruf — the founder and writer behind WellFizz. I’ve spent countless hours analyzing technical specifications, testing data, and real-user experiences across dozens of backflow prevention models to separate certified performers from risky imitations.
This guide covers the most reliable mechanical options available today, from heavy-duty commercial assemblies to compact residential valves. Whether you need to pass an annual inspection or protect a garden sprinkler line, choosing the right best backflow preventer starts with understanding the key specs and certifications that actually matter.
How To Choose The Best Backflow Preventer
Selecting a backflow preventer isn’t just about matching pipe size. The wrong type for your application can fail an inspection or leave your water supply unprotected during a back-siphonage event. Focus on certification level, material quality, pressure rating, and the specific hazard class of your system.
Certification and Code Compliance
Local plumbing codes typically require specific certifications. The most respected are ASSE (American Society of Sanitary Engineering) listings, IAPMO (International Association of Plumbing and Mechanical Officials) certification, and USC FCCCHR approval. A unit without these marks may not pass an annual test by your water authority, even if it functions mechanically.
Material and Build Quality
Brass and bronze bodies resist corrosion far better than plastic or cheap zinc alloys. Look for thickened castings around threaded ports to prevent cracking during freeze-thaw cycles. Stainless steel internal components, such as springs and check valve seats, extend service life far beyond standard rubber-to-metal seating arrangements.
Pressure and Temperature Range
Every backflow preventer has a maximum working pressure. Residential irrigation systems typically run below 80 PSI, but commercial or industrial applications may require units rated for 150 PSI or higher. Temperature limits also matter; if your system handles hot water, a model rated to 250°F is necessary to avoid premature seal failure.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Zurn Wilkins 34-975XL | Reduced Pressure | High-hazard commercial applications | 11.13 lbs bronze body | Amazon |
| Zurn Wilkins 12-975XL2 | Reduced Pressure | Residential/commercial high-hazard | 175 PSI max pressure | Amazon |
| Watts LF007 Series | Double Check | Continuous-pressure non-hazard lines | Lead-free copper silicon alloy | Amazon |
| Febco 765 Series | Pressure Vacuum | Irrigation systems with freeze risk | Bronze body, plastic bonnet | Amazon |
| ONDAQUA 1″ Brass PVB | Pressure Vacuum | Non-potable irrigation & industrial | 400 PSI pressure rating | Amazon |
| ONDAQUA 3/4″ Brass PVB | Pressure Vacuum | Residential sprinkler protection | UPC certified brass body | Amazon |
| Watts 9D Series | Dual Check Valve | Point-of-use fixtures & lab equipment | 6.4 oz compact brass | Amazon |
In‑Depth Reviews
1. Zurn Wilkins 34-975XL 3/4″ Reduced Pressure Principle Backflow Preventer
This is the heavyweight standard for high-hazard cross-connection control. The 34-975XL features a wye-pattern bronze body that simplifies installation in tight spaces by reducing the overall lay length compared to older straight-through designs. At over 11 pounds, the material density alone signals a unit built for decades of service under continuous pressure.
The assembly arrives pre-configured with full-port quarter-turn ball valves, test cocks, and a strainer. Users consistently report that it passes the most stringent municipal inspections on the first try thanks to ASSE 1013 and IAPMO listings. The wye pattern also provides easy access to the first check valve for debris removal without disassembling the entire unit.
For residential owners facing annual testing requirements, the ability to service the entire unit in-line is a major time saver. The 1-year limited warranty is shorter than some competitors, but the real value lies in the engineering pedigree. This is the unit plumbers reach for when failure is not an option.
Why it’s great
- Wye-pattern design reduces installation space
- Full port QT ball valves included pre-assembled
- Passes strict municipal inspections reliably
Good to know
- Heavy unit at 11+ lbs requires sturdy support
- Premium-level investment compared to PVB options

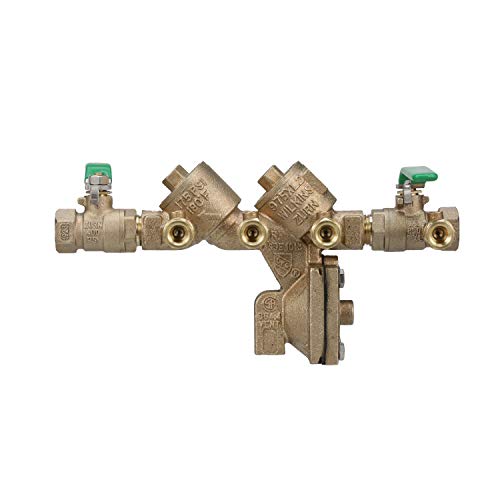

2. Zurn Wilkins 12-975XL2 1/2″ Reduced Pressure Principle Backflow Preventer
This 1/2-inch reduced pressure principle assembly packs the same USC-approved engineering as larger Zurn units into a footprint ideal for smaller service lines. The all-bronze body with stainless steel internal components offers corrosion resistance that standard brass assemblies can’t match, especially in areas with aggressive water chemistry.
The short lay length eases replacement in retrofit situations where the existing rough-in is fixed. Top-access checks mean you can service the unit without pulling it off the pipe, a feature that gets high marks from plumbers who maintain dozens of these on commercial routes. The relief valve and check seats are replaceable independently.
One user noted that the faucet components are steel and may rust over time, though the main valve body remains solid. The 175 PSI maximum pressure covers virtually all municipal and light commercial systems. For a certified reduced-pressure assembly at this weight class, the 12-975XL2 delivers confidence for health-hazard applications like boiler feed and chemical processing lines.
Why it’s great
- Top-access checks allow in-line servicing
- Replaceable seats extend total lifespan
- Short lay length simplifies retrofits
Good to know
- Faucet components are steel, not stainless
- Packaging may allow damage during shipping
3. Watts LF007 Series 3/4″ Lead-Free Double Check Valve Assembly
The Watts LF007 uses a lead-free copper silicon alloy that meets the strictest drinking water standards while offering excellent durability. Designed for non-health hazard continuous-pressure applications, this double check valve assembly prevents backflow from pollutants like irrigation runoff without the higher pressure loss of a reduced-pressure zone device.
The modular design with top-entry access and a single access cover simplifies maintenance significantly. Replacing check discs and seats can be done in-line, which reduces downtime. The integrated freeze sensor compatible with SentryPlus Alert technology provides proactive temperature monitoring, an important feature for systems in colder climates where winterization timing is critical.
Users who replaced older units found the LF007 to be an exact fit in terms of connection dimensions. The pre-installed quarter-turn ball valve shutoffs with NPT connections simplify the swap. For an irrigation system or commercial laundry line where backpressure is unlikely, this assembly offers a reliable mid-tier solution with a strong brand reputation behind it.
Why it’s great
- Lead-free copper silicon alloy body
- Freeze sensor compatible with alert system
- Top-entry access for in-line maintenance
Good to know
- Intended for non-health hazard applications only
- Premium price compared to brass PVBs
4. Febco 765 Series 1″ Bronze Pressure Vacuum Breaker
Febco engineered the 765 Series to solve a specific pain point: freeze damage. The plastic bonnet protects the internal air relief valve from cracking when ice expands, while the bronze body provides the necessary structural integrity. The integrated freeze sensor with SentryPlus Alert gives facility managers temperature warnings before damage occurs.
This pressure vacuum breaker assembly includes resilient seated shutoffs and test cocks, making it ready for inspection right out of the box. The spring-loaded check valve and air relief port with a large opening are designed for minimum head loss, which matters in long irrigation runs where every PSI counts.
Users consistently note the installation speed. One reviewer replaced an old assembly without soldering by using a brass union, completing the job in under an hour. The 150 PSI maximum working pressure is adequate for residential and light commercial irrigation, but not suited for high-pressure industrial lines. For a dedicated sprinkler system PVB, this is the most feature-rich option in its tier.
Why it’s great
- Plastic bonnet resists freeze cracking
- SentryPlus freeze sensor included
- Low head loss for irrigation efficiency
Good to know
- 150 PSI limit for light-duty applications only
- Quarter turn shutoffs may require adapters
5. ONDAQUA 1″ Brass Pressure Vacuum Breaker
The ONDAQUA 1-inch PVB is built for high-flow non-potable systems where pressure surges can exceed typical residential levels. With a 400 PSI rating, this unit handles industrial irrigation lines, fire suppression pre-action systems, and wastewater treatment pipelines without stress on the body or internal seals.
The thickened brass casting includes arrow-marked flow direction indicators that reportedly speed up setup by 30%. The use of plumber-specific PTFE tape from the factory, rather than cheaper alternatives, contributes to a leak-free seal right out of the box. The UPC certification from IAPMO and compliance with ASSE 1020-2020 means this unit passes code inspections in most jurisdictions.
A reviewer comparing it to a Zurn-Wilkins noted the savings of roughly a third of the price for comparable build quality. The 5-year warranty backs the manufacturer’s claim of a 15-year service life. For the price, this is an aggressive value proposition that challenges established brands on material thickness and PSI headroom.
Why it’s great
- UPC certified by IAPMO for code compliance
- 400 PSI rating for high-demand systems
- 5-year warranty with 15-year service design
Good to know
- Repair part compatibility with Zurn unknown
- Intended for non-potable applications only
6. ONDAQUA 3/4″ Brass Pressure Vacuum Breaker
The 3/4-inch version of the ONDAQUA PVB delivers the same UPC-certified brass construction and 400 PSI pressure rating as its larger sibling, but in a format that matches standard residential sprinkler risers. The thickened brass walls resist cracking from freeze-thaw cycles, a common failure point in budget backflow preventers.
Installation is straightforward with threaded NPT connections on both ends. The arrow-marked body direction and factory-applied PTFE tape reduce guesswork during setup. Users replacing failed units after a freeze report zero leaks and a perfect seal on first pressurization, which speaks to consistent manufacturing tolerances.
At roughly half the price of some premium brass PVBs, this unit offers an exceptional cost-to-spec ratio. The 5-year warranty adds peace of mind. If your local code requires a listed pressure vacuum breaker for irrigation, this is the smartest entry-level pick that doesn’t compromise on material quality or pressure capacity.
Why it’s great
- Thickened brass resists freeze damage
- Factory PTFE tape for reliable sealing
- 5-year warranty backs solid construction
Good to know
- IAPMO listing status needs local verification
- Repair parts not widely stocked yet
7. Watts 9D Series 3/4″ Brass Dual Check Valve
The Watts 9D Series is a dual check valve with an intermediate atmospheric vent, designed for point-of-use protection on smaller supply lines. Its compact forged brass body weighs just over 6 ounces, making it ideal for tight spaces behind lab equipment, sterilizers, or dairy processing tanks where a full-sized assembly won’t fit.
The design incorporates two independent check valves: a primary rubber-to-rubber seat for a tight seal and a secondary rubber-to-metal seat for redundancy. The intermediate vent opens to atmosphere if both checks fail, providing a visual indicator of a problem. The 175 PSI and 250°F temperature rating covers both hot and cold water lines.
Long-term users report 7+ years of reliable service on community well systems before needing replacement, with soft seats remaining pliable. The 9D is not a substitute for a pressure vacuum breaker or reduced-pressure assembly in high-hazard situations, but for point-of-use backflow prevention on continuous-pressure lines, it is a compact and trusted choice.
Why it’s great
- Compact size fits tight mechanical spaces
- Intermediate atmospheric vent gives visual failure warning
- Rated for hot water up to 250°F
Good to know
- Not approved for health-hazard cross-connections
- Some users report 5-year lifespan before leaks
FAQ
Do I need a backflow preventer if I have a modern home with PEX pipes?
What does the freeze sensor on the Febco 765 and Watts LF007 actually do?
Can I use a dual check valve in place of a pressure vacuum breaker for my irrigation system?
Final Thoughts: The Verdict
For most users, the best backflow preventer winner is the ONDAQUA 3/4″ Brass PVB because it combines UPC certification, a 400 PSI brass body, and a 5-year warranty at a price that beats legacy brands. If you need a full reduced-pressure assembly for high-hazard applications that must pass strict municipal inspection, grab the Zurn Wilkins 34-975XL. And for point-of-use protection on hot water lines in tight mechanical spaces, nothing beats the compact Watts 9D Series Dual Check Valve.
