How To Choose The Best 1 Hp Submersible Well Pump
Selecting the right pump is more than just matching horsepower. You need to align the pump’s capabilities with the physical reality of your well and the demands of your property. Getting one spec wrong can lead to poor performance or premature failure.
Match the Pump to Your Well Depth (Head)
The most critical spec is “Maximum Head” or “Shut-Off Head.” This is the maximum vertical height the pump can push water. Your well’s depth is only part of the equation—you must also add the vertical distance from the wellhead to your pressure tank and account for pipe friction. Always choose a pump with a maximum head rating at least 20% greater than your total dynamic head to ensure efficient, non-straining operation.
Determine Your Required Flow (GPM)
Flow rate, measured in Gallons Per Minute (GPM), dictates how much water the pump can deliver. A typical household needs 5-12 GPM for normal use. If you run irrigation systems or supply livestock, you’ll need higher flow. A 1 HP pump typically delivers between 22-34 GPM, but note that flow decreases as the operating head (depth) increases. Check the pump’s performance curve to see the realistic GPM at your specific well depth.
115V vs. 230V: Know Your Power Supply
Voltage is a fundamental choice. 115V pumps are common and can often run on a dedicated standard household circuit or a generator, which is great for off-grid or backup setups. 230V pumps are more standard for permanent, deep-well residential installations. They generally draw lower amperage, which can mean less voltage drop over long wire runs from your electrical panel to the well.
Construction and Built-in Features
Look for a stainless steel body for corrosion resistance. A built-in check valve prevents backflow and water hammer, though adding an external valve is often recommended. Some pumps are “2-wire” with a built-in control box, simplifying installation. “3-wire” pumps require a separate, external control box (often included), which can make servicing easier. A robust warranty and clear customer service channels are non-negotiable for a product you install hundreds of feet underground.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Type | Best For | Key Feature | Amazon |
|---|---|---|---|---|
| VEVOR 1.5HP 230V | High-Power | Deep wells & high demand | 276 ft max head, 37 GPM | Amazon |
| Red Lion RL22G10 | Premium | Reliable potable water supply | 3-year warranty, NSF certified | Amazon |
| Hallmark 1HP 230V | Proven Value | Cost-effective deep wells | Built-in start capacitor, no external box | Amazon |
| WASSERMANN 1HP 115V | Residential | Standard depth wells (115V) | Built-in control, 34 GPM flow | Amazon |
| VEVOR 1HP w/ Control Box | Versatile | Homes needing external control | Includes external control box | Amazon |
| PUMPMAN 1HP 110V | High Head | Deep wells needing 115V power | 246 ft head, 7-stage impeller | Amazon |
| Hallmark 1HP 110V | Compact | Smaller casing (3.8″) | 3.8″ diameter, thermal protection | Amazon |
| WASSERMANN 1HP 230V | Irrigation | Farmland & high-volume 230V | 10 ft cable, built-in box | Amazon |
| VEVOR 1HP 115V w/ Box | 115V w/ Control | 115V systems wanting external control | Full kit with control box | Amazon |
| iMeshbean Deep Well | Budget Deep | Entry-level deep well solution | 207 ft head, stainless steel | Amazon |
| WAYNE WaterBUG | Utility Pump | Draining, transfer, shallow water | Multi-Flo tech, top/side discharge | Amazon |
In‑Depth Reviews
1. VEVOR Deep Well Submersible Pump, 1.5HP/1100W 230V
For demanding applications where high lift and substantial flow are non-negotiable, the VEVOR 1.5HP model stands out. Its 276-foot maximum head rating tackles deep wells with authority, while the 37 GPM flow can support large households, serious irrigation, or light commercial use. The 8-stage impeller design is engineered for sustained pressure over great heights.
Constructed with a full stainless steel frame and an IP68 waterproof rating, it’s built for a long submersible life. The motor uses copper windings and includes built-in thermal overload protection, a critical feature that automatically shuts the pump down to prevent burnout if it jams or runs dry. It comes with a 33-foot power cord, simplifying the initial electrical connection.
User experiences highlight its impressive power, with some noting output strong enough to drive sprinkler systems effortlessly. It’s important to remember this is a 230V pump, requiring appropriate electrical service. As with many direct-to-consumer pumps, a minority of units may have early issues, underscoring the importance of testing before final installation.
Why it’s great
- Exceptional head and flow specs for a mid-range pump
- Robust all-stainless-steel construction with IP68 rating
- Includes built-in motor protection against overheating
- Strong performance feedback for irrigation and deep wells
Good to know
- Requires a 230V power supply, not a standard 115V outlet
- Quality control can be inconsistent; pre-installation testing is advised
- Heavier than some comparable 1 HP models
2. Red Lion RL22G10-3W2V 4-inch Submersible Pump
The Red Lion represents the trusted, brand-name tier in the well pump market. It comes with a substantial 3-year manufacturer’s warranty and is NSF/ANSI 372 certified for potable water, giving extra peace of mind for household drinking water. This is a complete kit, including a UL-listed external control box and a full splice kit for a professional-grade installation.
With a 260-foot shut-off head and a rated flow of 22 GPM, it’s designed as a reliable workhorse for residential wells. The design uses a stainless steel housing with a thermoplastic discharge and includes a built-in check valve and suction screen. As a 3-wire, 230V pump, it relies on the external control box for start-up and overload protection, which can be easier to service than integrated systems.
Long-term user reviews are telling, with many reporting a decade or more of reliable service, particularly for irrigation and standard household use. While its initial cost is higher, this investment is often justified by its proven durability, strong warranty, and the inclusion of all necessary components in the box.
Why it’s great
- Industry-respected brand with a strong 3-year warranty
- NSF certification for safe potable water use
- Complete kit includes control box and splice kit
- Numerous reports of very long service life (10+ years)
Good to know
- Commands a premium price point
- Flow rate (22 GPM) is lower than some 1 HP competitors
- Being a 3-wire pump requires installing the separate control box
3. Hallmark Industries Deep Well Pump, 1HP, 230V
Hallmark Industries has carved out a reputation for offering robust performance at an accessible price point. This 230V model is a “2-wire” pump with a built-in start capacitor, meaning it does not require an external control box. This simplifies installation and reduces points of failure. Its 207-foot head and 33 GPM rating make it a potent option for many residential deep wells.
The pump features a solid stainless steel body, a heavy-duty thermoplastic discharge, and built-in thermal protection. It’s an industrial-grade design packaged for home use. Users consistently praise its surprising power and output, often comparing its performance favorably to pumps costing significantly more.
It’s important to note some users have reported that the supplied ground wire is quite thin, and many recommend upgrading it during installation for optimal safety. Longevity reports are mixed, with many users celebrating years of service, while others have experienced premature failures, highlighting the variance that can occur in this value segment.
Why it’s great
- Excellent performance-to-cost ratio with strong head and flow
- Simplified installation with no external control box required
- Heavy-duty stainless steel construction inspires confidence
- Well-established brand with many positive long-term use cases
Good to know
- The included ground wire is considered undersized by many installers
- Durability can be inconsistent; some units fail early
- Only a 1-year manufacturer warranty
4. WASSERMANN 4″ Deep Well Pump, 1HP, 115V
For situations where 230V power isn’t available or practical, a high-performance 115V pump is essential. The WASSERMANN 115V model delivers impressive specs in this category, with a 196-foot head and a notable 34 GPM maximum flow. This makes it suitable for a wide range of standard-depth wells where high-volume water delivery is needed from a standard household circuit.
It’s designed as a 2-wire pump with a built-in control box, offering the convenience of not needing an external unit. The construction boasts a stainless steel body and a SS304 pump head, and it includes a stainless steel filtration mesh. Users report that it is surprisingly quiet and delivers strong, consistent pressure that can rival some 230V pumps.
As with many pumps in this class, it’s crucial to install an additional check valve on the discharge line, as the built-in one may not be sufficient on its own. The included 10-foot cable is shorter than some competitors, so factor in the need for well wire splicing.
Why it’s great
- Top-tier flow rate for a 115V pump at 34 GPM
- Built-in control box simplifies the setup
- Users report quiet operation and strong pressure
- Good fit for homes without 230V service at the wellhead
Good to know
- Maximum head (196 ft) is lower than some 230V options
- Requires installation of an additional check valve for best results
- Shorter power cable (10 ft) than many models

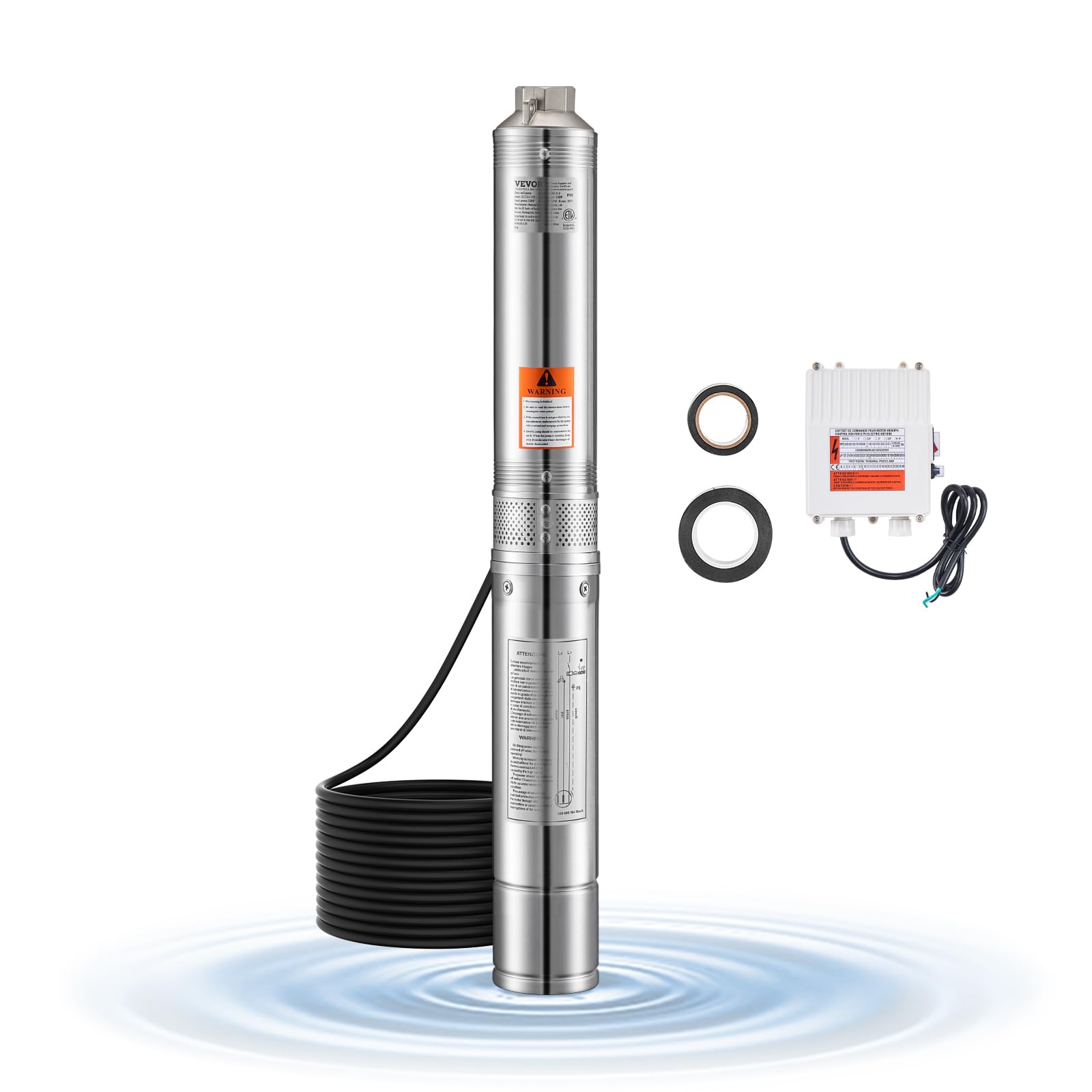

5. VEVOR 1 HP w/ External Control Box, 230V
This VEVOR model offers a balanced package for those who prefer or require an external control box. The included box houses the start capacitor and overload protection, which can be advantageous for troubleshooting and service—if the box fails, you replace a component above ground instead of pulling the pump. It delivers standard 1 HP performance with a 207-foot head and 31.7 GPM flow.
The pump itself features a copper motor and a stainless steel construction with an IP68 rating. The external control box design typically allows for a slightly more compact pump body. It’s presented as a complete, ready-to-install solution for 230V systems needing reliable water for irrigation, livestock, or home use.
Feedback indicates that when it works, it performs well. However, there are reports of inconsistent quality, with some units failing shortly after installation. This underscores the importance of sourcing from a seller with a reliable return policy and testing the pump thoroughly before committing to the final, deep-well installation.
Why it’s great
- Convenient all-in-one package with external control box
- Serviceable design; control components are accessible
- Solid 1 HP performance specs for residential use
- Corrosion-resistant stainless steel build
Good to know
- Quality control issues have been reported with early failures
- External box requires mounting in a dry, protected location
- Customer service experiences can vary
6. PUMPMAN 1 HP Deep Well Pump, 110V, 246 ft Head
The PUMPMAN pump addresses a specific need: a deep well that requires high lift but only has 115V power available. Its standout feature is a remarkable 246-foot maximum head, which is exceptional for a 115V unit. This is achieved through a 7-stage impeller design that builds pressure progressively. The flow rate is a respectable 26.4 GPM.
It includes a built-in control box and comes with a thorough installation kit containing heat shrink tubing and adhesive. The stainless steel casing and filter are designed for durability. For off-grid setups, remote cabins, or wells where running 230V service is prohibitively expensive, this pump presents a compelling technical solution.
Users with deep, 115V applications report strong performance. However, the long-term durability track record is still being established, and there are isolated reports of premature failure. As always with a critical component, ensuring you have warranty protection is advised.
Why it’s great
- Unusually high head capacity for a 115V/110V pump
- Multi-stage impeller design optimized for pressure
- Comes with a comprehensive splice kit for installation
- Solves deep-well problems without 230V wiring
Good to know
- Flow rate is lower than some 115V models with less head
- Some warranty claim experiences have been problematic
- A newer brand with a less established long-term reputation
7. Hallmark Industries Well Pump, 1HP, 110V, 3.8″
This Hallmark model is the 115V sibling to our #3 pick and shares its value-oriented, no-control-box design. Its key differentiator is a slightly slimmer 3.8-inch diameter, which can be crucial for fitting into older or tighter 4-inch well casings where every fraction of an inch matters. It maintains strong performance with a 207-foot head and 33 GPM flow.
The construction is stainless steel with thermoplastic components and includes built-in thermal protection. It comes with a short section of lead wire, a splice kit, and a manual. This pump has a particularly strong following among DIY well owners and farmers, with many detailed accounts of it powering entire households and livestock watering systems for years.
The common critique, again, is the thin gauge of the supplied ground wire. Many experienced installers immediately replace it. There are also occasional mentions of the pump being prone to air locking if the system is drained, requiring manual priming.
Why it’s great
- Slimmer 3.8″ design fits restrictive casings
- Proven reliable in numerous long-term user installations
- No external control box needed for easy setup
- Capable of running on a sufficiently sized generator
Good to know
- Supplied ground wire is undersized; upgrade recommended
- Can be susceptible to air locking in some system configurations
- Lead wires are short, requiring splicing to well wire
8. WASSERMANN 4″ Deep Well Pump, 1HP, 230V
This is the 230V counterpart to the WASSERMANN 115V model reviewed earlier. It offers similar convenience with a built-in control box and a focus on quality materials, including an SS304 stainless steel pump head. Its specs are well-suited for standard deep well applications, with a 190-foot head and 33 GPM flow.
Users who have installed it successfully praise its solid construction and performance, often noting it as an incredible deal compared to big-box store pricing. It’s marketed for a wide range of uses, from farmland irrigation to residential water supply and fountain applications.
A critical point from user feedback is that the built-in check valve may not be fully reliable on its own. Nearly every review that mentions installation strongly advises adding a separate, high-quality brass check valve on the discharge line to prevent backflow and ensure proper operation.
Why it’s great
- Convenient 2-wire design with integrated control
- High-quality stainless steel construction (SS304)
- Well-regarded for agricultural and irrigation use
- Strong value proposition for a 230V pump
Good to know
- The built-in check valve is not sufficient; an external one is mandatory
- Some units have been delivered with incorrect plugs (120V on a 230V pump)
- Instructions can be vague, assuming some prior installation knowledge
9. VEVOR 1 HP w/ External Control Box, 115V
This model is essentially the 115V version of the VEVOR pump with an external control box (#5). It offers the same complete-package appeal for households or setups that operate on standard 115V power. With a 207-foot head and 31.7 GPM, it provides robust performance for a 115V system, and the external box allows for easy component servicing.
The specifications highlight a copper wire motor, IP68 waterproof rating, and stainless steel construction. It’s designed as a versatile solution for irrigation, livestock, and home water supply where 230V is not an option. The inclusion of the control box in the package ensures you have all the essential electrical components.
User feedback for this specific model is limited but mirrors the experiences with its 230V sibling: when it works, it performs adequately, but thereare concerns about quality control and longevity.” The pros and cons will mirror the 230V version but note the 115V advantage.
Why it’s great
- Complete 115V solution with external control box included
- Good head and flow for a wide range of residential wells
- Serviceable design with accessible control components
- Built with corrosion-resistant materials
Good to know
- Shares the quality control variability reported in other VEVOR models
- External box must be installed in a suitable dry location
- Less long-term user data available for this specific 115V variant
10. iMeshbean Deep Well Submersible Pump, 1 hp, 115V
Positioned as an entry-level deep well pump, the iMeshbean offers core 1 HP functionality with a stainless steel body and a 33-foot power cord for easier connection. Its specifications—33 GPM flow and 207 feet of head—are competitive on paper, and it includes built-in thermal and overload protection. This makes it a candidate for those needing basic water extraction from wells, canals, or reservoirs on a tight budget.
The pump is advertised with a built-in control box and check valve, though the manufacturer recommends installing an additional check valve. Users have found it effective for tasks like pumping from ponds for garden irrigation or as a temporary solution during property refurbishment, appreciating its straightforward operation when it functions correctly.
Feedback reveals a clear divide: some users report satisfactory performance for light to moderate use, while others have experienced very short lifespans or immediate failures. This variability is characteristic of the budget segment and highlights the gamble involved—it might serve well for a season or several years, but predictability is low.
Why it’s great
- Most accessible entry point for a 1 HP deep well pump
- Includes a lengthy power cord for convenient hookup
- Specifications are solid for the price tier
- Suitable for non-critical irrigation and transfer applications
Good to know
- Durability and reliability are significant concerns
- Lacks the robust construction and warranty of higher-tier models
- Best viewed as a temporary or backup solution, not a primary home water source
11. WAYNE WaterBUG 1/6 HP Submersible Pump
It’s crucial to understand that the Wayne WaterBUG is not a deep well pump for supplying a home. It’s a superb utility pump designed for water removal and transfer. With only 1/6 HP, it excels at draining flooded basements, window wells, pools, or ponds, removing water down to a very low 1/16 of an inch. Its Multi-Flo Technology allows you to choose between top discharge for tight spaces and side discharge for open areas.
This pump is a champion of convenience and versatility for above-ground water problems. It’s lightweight, portable, and relatively quiet. The corrosion-resistant brass discharge outlets accept a standard garden hose. For homeowners, it’s an invaluable tool for managing flooding, seasonal drainage, or pool maintenance, but it cannot generate the pressure or sustained flow required for a well system.
User reviews are overwhelmingly positive for its intended purpose, with many calling it a “lifesaver” during floods. The primary caution is that it lacks an automatic shut-off and will burn out if allowed to run dry, so it requires monitoring. It’s included here to clearly differentiate it from the high-pressure, high-lift pumps needed for wells.
Why it’s great
- Unbeatable for draining and water transfer tasks
- Dual discharge options provide incredible versatility
- Pumps water down to an extremely low level
- Reliable brand with strong user satisfaction for this use case
Good to know
- NOT designed for deep well residential water supply
- Requires manual monitoring to prevent dry running
- Lower horsepower and head than any true well pump
Understanding the Specs
Head (Feet)
This is the maximum height a pump can vertically lift water. It’s not just your well depth. You must add the vertical distance from the pump to your pressure tank plus friction loss in the piping. Always choose a pump with a maximum head rating 20-30% higher than your calculated “Total Dynamic Head” for efficient, long-lasting operation.
Flow Rate (GPM)
Gallons Per Minute measures how much water the pump can deliver. A typical house needs 5-12 GPM. Higher GPM is needed for irrigation or multiple simultaneous uses. Remember, a pump’s GPM decreases as the operating head (depth it’s pumping from) increases. Check the performance curve to see the expected flow at your specific well depth.
2-Wire vs. 3-Wire
A 2-wire pump has the start capacitor and overload protection built into the motor housing. It requires only two power wires and a ground. A 3-wire pump has these components in an external control box above ground, requiring three wires plus a ground down the well. 2-wire pumps are simpler to install; 3-wire pumps allow easier servicing of the control components.
Voltage (115V vs. 230V)
115V (110V/120V) pumps can often run on a dedicated household circuit or a generator, useful for remote locations. 230V (220V/240V) pumps are standard for most home well systems. They draw lower amperage, which reduces voltage drop over long wire runs from your electrical panel, making them more efficient for deep wells and continuous operation.
FAQ
What is the main difference between a utility pump and a deep well pump?
How long should a 1 HP submersible well pump last?
Final Thoughts: The Verdict
For most people seeking a powerful, reliable best 1 hp submersible well pump without a premium price tag, the winner is the VEVOR 1.5HP 230V because it delivers exceptional head and flow from a robust stainless steel build. If you want proven, long-term reliability and NSF certification for your drinking water, invest in the Red Lion RL22G10. And for outstanding value in a simple, no-control-box design, nothing beats the Hallmark Industries 1HP 230V pump.
